Darkfield microscopy is an illumination technique used to enhance the contrast of unstained, transparent specimens. Using oblique illumination, it blocks direct light so that only scattered, diffracted, or refracted light enters the microscope objective. This results in a brightly lit specimen superimposed on a dark background.
This high degree of contrast makes samples with difficult backgrounds stand out with relatively little effort, making it an invaluable tool for observing specimens that are not imaged well under normal illumination conditions.
How Does Darkfield Microscopy Work?
Darkfield microscopy works by blocking central light and directing oblique illumination onto the sample. Because the direct light is blocked by an opaque stop in the condenser, only scattered, diffracted, or refracted light enters the objective lens, creating a bright specimen on a dark background.
Here’s a closer look at the process:
- Blocked central light: An opaque stop blocks the light that ordinarily passes directly through and around the specimen.

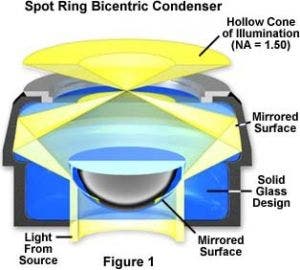

- Oblique illumination: The top lens of a simple Abbe darkfield condenser is spherically concave. This allows light rays emerging from the surface to form an inverted hollow cone of light focused on the specimen plane.
- Scattered light enters the objective: When a specimen is placed on the slide, the oblique rays interact with it. Elements in the sample (like cell membranes or internal organelles) diffract, reflect, and refract the light into the objective.
- Dark background: In areas where there is no sample, the oblique rays cross each other and miss the objective entirely, leaving those areas completely dark.
What Is Darkfield Microscopy Used For?
Darkfield microscopy is primarily used for observing transparent or unstained specimens that lack sufficient contrast in standard brightfield imaging. It’s highly effective for revealing outlines, edges, boundaries, and refractive index gradients.
Common applications include:
- Biological samples: Live aquatic organisms, bacteria, yeast, protozoa, and cells in tissue culture.
- Structural details: Edges, boundaries, and surface features like hair and fibers.
- Non-biological specimens: Mineral and chemical crystals, colloidal particles, dust-count specimens, and thin sections of polymers and ceramics containing small inclusions or porosity differences.

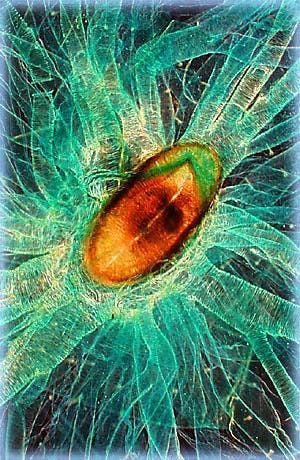

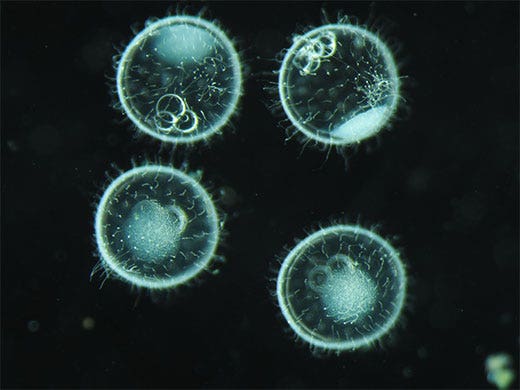

Darkfield Image Examples
In general, objects imaged under the proper conditions of darkfield illumination are spectacular to see. Here are some stunning examples of specimens captured using darkfield imaging:
Butterfly wing scales

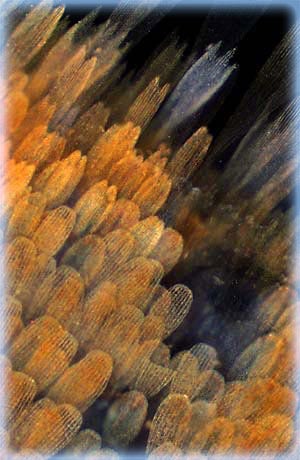

Darkfield image showing the miniature scales that decorate most of a butterfly wing’s surface. The wing scales were illuminated with a darkfield substage condenser and captured at low magnification (50X).

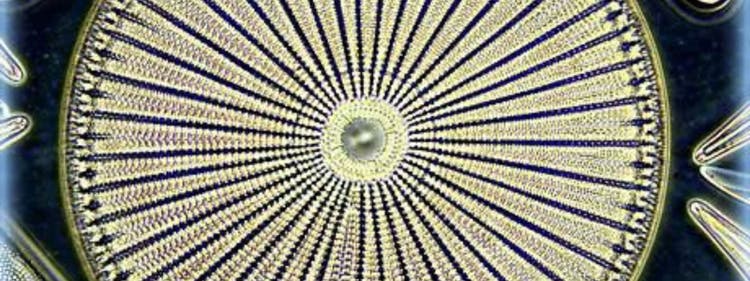

Diatoms

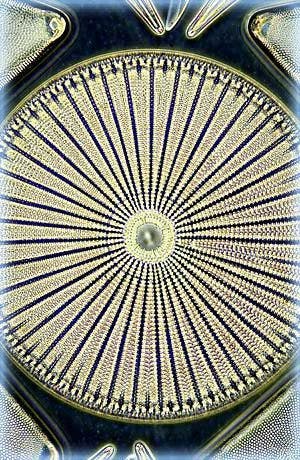

Darkfield image of the diatom Arachnoidiscus ehrenbergi captured on an Evident microscope by Mortimer Abramowitz. The specimen was illuminated with a high NA darkfield condenser with immersion oil placed between the microscope slide and the objective and condenser front lenses.
Liquid crystalline DNA

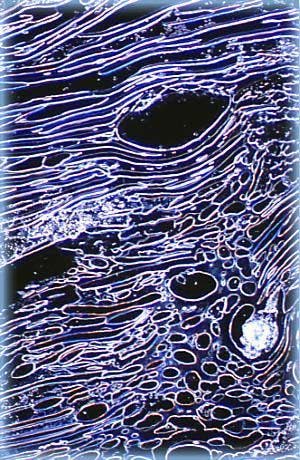

Darkfield image of liquid crystalline DNA. This highly concentrated DNA solution has undergone a series of liquid crystalline phase transitions to form a densely packed hexagonal phase. Captured using a compound optical microscope with a 10X objective.
Aluminum–silicon alloy

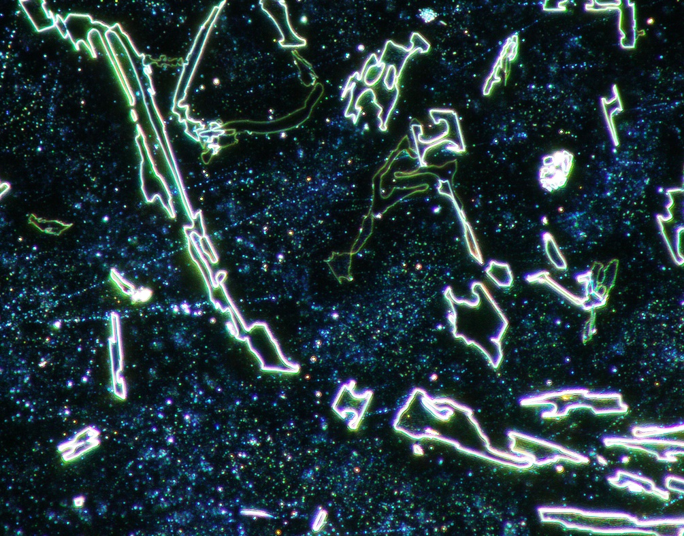

Darkfield image of a polished aluminum–silicon alloy captured with the GX53 metallurgical microscope.
Darkfield vs. Brightfield Microscopy
Understanding the differences between darkfield and brightfield microscopy can help you choose the right technique for your sample. Here’s a quick comparison guide:
Advantages and Disadvantages of Darkfield Microscopy
While darkfield illumination produces spectacular images, it is important to weigh its pros and cons.
Advantages
- High contrast: Offers a high degree of contrast, making it easy to see samples on difficult backgrounds.
- Ideal for low-contrast transparent specimens: Perfect for subjects that are nearly invisible in brightfield.
- Minimal staining: Allows for the observation of specimens without the need for complex staining procedures.
- Useful for live specimens: Because staining isn't required, live aquatic organisms and cells can be observed in their natural state.
- Visually striking images: Produces images that often look like works of art.
Disadvantages
- Limited internal detail: Less useful for revealing the internal details of a specimen.
- Sensitive to debris and contamination: Every piece of dust or debris on the slide will be illuminated, which can degrade the image.
- Requires alignment: The condenser must be perfectly aligned and focused to avoid uneven lighting or dark spots in the center of the field of view.
- Can be dim: Requires a significant amount of light because much of it is blocked to form the illumination cone.
- Objective limitations: Not all objectives are suitable, especially if using condenser inserts that don't offer a high enough numerical aperture (NA).
Does Darkfield Microscopy Require Staining?
No, darkfield microscopy often doesn’t require staining. It is especially useful for observing transparent, unstained, or low-contrast specimens that are difficult to see under normal brightfield conditions. In fact, avoiding stains allows researchers to view live specimens, such as aquatic organisms and cell cultures, without altering their natural state. However, stained specimens (like basswood sections) can also be excellent candidates, yielding beautiful, colorful images.

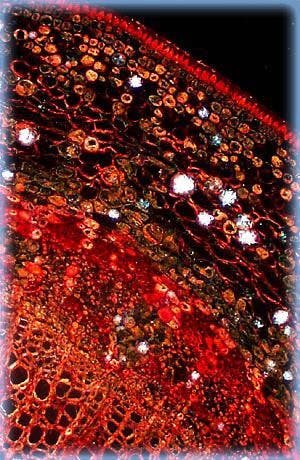

Darkfield image of a stained thin section of a basswood tree.
What Equipment Is Needed for Darkfield Microscopy?
Almost any brightfield laboratory microscope can be easily converted to perform darkfield illumination. The essential equipment includes:
- Brightfield microscope compatibility: A standard lab microscope that can accept darkfield components.
- Darkfield condenser or stop/insert: A dedicated darkfield condenser offers the high NA required. Alternatively, condenser inserts can create the necessary cone of illumination, offering flexibility for multiple observation methods.
- Objective compatibility: Objective lenses must match the numerical aperture capabilities of your condenser setup.
- Illumination source: A strong light source is required to compensate for the blocked central light.
- Condenser alignment tools: Necessary for centering the condenser to ensure even illumination.
- Clean slide and optics: Clean slides are critical, as any debris will scatter light and reduce image quality.
How to Set Up Darkfield Microscopy
Setting up your microscope for darkfield imaging is a straightforward process. Follow these steps for optimal results:
- Install darkfield condenser or stop: Switch out your current condenser with a dedicated darkfield condenser, or insert a darkfield stop into your existing compatible condenser.
- Place and prepare specimen: Ensure your slide and cover slip are clean, then place your specimen on the stage.
- Align and focus condenser: Center and focus the condenser properly. If you see a dark spot in the center of your field of view, the condenser is likely misaligned.
- Use a compatible objective: Select an objective lens with an appropriate numerical aperture for your darkfield condenser.
- Increase illumination: Turn up the power on your light source. Darkfield requires more light than brightfield because the central rays are blocked. Note: be mindful of live samples that may be sensitive to prolonged intense light.
For expert guidance on setting up a darkfield-compatible microscope for your specific imaging application, reach out to the Evident team today.
