Chart Comparison Solutions

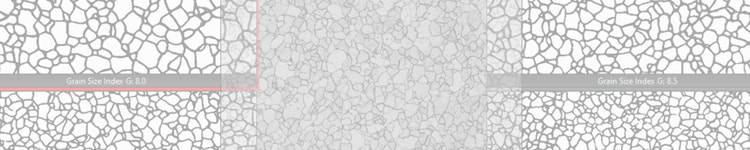

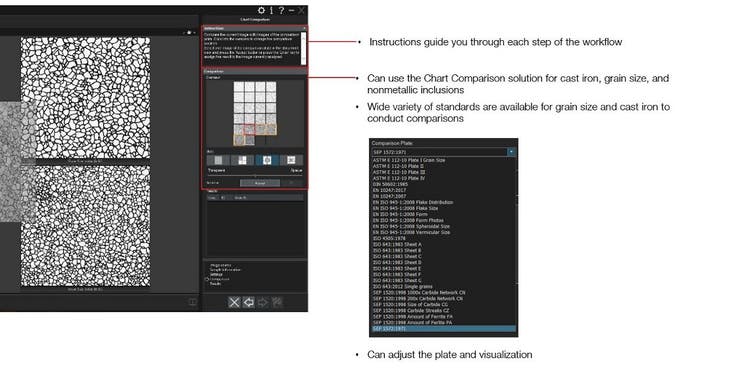

The Chart Comparison solution in our image analysis software has an easy-to-use workflow that enables inspectors to quickly compare metal structure samples with standard diagrams used in different industrial standards.

The hardware and software synchronize so you always know that the correct magnification is being used for the image comparison.

Measurement procedure:

• Select an image (live or stored image)
• Select the chart navigator
• Select the corresponding chart manually
• The software averages the selected values and gives a unique value
• The software automatically corrects for the difference in magnification
• The precision of the method is (+/- 1G)
