Particle Distribution Solutions

In many manufacturing processes, such as additive manufacturing, powder atomization, sintering, and powder metallurgy, a reliable analysis on powder particles is a crucial quality assurance step before starting the manufacturing process.

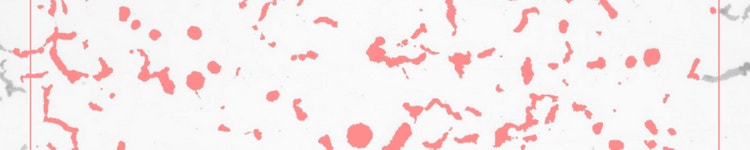

Our image analysis software offers a workflow for threshold-based detection and classification of individual particles with the creation of user-defined histograms. The analysis provides morphological information, such as area, perimeter, shape factor, and the minimum and maximum ferret diameter. The result also contains a distribution diagram.

Measurement procedure:

• Select an image (live or already recorded)
• Select the region of interest (ROI) for analysis

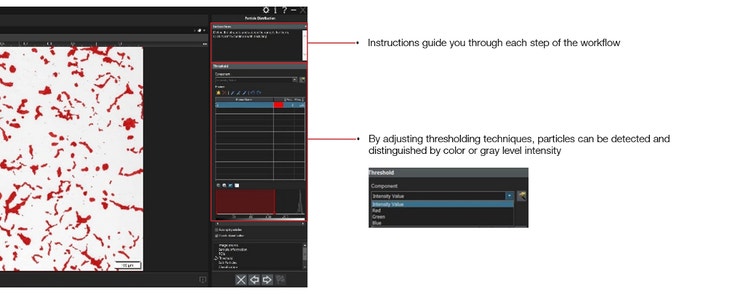

• Can edit the threshold for particle detection (in this step, you can define several particle classifications)

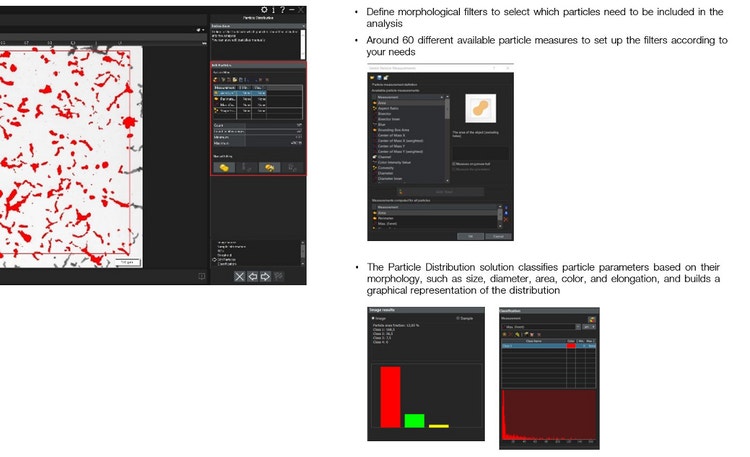

• Can adjust the particle filter based on the different morphological parameters
