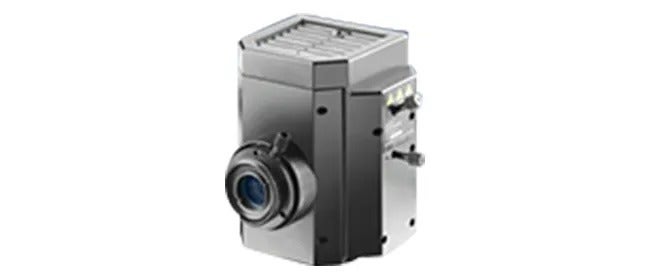

U-LH100HG Fluorescence Light Source
The U-LH100HG fluorescence light source is a powerful yet cost-effective solution designed for entry-level imaging applications. Featuring a broad emission spectrum, this 100 W mercury light source enables researchers to use all common fluorophores for a wide range of fluorescence imaging experiments.
U-LH100HG
Fluorescence Light Source
Overview
The Olympus Mercury light source is a cost-effective and powerful entry-level 100 W fluorescence light source. The broad emission spectrum enables a range of fluorescence imaging experiments to be conducted using all common fluorophores.
Entry-level Fluorescence Excitation Light Source
This 100 W Mercury burner represents a cost-effective and powerful entry-level light source.
Applicable for All Common Fluorophores
The broad emission spectrum enables experimental freedom, and all common fluorophores can be used.
Specifications
| Lamp | 100 W Mercury discharge burner |
| Lamp Life Time | Approx. 200 h |
| Lamp Centration | Up/down, left/right, manual centering |
| Lamp Focusing | Moving burner or collector lens |
| Power Supply | External |
| Dimensions | 185 (W) x 180 (D) x 190 (H) mm |
| Weight | Approx. 3 kg |
| Operating Environment | Indoor use |
| Ambient temperature: 5 º to 40 ºC (41 º to 104 ºF) | |
| Maximum relative humidity: 80 % for temperatures up to 31 º C (88 ºF), decreasing linearly through 70 % at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50 % relative humidity at 40 ºC (104 ºF) | |
| Supply voltage fluctuations: Not to exceed ±10 % of the normal voltage |
