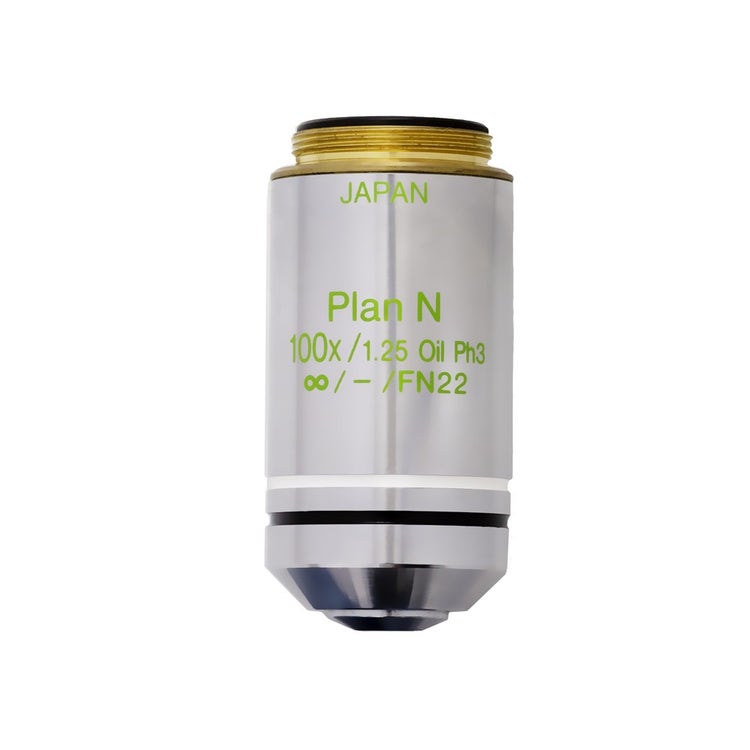

100X Objective NA 1.25 FN 22.0 WD 0.15 mm

PLN100XOPH; PLAN ACHROMAT 100X OBJ, Ph3, NA 1.25, WD 0.15mm

• Numerical Aperture (NA): 1.25
• Working Distance (WD) [mm]: 0.15
• Objective Field Number: 22
• Coverglass Thickness [mm]: -
• Immersion Medium: Normal Oil
• Correction Collar: N/A
• Objective Type: Achromat
• Parfocal Distance [mm]: 45
• Back Focal Plane (BFP) Position [mm]: -5.6
• Mounting Threads: W20.32X0.706(RMS)
• Reflected Brightfield (BF): N/A
• Transmitted Brightfield (BF): Limitation
• Reflected Darkfield (DF): N/A
• Transmitted Darkfield (DF): N/A
• Reflected DIC (Visible): N/A
• Transmitted DIC (Visible): N/A
• Polarization (PO): Limitation
• Fluorescence (B & G excitation): Limitation
• Fluorescence (UV excitation : 365nm): N/A
• Multi photon excitation (MPE): N/A
• Compatible for Autofocus: N/A
• IR Through Si or Glass: N/A
• TIRF (Total Internal Reflection Fluorescence): N/A
• WLI (White Light Interferometry): N/A
• 340nm Transmittance: N/A
• 700-1000nm Transmittance: N/A
• 1000-1300nm Transmittance: N/A
• Magnification: 100
• Relief Contrast (RC): N/A
• Phase Contrast (PH): Good
• With Coverglass: Yes
• Variable Coverglass: N/A
• Without Coverglass: Yes
