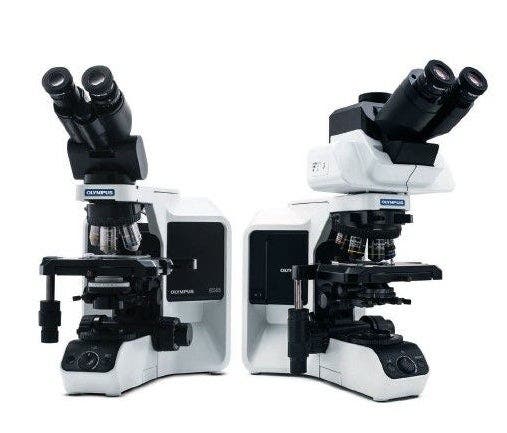

BX43 Upright Microscope
The BX43 upright microscope suits a variety of observation needs in one cost-effective and high-performance system. Modular components enable you to customize the microscope for brightfield, polarization, phase contrast, and fluorescence. Adapt the system with observation tubes, stages, objectives, and more to tailor it to your application.
BX43 Manual System Microscope
High Performance in a Cost-Effective System
The modular BX43 microscope enables you to choose between cost-efficient and advanced configurations, depending on your needs. Modular components, such as ergonomic observation tubes and stages, make it simple to customize your microscope to your application.
High Color Rendering White LED
With luminosity equivalent to a 30 W halogen lamp, this long-lasting LED provides a consistent color temperature at any brightness level with an estimated 20,000-hour lifetime.
https://adobeassets.evidentscientific.com/content/dam/video/video/library/bx43_bx53_ttr-video_en.mp4
Immersive Views, Enhanced Decisions
Fully explore routine pathology samples in a more immersive view that supports efficient evaluations and decisions with an upgraded FN26.5 ocular.
See More, Work Faster
See 31% more of your sample at once with the unmatched field of view on our FN26.5 ocular. This wider view—with the same optical quality as the standard FN22—reduces the hand movements needed to adjust the slide and fully explore your sample, supporting faster analyses and decisions.
An Immersive View
Fully explore your sample in a more natural and immersive view. A wider view enables natural eye movement as you navigate through the slide, improving comfort and efficiency during routine work.
Read the Application Note to Learn More
Want to upgrade your microscope? Contact your Evident representative today
Maintain Brightness when Changing Magnifications
The light intensity manager eliminates the step of having to adjust the brightness when changing magnification, helping you complete your work faster and with less eye strain.

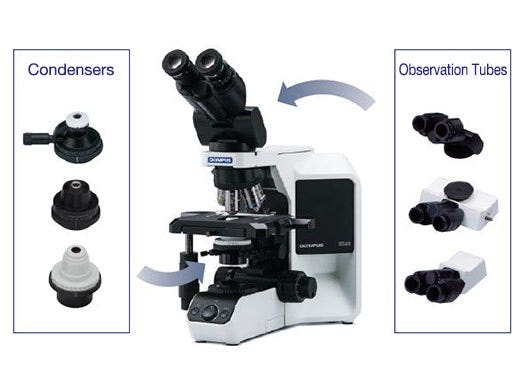

Customizable for Different Observation Styles
Modular units enable you to customize your microscope for brightfield, polarization, phase contrast, and fluorescence. Modular options include:
- Condensers
- Observation Tubes
- Nosepieces
- Stages
- Objectives
- Intermediate optics
Observe Cellular Tissue
The LPLN40X objective enables you to image thick, clear samples at 40X magnification. The objective’s correction collar makes it easy to adjust for the spherical aberration caused by differences in cover glass thickness to get clear images.
Applied Technologies

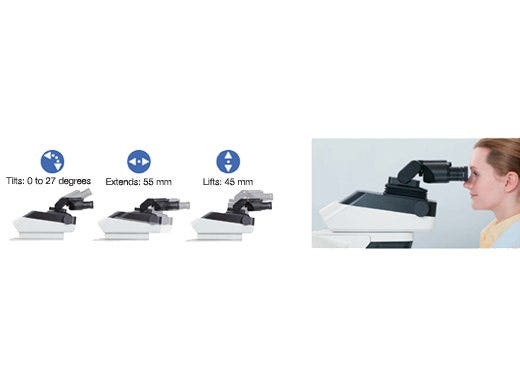

Stay Comfortable with the Ergonomic Tube
The tube moves up and down, tilts, and extends forward and back. With this one component, users of nearly any height can adjust the scope so that they’re comfortable.

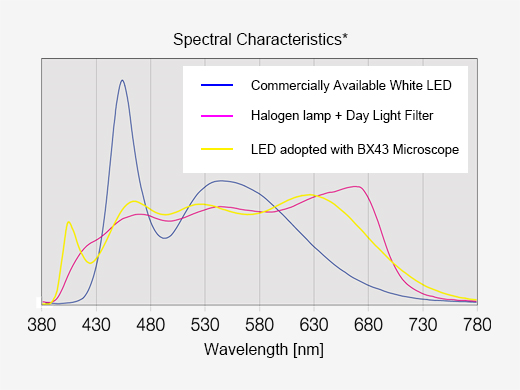

*This graph shows the spectral characteristics of each light source. It does not compare the strength of light for each light source.
LED Made for Clinical Research Applications
The LED’s color rendering index is similar to a halogen bulb with a daylight filter. Stains look the same as if you were using a traditional daylight filtered halogen lamp and similar colors can be differentiated. Unlike a halogen light source, the LED has an estimated 20,000-hour lifetime.
Condensers for Clinical Research Brightfield Applications
For clinical research where brightfield observation of stained specimens, such as HE-stained tissue, is common, we offer condensers with white tops, enabling you to easily position slides by eye. Condensers for darkfield, phase contrast, and low-magnification observations are available.

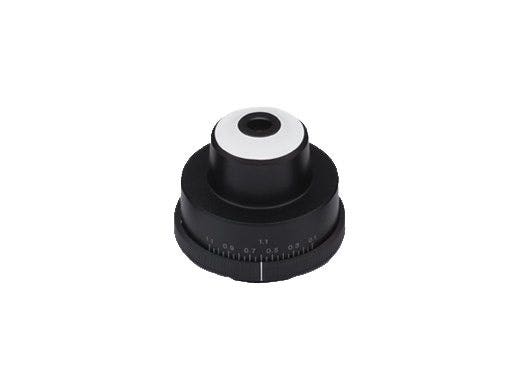

Abbe condenser (4X to 100X magnification)

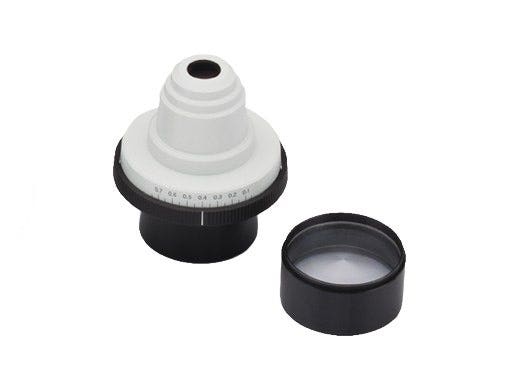

Low-magnification condenser (2X to 100X magnification)

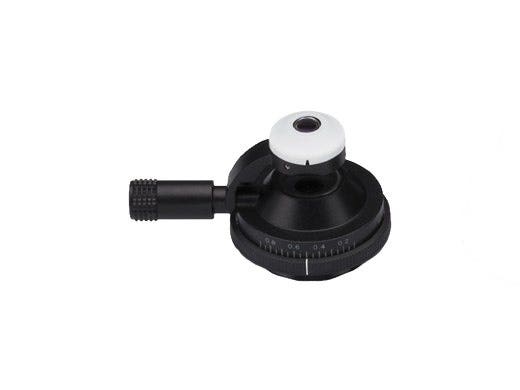

Swing-out condenser (1.25X to 100X magnification)

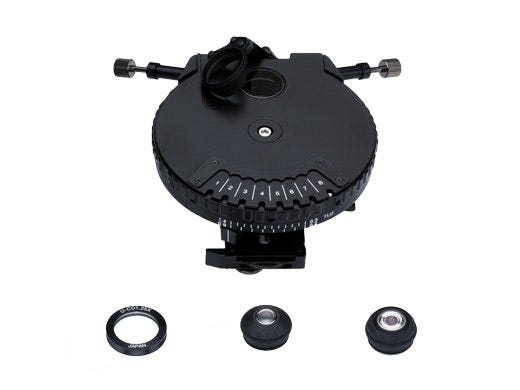

8-position, universal condenser enables brightfield, phase contrast, darkfield, polarized light, and DIC observations
Specifications
| Observation Method | Brightfield | ✓ | |
| Darkfield | ✓ | ||
| Phase Contrast | ✓ | ||
| Fluorescence (Blue/Green Excitations) | ✓ | ||
| Fluorescence (Ultraviolet Excitations) | ✓ | ||
| Differential Interference Contrast | ✓ | ||
| Simple Polarized Light | ✓ | ||
| Illuminator | Transmitted Köhler Illuminator | LED Lamp | ✓ |
| Fluorescence Illuminator | 100 W Mercury Lamp | ✓ | |
| Light Guide Illumination | ✓ | ||
| Focus | Focusing Mechanism | Stage Focus | ✓ |
| Intermediate Magnification Changer | Manual Terret | ✓ | |
| Revolving Nosepiece | Manual | Coded (7 positions) | ✓ |
| Standard (7 positions) | ✓ | ||
| Stage | Manual | Manual Stages with Right-Hand Control | X: 76 mm (3 in.), Y: 52 mm (2 in.) |
| Mechanical | Oil Rectangular Stage with Right-Hand Control | X: 76 mm (3 in.), Y: 52 mm (2 in.) | |
| Plain Stage | Dimensions: 180 mm × 150 mm (7 in. × 6 in.) | ||
| Rotatable Graduated Stage | Rotation: 360 degrees | ||
| Condenser | Manual | Universal Condenser (Phase/Darkfield/DIC) | NA 0.9/ W.D. 1.5 mm for 1.25X–100X [swing-out: 1.25X–4X, with oil top lens: (NA 1.4/ W.D. 0.63 mm)] |
| Swing-Out Condenser | NA 0.9/ W.D. 2 mm (1.25X–100X) | ||
| Achromatic/Aplanatic Condenser | NA 1.4/ W.D. 0.7 mm (oil) (10X–100X) | ||
| Darkfield Condenser Dry | NA 0.8–0.92/ W.D. 4.52 mm (10X–40X) | ||
| Darkfield Condenser Oil | NA 1.2–1.4/ W.D. 0.5 mm (20X–100X) | ||
| Low Magnification Condenser | NA 0.75/ W.D. 1.55 mm (2X–100X) | ||
| Abbe Condenser | NA 1.1/ W.D. 0.7 mm (oil) (4X–100X) | ||
| Phase Contrast Condenser | NA 1.1/ W.D. 0.7 mm (4X–100X) | ||
| Polarizing Condenser | NA 0.9/ W.D. 1.3 mm (slide glass 1.5 mm) (4X–100X) | ||
| Observation Tubes | Widefield (FN22) | Binocular | ✓ |
| Tilting Binocular | ✓ | ||
| Trinocular | ✓ | ||
| Tilting Trinocular (FN26.5 available when no intermediate tube is used) | ✓ | ||
| Ergonomic Tilting Binocular | ✓ | ||
| Tilting, Telescopic, Lifting Binocular | ✓ | ||
| Trinocular for Infrared | ✓ | ||
| Erected Trinocular | ✓ | ||
| Erected Ergonomic Tilting Binocular | ✓ | ||
| Super Widefield (FN26.5) | Trinocular | ✓ | |
| Erect Image Tilting Trinocular | ✓ | ||
| Dimensions (W × D × H) | 274.5 mm × 362 mm × 410 mm (10.8 in. × 14.3 in. × 16.1 in.) (Standard configuration) | ||
| Weight | 13.2 kg (29 lb) (Standard configuration) | ||
| Operating Environment | Indoor Use | Ambient Temperature | 5 °C–40 °C (41 °F–104 °F) |
| Maximum Relative Humidity | 80% for temperatures up to 31 ºC (88 ºF), decreasing linearly through 70% at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50% relative humidity at 40 ºC (104 ºF) | ||
| Supply Voltage Fluctuations | ±10 % | ||
