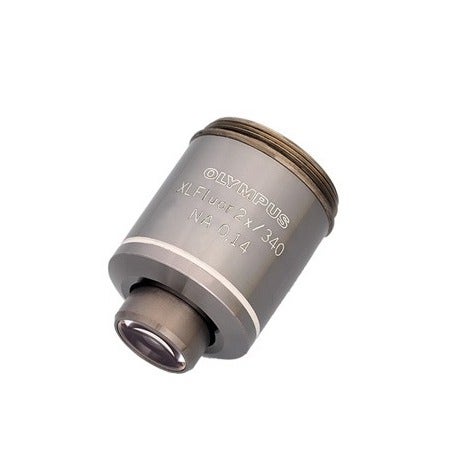

XLFLUOR2X/340

• Numerical Aperture (NA): 0.14
• Working Distance (WD) [mm]: 19.8 - 21.0
• Objective Field Number: 22
• Coverglass Thickness [mm]: -
• Immersion Medium: Air (Water: 0 - 5mm)
• Correction Collar: N/A
• Objective Type: Semi-apochromat (Fluorite)

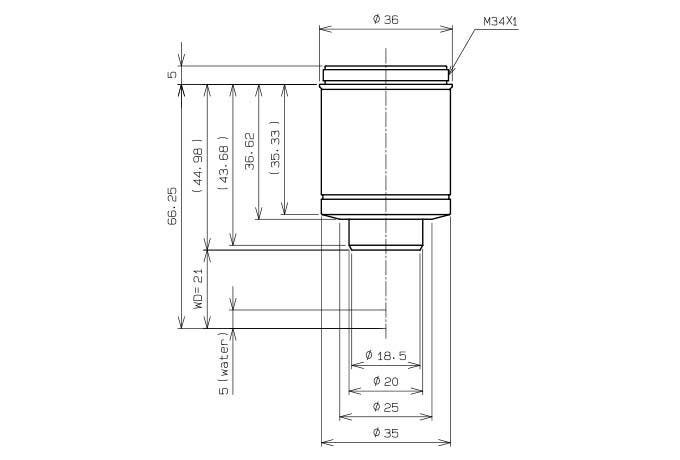

• Parfocal Distance [mm]: 65
• Back Focal Plane (BFP) Position [mm]: 35.6
• Mounting Threads: M34X1
• Reflected Brightfield (BF): N/A
• Transmitted Brightfield (BF): N/A
• Reflected Darkfield (DF): N/A
• Transmitted Darkfield (DF): N/A
• Reflected DIC (Visible): N/A
• Transmitted DIC (Visible): N/A
• Polarization (PO): N/A
• Fluorescence (B & G excitation): Excellent
• Fluorescence (UV excitation : 365nm): Excellent
• Multi photon excitation (MPE): N/A
• Compatible for Autofocus: N/A
• IR Through Si or Glass: N/A
• TIRF (Total Internal Reflection Fluorescence): N/A
• WLI (White Light Interferometry): N/A

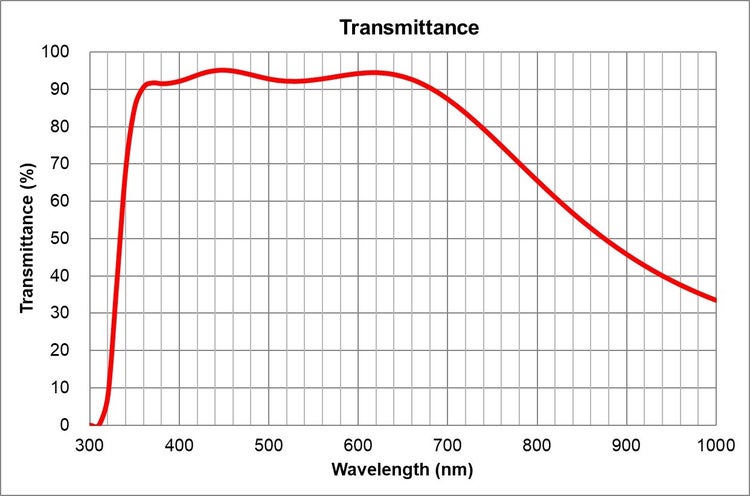

• 340nm Transmittance: Yes
• 700-1000nm Transmittance: Yes
• 1000-1300nm Transmittance: N/A
• Magnification: 2
• Relief Contrast (RC): N/A
• Phase Contrast (PH): N/A
• With Coverglass: Yes
• Variable Coverglass: N/A
• Without Coverglass: Yes
