100X objectif NA 1.3 FN 26.5 WD 0.2 mm

UPLFLN100XO2-2; U Plan Fluorite 1 00X Oil Objective, NA 1.30,WD 0.20MM

• Numerical Aperture (NA): 1.3
• Working Distance (WD) [mm]: 0.2
• Objective Field Number: 26.5
• Coverglass Thickness [mm]: 0.17
• Immersion Medium: Normal Oil
• Correction Collar: N/A
• Objective Type: Semi-apochromat (Fluorite)

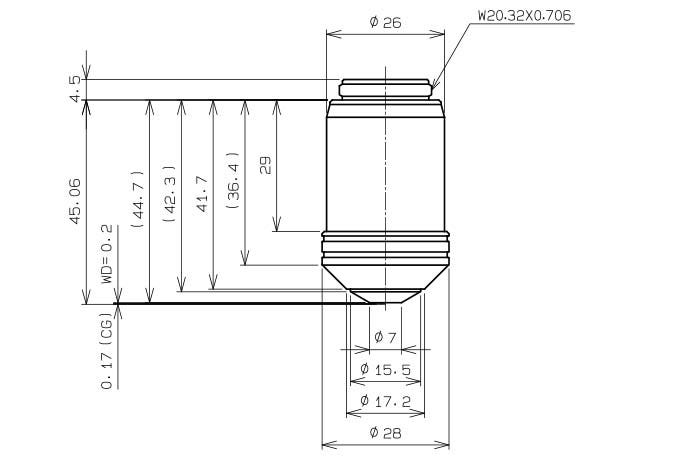

• Parfocal Distance [mm]: 45
• Back Focal Plane (BFP) Position [mm]: -19.1
• Mounting Threads: W20.32X0.706(RMS)
• Reflected Brightfield (BF): N/A
• Transmitted Brightfield (BF): Excellent
• Reflected Darkfield (DF): N/A
• Transmitted Darkfield (DF): N/A
• Reflected DIC (Visible): N/A
• Transmitted DIC (Visible): Excellent
• Polarization (PO): Good
• Fluorescence (B & G excitation): Excellent
• Fluorescence (UV excitation : 365nm): Excellent
• Multi photon excitation (MPE): N/A
• Compatible for Autofocus: Yes
• IR Through Si or Glass: N/A
• TIRF (Total Internal Reflection Fluorescence): N/A
• WLI (White Light Interferometry): N/A

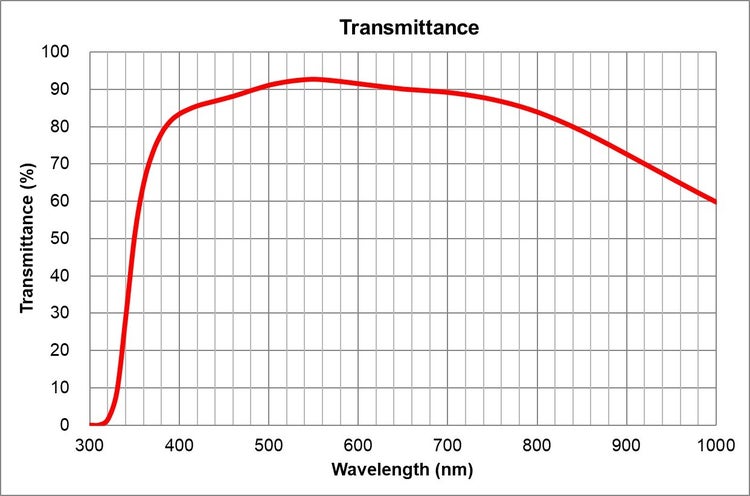

• 340nm Transmittance: Yes
• 700-1000nm Transmittance: Yes
• 1000-1300nm Transmittance: Yes
• Magnification: 100
• Relief Contrast (RC): N/A
• Phase Contrast (PH): N/A
• With Coverglass: Yes
• Variable Coverglass: N/A
• Without Coverglass: N/A
