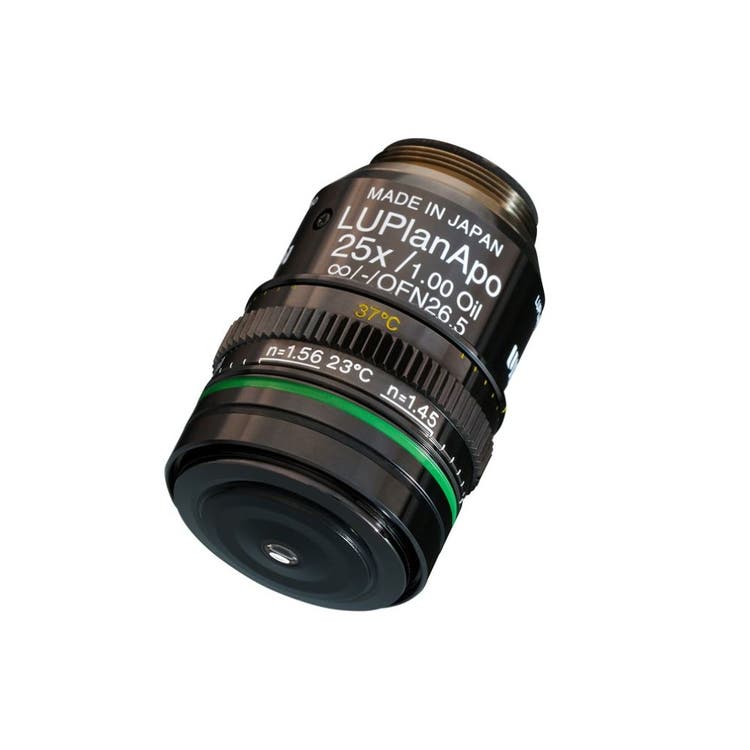

LUPLAPO25XO

• Numerical Aperture (NA): 1
• Working Distance (WD) [mm]: 1
• Objective Field Number: 26.5
• Coverglass Thickness [mm]: 0 - 1.00
• Immersion Medium: Normal Oil
• Correction Collar: Yes
• Objective Type: Apochromat
• Parfocal Distance [mm]: 45
• Back Focal Plane (BFP) Position [mm]: -25
• Mounting Threads: W20.32X0.706(RMS)
• Reflected Brightfield (BF): N/A
• Transmitted Brightfield (BF): Excellent
• Reflected Darkfield (DF): N/A
• Transmitted Darkfield (DF): Excellent
• Reflected DIC (Visible): N/A
• Transmitted DIC (Visible): Limitation
• Polarization (PO): Limitation
• Fluorescence (B & G excitation): Excellent
• Fluorescence (UV excitation : 365nm): Excellent
• Multi photon excitation (MPE): Good
• Compatible for Autofocus: N/A
• IR Through Si or Glass: N/A
• TIRF (Total Internal Reflection Fluorescence): N/A
• WLI (White Light Interferometry): N/A
• Magnification: 25
• Relief Contrast (RC): N/A
• Phase Contrast (PH): N/A
• Without Coverglass: N/A
