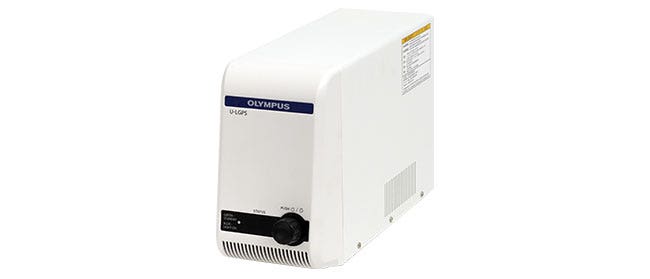

Generatore di luce per fluorescenza U-LGPS

Migliora il tuo imaging a fluorescenza mediante il nostro generatore di luce a alta luminosità U-LGPS. Utilizzando la tecnologia LED e LDP (laser diode pumped phosphor) allo stato solido, il generatore di luce U-LGPS assicura un'illuminazione precisa, riproducibile e efficiente.

Overview

Enhance your fluorescence imaging with our high-brightness U-LGPS light source. Using solid state LED and LDP (laser-diode-pumped phosphor) technology, the U-LGPS light source delivers accurate, reproducible, and efficient illumination.

Mercury-Free

To maintain proper illumination, the bulbs of mercury and metal halide light sources must be changed on a routine basis, involving costly mercury disposal procedures. The U-LGPS light source is mercury free, eliminating the inconveniences and costs associated with the disposal of bulbs containing mercury.

Mercury-Free

BPAE cells with MitoTracker Red CMXRos, Alexa Fluor 488 Phalloidin, and DAPI.

BPAE cells with MitoTracker Red CMXRos, Alexa Fluor 488 Phalloidin, and DAPI.

Perform Reliable and Efficient Experiments

When combined with an optimized microscope, the U-LGPS light source makes it possible to perform reliable experiments easily and efficiently:

  • Accurate data acquisition and processing due to uniform illumination
  • Illumination method through the liquid light guide minimizes equipment vibration and heat conduction, enabling stable experiments
  • Turns on and off rapidly
  • Reproducible and stable light intensity
  • Control through cellSens imaging software helps mitigate human error, and programmable experiments in combination with coded/motorized units improve efficiency

Increase Your Lab’s Equipment Uptime

Save on labor and costs and increase the uptime of your lab equipment thanks to the U-LGPS light source’s easy upkeep:

  • Free optical adjustment with precentered design
  • Long life of solid-state light source―more than 25,000 hours―nearly eliminates maintenance
  • Economical running costs due to lower power consumption

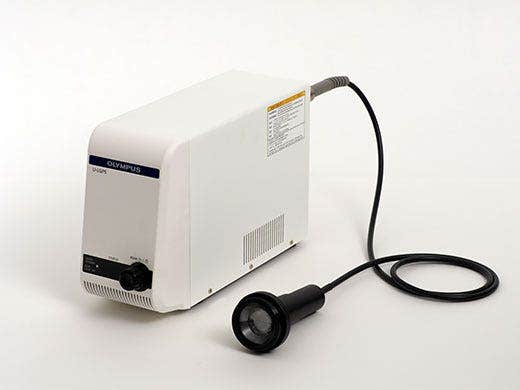

U-LGPS with liquid light guide

U-LGPS with liquid light guide

Specifications

Light emission type
LED, LDP (laser diode pumped phosphor)
Wavelength range
360 to 665 nm
Peak wavelength
367, 407, 436, 470, 550 nm
Power supply
AC 100–120 V/220–240 V, 50 Hz/60 Hz
Power consumption
180 W or less
Current consumption
2.2 A / 1.0 A
Response time
60 ms*
I/O connector
USB (B-type)
Dimension
120 (W) × 335 (D) × 214 (H) mm (excluding protrusions)
Weight
4.9 kg
Lifetime of light source
25,000 hours or more (nominal time)*
Compatible liquid light guide
U-LLG150, U-LLG300
Operating environment
Indoor use
Altitude: Max. 2000 meters
Ambient temperature: 5 to 40 °C (41 to 104 °F)
Relative humidity: Max 80% (31 °C (88 °F) or less) (without condensation)
When over 31 °C (88 °F), the relative humidity in operating environment is decreased linearly through 70% at 34 °C (93 °F), 60% at 37 °C (99 °F), and to 50% at 40 °C (104 °F).
Supply voltage fluctuation: ±10 %
Pollution degree 2 (in accordance with IEC60664-1)
Installation/Overvoltage category: II (in accordance with IEC60664-1)
Transport / Storage environment
Ambient temperature: −20 to 70 °C (−4 to 158 °F)
Relative humidity: 20 to 85% (without condensation)

*Condition specified by Olympus

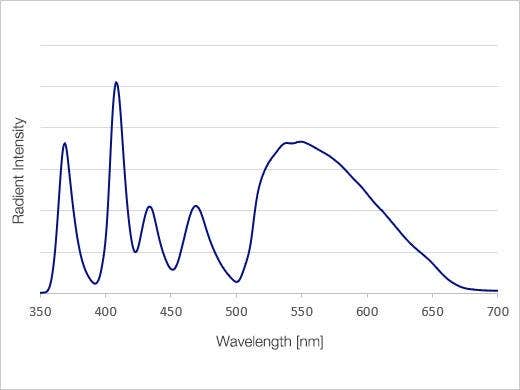

Spectral characteristics

Spectral characteristics

U-LGPS is a Class 1 laser product.
