Obiettivi Semi Apochromat UPLFLN/PLFLN

Overview

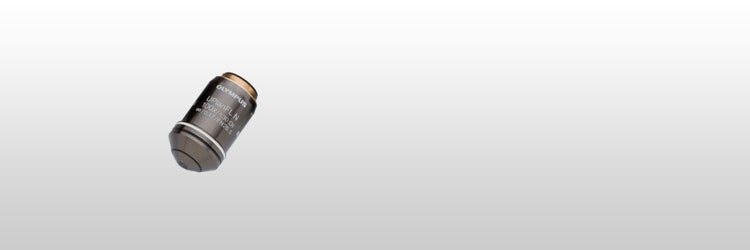

UPLFLN
The UPLFLN and PLFLN semi-apochromat objectives provide high-quality, flat-fielded images for routine use. These objectives range from 4X to 100X magnification with up to a 17 mm working distance and a 1.3 numerical aperture. With their high signal-to-noise ratio, high resolution, and contrast imaging, they are effective in widefield fluorescence, brightfield, and Nomarski DIC observations.

Select the right objective for your needs

UPLFLN4X

W.D. 17

OFN 26.5

NA 0.13

IM Air/Dry

UPLFLN10X2

W.D. 10

MAG 10

OFN 26.5

NA 0.3

IM Air/Dry

UPLFLN20X

W.D. 2.1

MAG 20

OFN 26.5

NA 0.5

IM Air/Dry

UPLFLN40X

W.D. 0.51

MAG 40

OFN 26.5

NA 0.75

IM Air/Dry

UPLFLN60X

W.D. 2

MAG 60

OFN 26.5

NA 0.9

IM Air/Dry

UPLFLN60XOI

W.D. 12

MAG 60

OFN 26.5

NA 0.65-1.25

IM Normal Oil

PLFLN100X

W.D. 0.2

MAG 100

OFN 26.5

NA 0.95

IM Normal Oil

UPLFLN100XO2

W.D. 0.2

MAG 100

OFN 26.5

NA 1.3

IM Normal Oil

UPLFLN100XO2

W.D. 0.2

MAG 100

OFN 26.5

NA 0.60-1.30

IM Normal Oil
