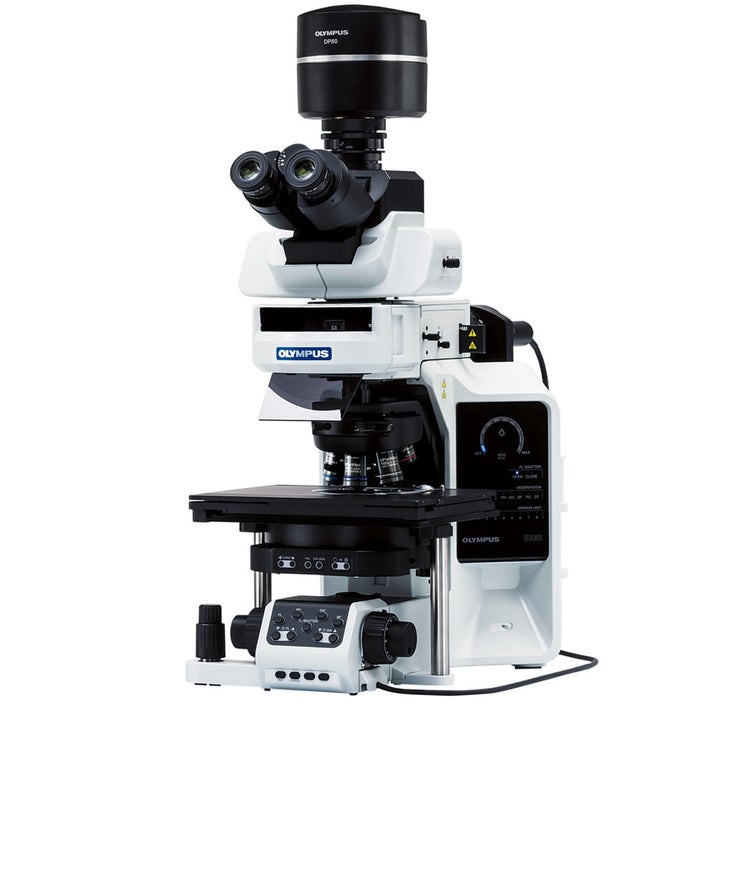

Microscopio dritto BX63
- Il sistema totalmente motorizzato consente l'automazione di complessi esperimenti multidimensionali
- Preciso sistema di azionamento sull'asse Z motorizzato
- Alta stabilità grazie alla struttura del tavolino fisso
BX63
Fully Motorized and Easy to Use
Flexible and easy to use, the fully motorized BX63 microscope uses the motorized nosepiece to focus onto the sample, enabling the stage to be fixed for added stability. The smooth, silent motorized stage is driven by ultrasonic piezo technology for precise operation.

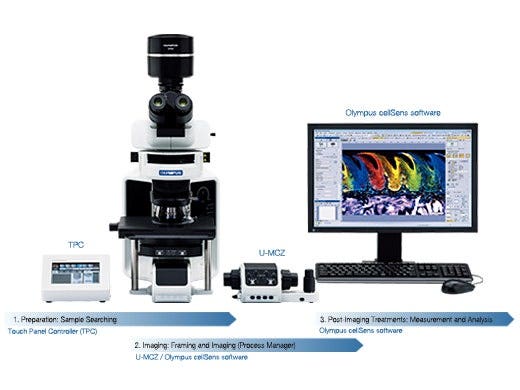

Fast, Efficient Image Capture
Enter observation condition data in the touch panel controller, and it’s automatically transferred to cellSens image analysis software. The process manager enables fully automated multichannel image acquisition.
Click here for the detail about cellSens imaging software

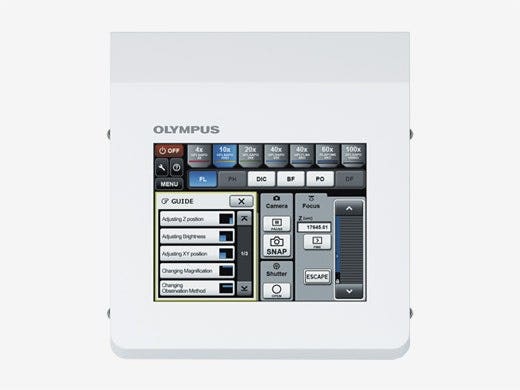

Control at Your Fingertips
The controller enables you to change observation methods with just a touch. Choose between guidance mode to navigate the procedures currently in use and full mode for access to the entire range of settings. You can save multiple observation points and conditions in advance and quickly recall previously used imaging conditions.

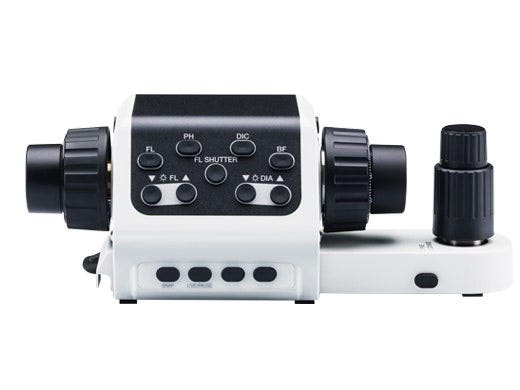

Familiar Focusing and XY Stage Controls
You can detach the stage controller from the frame and place it where it’s most convenient. When used with the ultrasonic stage, it creates a user-friendly workflow with an operation that mimics a manual focusing stage. Switches on the controller enable you to change between different observation methods, objectives, and mirror units while simultaneously selecting intensity adjustments or image capture.
Applied Technologies

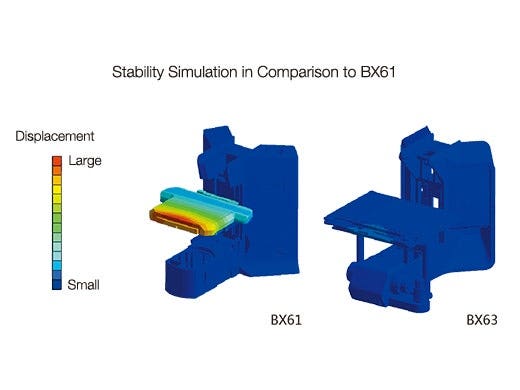

Stable Imaging
The fixed stage facilitates stable, reliable imaging. Samples are focused using the precise motorized nosepiece. Z-stack capture and deconvolution are also highly accurate.

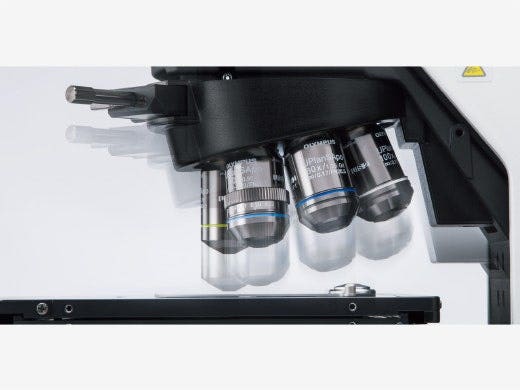

Efficient Motorized Nosepiece and Field Diaphragm
Change objectives using either the remote handset or PC software for efficient imaging. When combined with cellSens software, you can automate advanced imaging techniques that require multiple magnifications.
Even Fluorescence Across the Field of View
Fluorescence illuminators with a fly-eye lens provide homogenous illumination across the entire wavelength spectrum and simplify burner alignment.

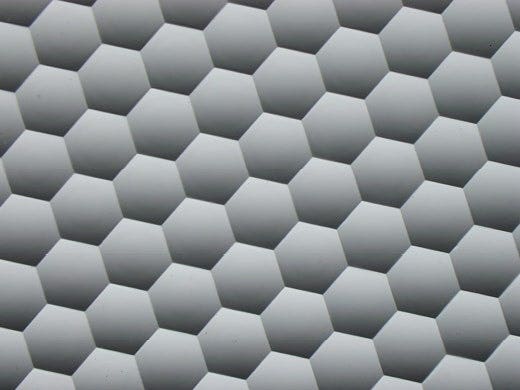

Surface of Fly-eye Lens System, Enlarged Image

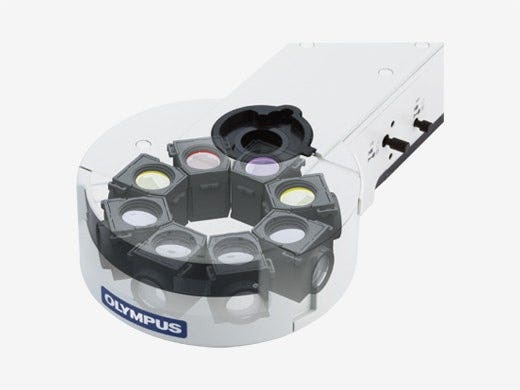

Flexible 8-Position Illuminator
Easily changeable mirror units to provide flexibility for a wide variety of fluorescence specimens. The design reduces the need to replace mirror units for multicolor or FISH applications, further accelerating your work.

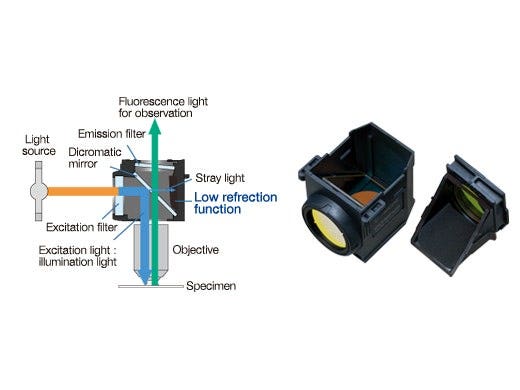

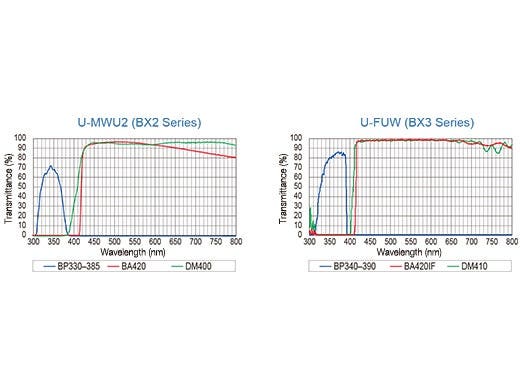

Mirror Units Optimized for Fluorescence
The fluorescence mirror units have advanced coatings that provide high transmission and steep cut-off slopes. The interior surfaces eliminate over 99% of stray light for high sensitivity and sharp color separation.

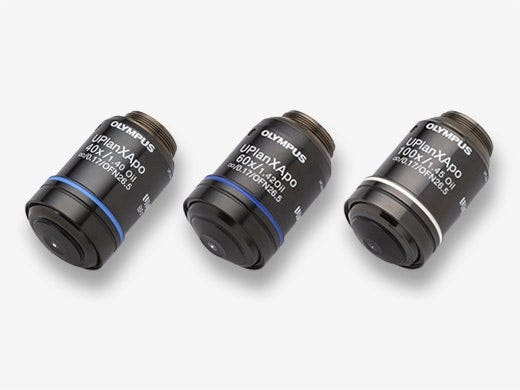

High-Transmission Objectives with Reduced Autofluorescence
UIS2 objectives with a high numerical aperture (NA) have chromatic aberration corrections to provide high resolution, even from faint fluorescence signals. Advanced coating technologies reduce autofluorescence and improve the signal-to-noise ratio for flat, high transmission over a wide wavelength.
Specifications
| Observation Method | Brightfield | ✓ | |
| Darkfield | ✓ | ||
| Phase Contrast | ✓ | ||
| Fluorescence (Blue/Green Excitations) | ✓ | ||
| Fluorescence (Ultraviolet Excitations) | ✓ | ||
| Differential Interference Contrast | ✓ | ||
| Simple Polarized Light | ✓ | ||
| Illuminator | Transmitted Köhler Illuminator | LED Lamp | ✓ |
| 100 W Halogen Lamp | ✓ | ||
| Fluorescence Illuminator | 100 W Mercury Lamp | ✓ | |
| Light Guide Illumination | ✓ | ||
| Focus | Focusing Mechanism | Nosepiece Focus | ✓ |
| Motorized | ✓ | ||
| Intermediate Magnification Changer | Manual Terret | ✓ | |
| Revolving Nosepiece | Motorized (7 positions) | ✓ | |
| Stage | Motorized | Contact your local sales representative to hear about motorized stage options | |
| Manual | Manual Stages with Right-Hand Control | X: 76 mm (3 in.), Y: 52 mm (2 in.) | |
| Mechanical | Oil Rectangular Stage with Right-Hand Control | X: 76 mm (3 in.), Y: 52 mm (2 in.) | |
| Condenser | Motorized | Universal Condenser | NA 0.9/ W.D. 1.5 mm for 1.25X–100X [swing-out: 1.25X–4X, with oil top lens: (NA 1.4/ W.D. 0.63 mm)] |
| Manual | Universal Condenser | NA 0.9/ W.D. 1.5 mm for 1.25X–100X [swing-out: 1.25X–4X, with oil top lens: (NA 1.4/ W.D. 0.63 mm)] | |
| Swing-Out Condenser | NA 0.9/ W.D. 2 mm (1.25X–100X) | ||
| Achromatic/Aplanatic Condenser | NA 1.4/ W.D. 0.7 mm (oil) (10X–100X) | ||
| Darkfield Condenser Dry | NA 0.8–0.92/ W.D. 4.52 mm (10X–40X) | ||
| Darkfield Condenser Oil | NA 1.2–1.4/ W.D. 0.5 mm (20X–100X) | ||
| Observation Tubes | Widefield (FN 22) | Binocular | ✓ |
| Tilting Binocular | ✓ | ||
| Trinocular | ✓ | ||
| Tilting Trinocular | ✓ | ||
| Ergonomic Tilting Binocular | ✓ | ||
| Tilting, Telescopic, Lifting Binocular | ✓ | ||
| Trinocular for Infrared | ✓ | ||
| Erected Trinocular | ✓ | ||
| Erected Ergonomic Tilting Binocular | ✓ | ||
| Dimensions (W × D × H) | 294.5 mm × 740.5 mm × 582.5 mm (12 in. × 29.2 in. × 23 in.) (Epifluorescence configuration) | ||
| Weight | 35 kg (Epifluorescence Configuration) | ||
| Operating Environment | Indoor Use | Ambient Temperature | 5 °C–40 °C (41 °F–104 °F) |
| Maximum Relative Humidity | 80% for temperatures up to 31 ºC (88 ºF), decreasing linearly through 70% at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50% relative humidity at 40 ºC (104 ºF) | ||
| Supply Voltage Fluctuations | ±10 % | ||
