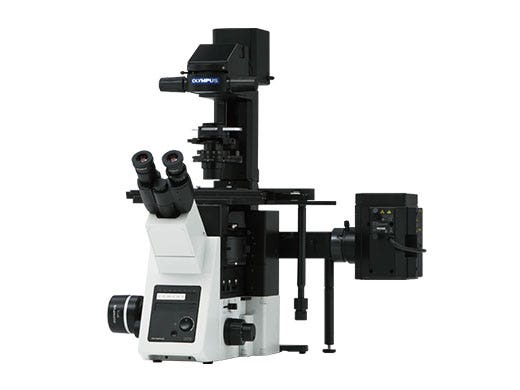

IXplore IX73 Standard Inverted Microscope
基本的なマルチカラー蛍光イメージングや通常の実験用に最適化されたIXplore Standardシステムは、操作が簡単で、人間工学に基づいた設計になっています。標準的な細胞培養容器を使用しても、優れた品質の画像を取得できる一方で、高倍率でも正確で再現性のある結果が得られます。IXplore Standardシステムの簡易化されたワークフローと使いやすさは、標準的なイメージングアプリケーションを幅広く支えます。
High-Quality Imaging
Designed for simple multicolor fluorescence imaging and routine experiments, the IXplore™ Standard microscope system is easy to operate and capable of producing excellent, publication-quality images. A range of encoded unit options makes it easy to get accurate and reproducible results.
Accuracy and Repeatability
Smooth Tracking at High Magnification
The IX3-SVR manual stage features a smooth positioning system that enables cells to be easily tracked, even at high magnifications.
- Observation limit settings immobilize the stage and help maintain its position, including during reagent applications, even if the stage is inadvertently touched.

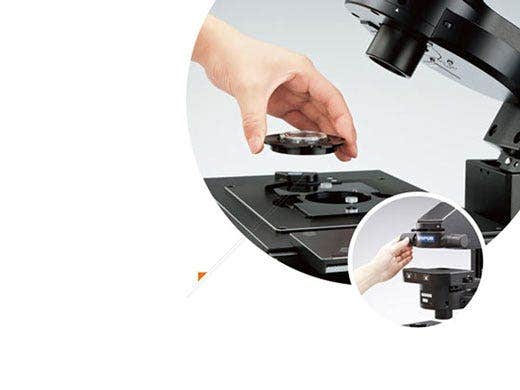

- Using the stage's fixing plate and positioning screws, you can remove a 35 mm dish from the stage, transfer it to an incubator, and return it to its exact previous position.
Easy Köehler Illumination
The condenser can be moved and easily reset to Köhler illumination using the conveniently located condenser lock and control knobs.

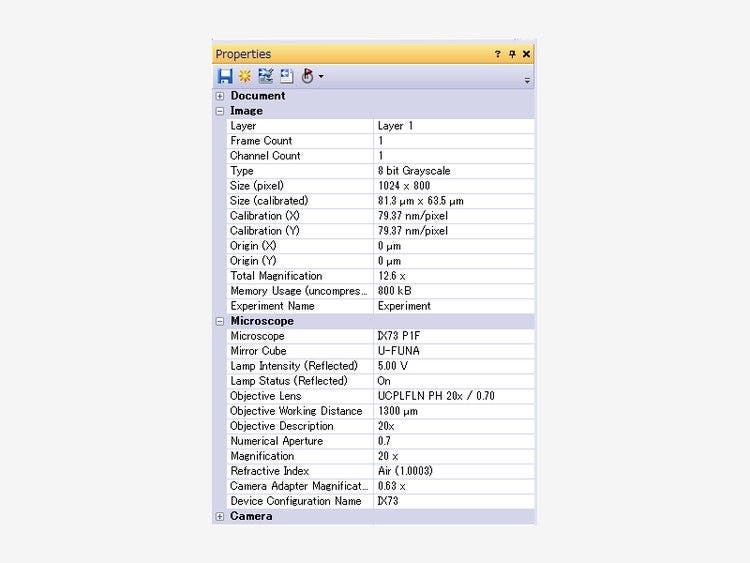

Encoded Units (Optional Peripherals)
A Cost-Effective Way to Upgrade to a Smart Microscope

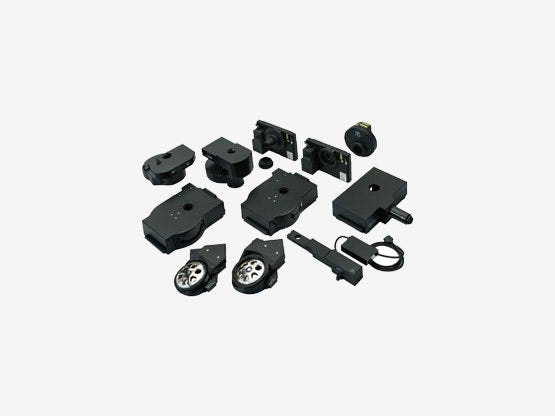

A wide range of optional units are available for upgrades, including:
- 8-position motorized or encoded fluorescence mirror turrets
- 6-position motorized or encoded nosepiece
- Motorized long working distance universal condenser
- Filter wheels and shutters
Ease of Use
One Camera for Multiple Applications

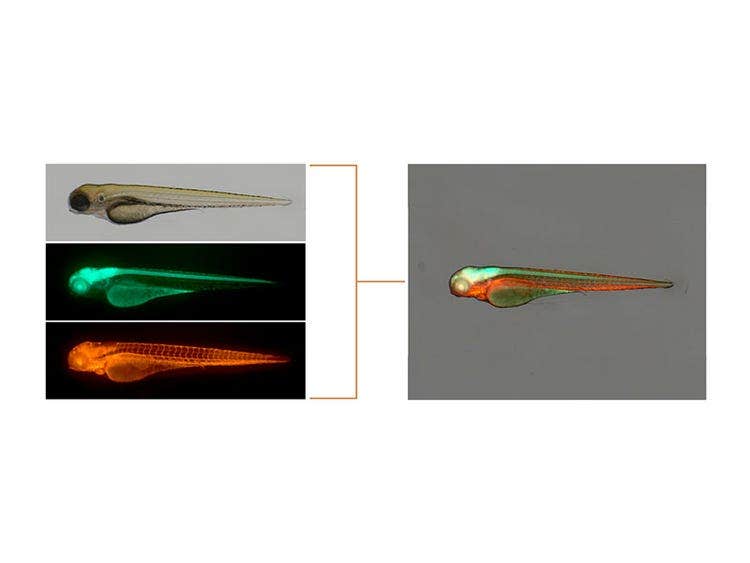

The DP75 digital microscope camera is a high-performance, multi-application imaging tool that makes it easy to capture high-resolution brightfield or fluorescence images using a single camera.
High Contrast under Bright Conditions

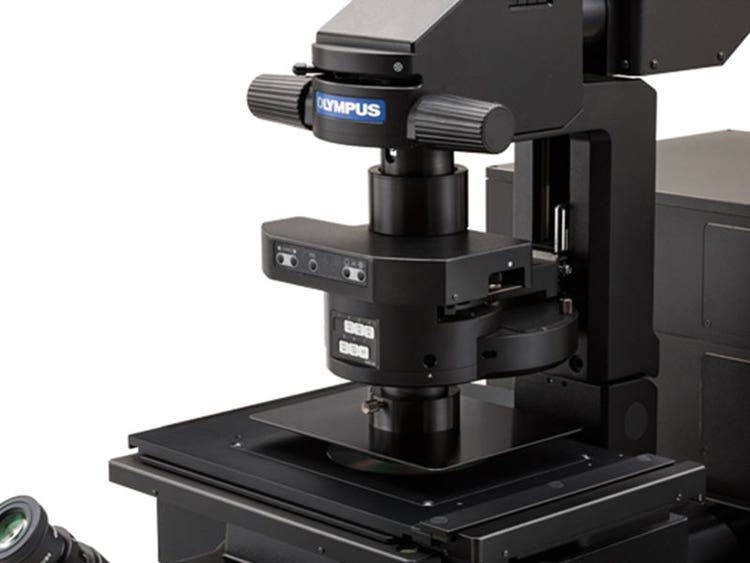

The unit is designed specifically for fluorescence observation. It efficiently blocks out room light, enhances the contrast of fluorescence, and enables clear fluorescence observation under bright conditions.
Intuitive Operation with cellSens™ Imaging Software
Our cellSens software is easy to use, powerful, and flexible. Featuring a modular design, the software can be tailored to your budget and imaging applications. This enables the software to grow and adapt to meet evolving research needs.
Simplify Your Workflow
Objectives for Observation Using Plastic Vessels
LUCPLFLN series objectives, and in particular the UCPLFLN20XPH (NA 0.7), are well-suited for observation using plastic dishes. The objectives enable high-resolution observation of the cell proliferation process and deliver improved contrast across a wide area. This gives you the flexibility to image through plastic-bottom dishes in addition to glass.
*Image: iPS-cell expressing Nanog reporter (GFP) Image data courtesy of: Tomonobu Watanabe, Ph.D. Laboratory for Comprehensive Bioimaging, RIKEN Quantitative Biology Center
High-Quality Imaging

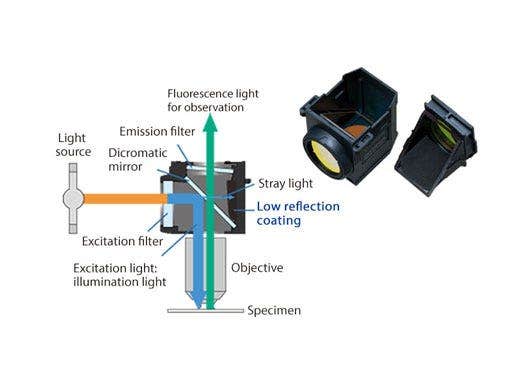

High Signal-to-Noise Fluorescence Mirror Units for Efficient Signal Detection
All fluorescence mirror units feature filters treated with a specially developed coating that absorbs more than 99% of stray light. This reduction in reflections and high transmittance of the mirror units helps provide fluorescence images with a high signal-to-noise ratio.
Specifications
| Microscope Frame | IX73P2F | ||
| Observation Method | Fluorescence (Blue/Green Excitation) | ✓ | |
| Fluorescence (Ultraviolet Excitation) | ✓ | ||
| Differential Interference Contrast (DIC) | ✓ | ||
| Phase Contrast | ✓ | ||
| Brightfield | ✓ | ||
| Revolving Nosepiece | Motorized (6 position) | ✓ | |
| Manual | Coded (6 position) | ✓ | |
| Observation Tubes | Widefield (FN 22) | Tilting Binocular | ✓ |
| Illuminator | Transmitted Köhler Illuminator | LED Lamp | ✓ |
| 100 W Halogen Lamp | ✓ | ||
| Fluorescence Illuminator | 100 W Mercury Lamp | ✓ | |
| Light Guide Illumination | ✓ | ||
| Fluorescence Mirror Turret | Motorized (8 position) | ✓ | |
| Manual | Coded (8 position) | ✓ | |
| Stage | Motorized | Contact your local sales representative to hear about motorized stage options | |
| Mechanical | IX3-SVR Mechanical Stage with Right Handle | X: 114 mm, Y: 75 mm | |
| IX3-SVL Mechanical Stage with Left Short Handle | X: 114 mm, Y: 75 mm | ||
| Condenser | Motorized | Universal Condenser | W.D. 27 mm, NA 0.55, motorized aperture and polarizer |
| Manual | Universal Condenser | NA 0.55/ W.D. 27 mm | |
| Ultra-Long Working Distance Condenser | NA 0.3/ W.D. 73.3 mm | ||
| Confocal Scanner | - | ||
| Super Resolution Processing | - | ||
| Accessories | - | ||
| Dimensions (W × D × H) | 323 (W) x 475 (D) x 721 (H) mm (IX73 microscope frame) | ||
| Weight | Approx. 47kg (IX73P2F) | ||
