Prisma Film Slide Stainer And Coverslipper Workstation
Overview

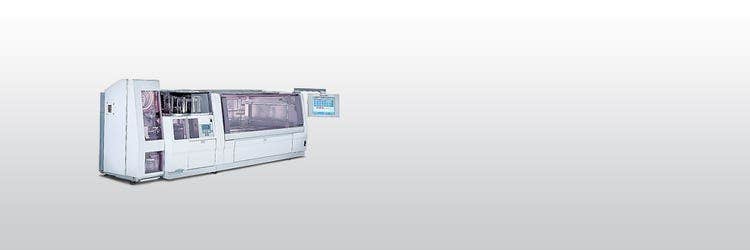

Slide Stainer and Coverslipper Workstation
True walk-away staining and coverslipping with Tissue-Tek® Prisma® & Film®. Experience superior turnaround times, continuous workflow and increased productivity, just like all SMART automation products. One system for routine and special staining and Integrated Track & Trace with barcode reading.
The Tissue-Tek® Prisma® & Film® provides unmatched productivity and turnaround time improvement with 660 slides per hour. The system enables an efficient workflow with continuous loading and unloading capabilities. The Tissue-Tek® Prisma® is the most flexible multiple stainer on the market, with a wide range of configurations for routine and special staining. The availability of three different volume reagent reservoirs optimizes reagent usage and decreases operating costs. Tissue-Tek® Coverslipping Film is a unique, resin-coated plastic film that eliminates the need for cover glasses and liquid mounting media -which reduces maintenance and assures fast coverslipping.
Furthermore slides can be tracked and traced with integrated barcode reading. Finally, configurations are easy to modify due to the simple software set-up.
The Tissue-Tek® Prisma® & Film® offer you:
- True walk away staining and coverslipping
- Unmatched productivity and speed with 660 slides per hour
- Integrated Track & Trace and slide identification with 2D barcode reading
- One system for routine and special staining
For specific details on clinical applications for this product, please contact your local Olympus Australia/New Zealand representative.
Need assistance?
Specifications
Prisma® & Film®
- Throughput Up to 660 slides per hour
- Dimensions W x D x H 197 x 71 x 69 cm
- Weight 225 kg
- Capacity
- Loading Up to 60 slides
- Unloading Up to 240 slides
Prisma® Slide Stainer
- Throughput Up to 660 slides per hour
- Dimensions W x D x H 125 x 71 x 63 cm
- Weight 150 kg
- Number of reservoirs
- Start 1 to 3 stations
- Reagent 31 to 51 reservoirs
- Drying 0 to 2 stations
- Wash 0 to 4 stations (8 programmable steps)
- Heating (optional) 2 stations
- Capacity
- Reagent volume 160, 260 and 680 mL
- Staining protocols 11 runs continuously loading, and simultaneously running
- Baskets 10- or 20 slide basket
- Loading Up to 60 slides per run
- temperature
- Drying station 30 - 65°C
- Heating station 30 - 70 °C
Film® Coverslipper
- Throughput Up to 1080 slides per hour
- Dimensions W x D x H 72 x 58 x 69 cm
- Weight 75 kg
- Capicity
- Loading Up to 60 slides
- Unloading Up to 240 slides
