100X 物镜 NA 0.85 FN 22.0 WD 1.2-0.90 mm

• Numerical Aperture (NA): 0.85
• Working Distance (WD) [mm]: Glass: 1.2 - 0.90\nSilicone: 1.2 - 1.05
• Objective Field Number: 22
• Coverglass Thickness [mm]: Glass: 0 - 0.7mm\nSilicone: 0 - 1mm
• Immersion Medium: Air/Dry
• Correction Collar: Yes
• Objective Type: Other

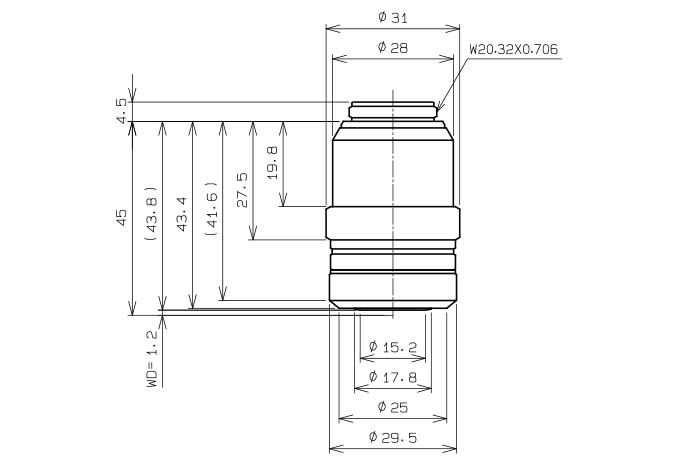

• Parfocal Distance [mm]: 45
• Back Focal Plane (BFP) Position [mm]: -3.1
• Mounting Threads: W20.32X0.706(RMS)
• Reflected Brightfield (BF): Limitation
• Transmitted Brightfield (BF): Limitation
• Reflected Darkfield (DF): N/A
• Transmitted Darkfield (DF): N/A
• Reflected DIC (Visible): N/A
• Transmitted DIC (Visible): N/A
• Polarization (PO): N/A
• Fluorescence (B & G excitation): N/A
• Fluorescence (UV excitation : 365nm): N/A
• Multi photon excitation (MPE): N/A
• Compatible for Autofocus: N/A
• IR Through Si or Glass: Excellent
• TIRF (Total Internal Reflection Fluorescence): N/A
• WLI (White Light Interferometry): N/A
• 340nm Transmittance: N/A

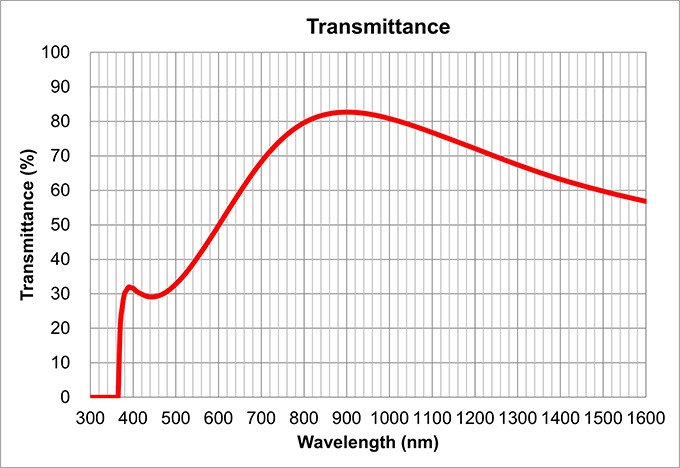

• 700-1000nm Transmittance: Yes
• 1000-1300nm Transmittance: Yes
• Magnification: 100
• Relief Contrast (RC): N/A
• Phase Contrast (PH): N/A
• With Coverglass: Yes
• Variable Coverglass: Yes
• Without Coverglass: Yes
