5G Device Measurement and Inspection Solutions
Guaranteed Dimension Measurement Accuracy
Measuring Base Station Antenna
Element Measurement Challenges
A conventional digital microscope may not offer guaranteed measurement accuracy, making the data less reliable.

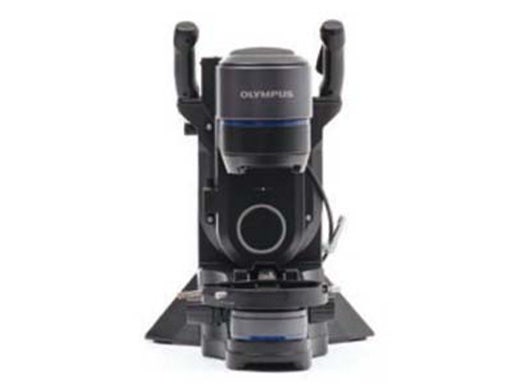

DSX1000 Guaranteed Accuracy
The DSX1000 digital microscope’s measurement accuracy and repeatability are guaranteed, enabling you to acquire data you can rely on.

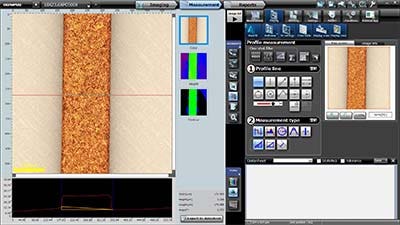

Antenna circuit shape measurement

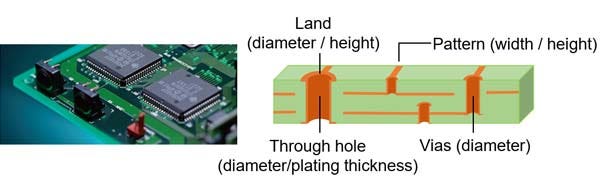

Measuring Printed Circuit Boards (PCBs)
PCB Measurement Challenges
PCBs can be difficult to image because reflectance varies greatly, depending on the material. Without uniform brightness, measurement data may not be reliable.
Through-Hole Measurement
Through-hole measurement is a standard PCB inspection item to make sure the component is manufactured as specified. The through-hole diameter can be easily measured using OLYMPUS Stream™ software’s throwing power measurement and the BX53M or MX63 microscope.

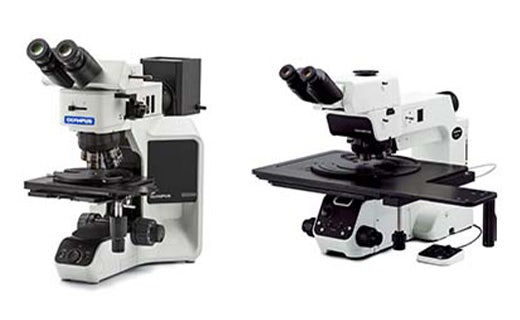

When using a BX53M or MX63/MX63L microscope, throwing power measurement is available with OLYMPUS Stream™ software.
Through-hole diameter measurement
PCB Pattern Measurement

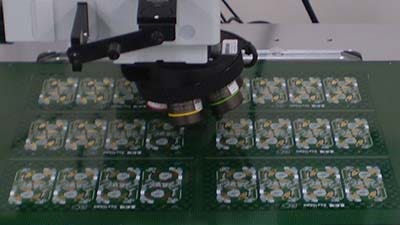

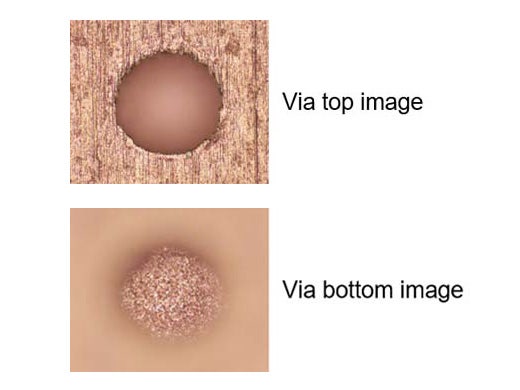

The DSX1000 digital microscope and STM7 measuring microscope can both be used to make highly accurate measurements of the width and height of vias and lands in PCBs.

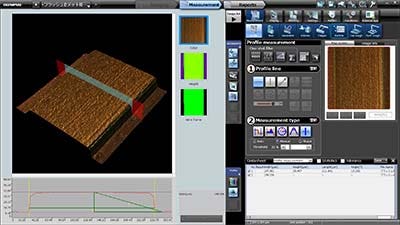

Pattern shape measurement screen with DSX1000

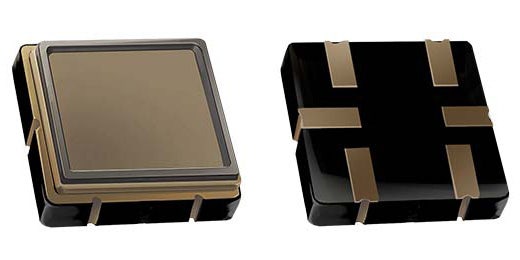

Measuring Noise Filters
Noise Filter Electrode Measurement Challenges
Metallurgical or digital microscopes may not be able to reliably measure these electrodes due to their small size.
Accurate Electrode Measurements
The OLS5100 measuring laser microscope provides highly accurate measurements of fine electrodes with guaranteed accuracy and repeatability.

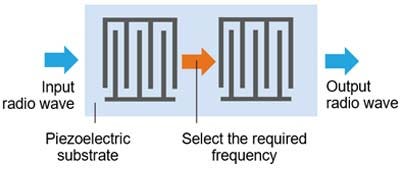

The input radio wave passes through the electrodes formed on the substrate, and the required frequency is selected and output.
SAW filter electrode dimensional measurement

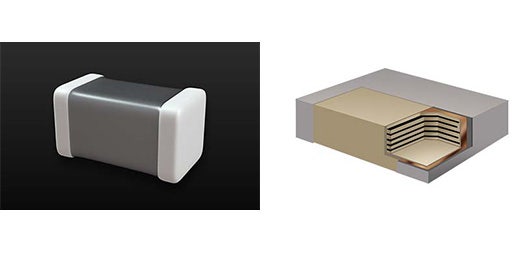

Measuring Multilayer Ceramic Capacitors
Multilayer Capacitor Measurement Challenges
Metallurgical microscopes, stereo microscopes, and conventional digital microscopes are typically used to inspect ceramic capacitors, but reflectance from electrodes and the dielectric are so different that it’s impossible to view the entire capacitor at the same time.
----
Accurate Multilayer Ceramic Capacitor Measurements
The DSX1000 digital microscope has features that enable you to observe the shape of minute electrodes and dielectrics with uniform brightness. And thanks to the microscope’s telecentric optical system, we can guarantee the measurement accuracy of all DSX objectives and at all magnifications..

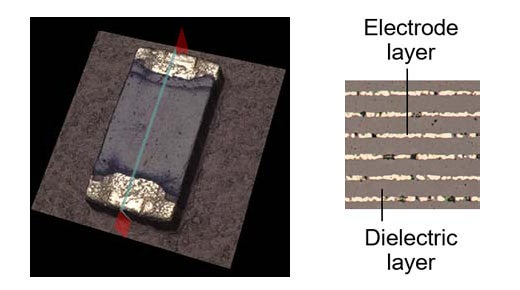

External scratches and chipping inspection

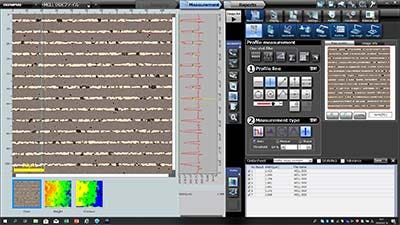

State observation and thickness measurement of electrode and dielectric layers with the DSX1000 digital microscope
Measuring Electronic Component Packages

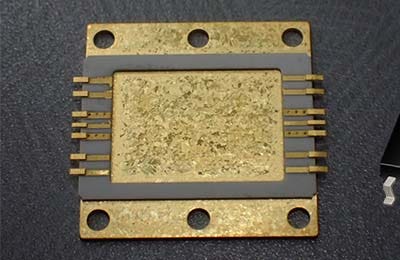

Sample provided by KOSTECSYS CO.,LTD.
Package Measurement Challenges
Electronic component packages have become extremely small (sub µm), and it is no longer possible to measure them using a standard measuring microscope.

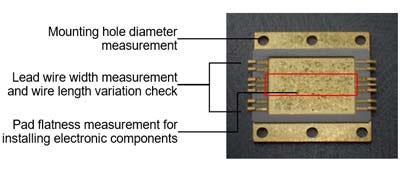

Sub-Micron Package Measurement

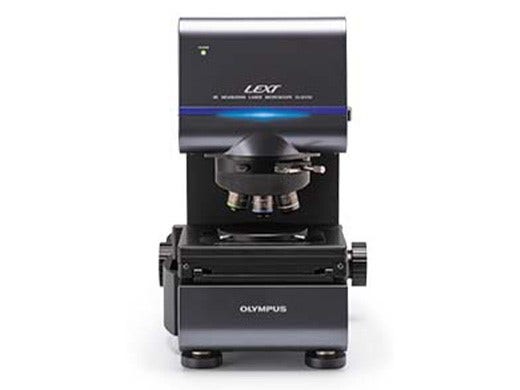

The OLS5100 laser microscope’s advanced measurement capabilities enable highly accurate 3D measurements of fine electrodes with guaranteed accuracy and repeatability.

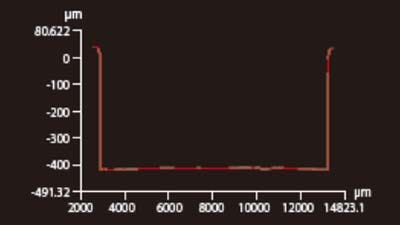

Measure the area surrounded by the red line. The cross-sectional shape of any position measured by the profile can be measured immediately.

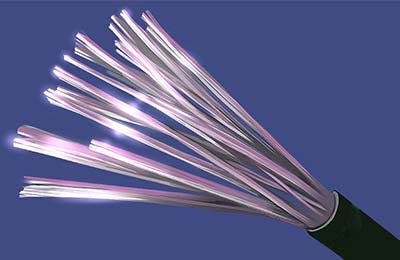

Measuring Optical Fiber Core Diameters
Optical Fiber Measurement Difficulties
When using a metallurgical or stereo microscope, it is often not possible to make observations with uniform brightness, leading to unreliable measurement data.

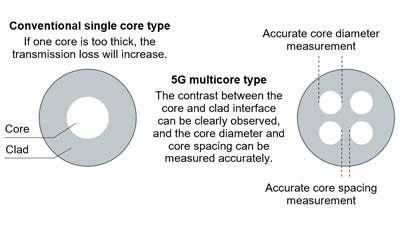

Accurate Fiber Core Measurement
The DSX1000 digital microscope makes it simple to accurately measure optical fiber core diameters and core spacing with guaranteed accuracy and repeatability.

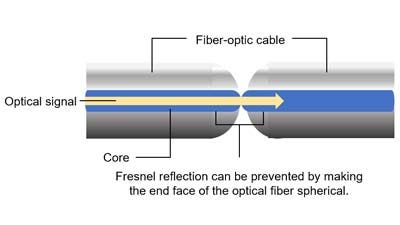

Measuring Optical Fiber End Faces
Fiber Optic End-Face Measurement Challenges
Measuring microscopes and conventional digital microscopes cannot accurately measure the spherical shape or inclined shape of the end face.
Accurate Fiber Optic End-Shape Data
The OLS5100 measuring laser microscope uses 4K scanning technology to capture accurate data on spherical shapes and steep slopes that are close to vertical.

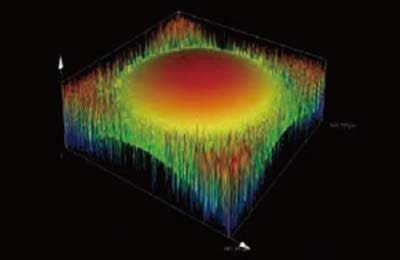

Example of a spherical image : Conventional
Example of a spherical image: OLS5100

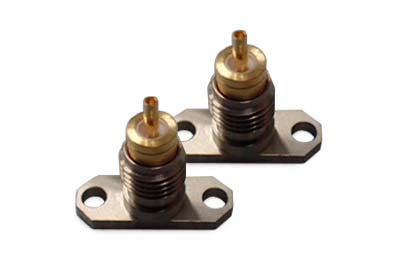

Measuring Fiber-Optic Connectors
Conventional Measurement Challenges
Over time, coaxial connectors have gotten so small that they can no longer be measured using magnifying lenses or calipers.
Accurate Coaxial Connector Measurement

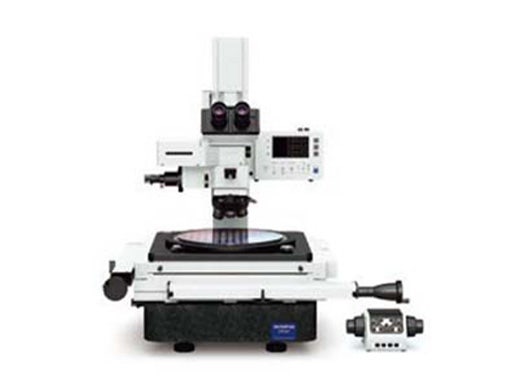

The STM7 measuring microscope enables users to measure the length and height of fiber-optic connectors in the millimeter to nanometer range.

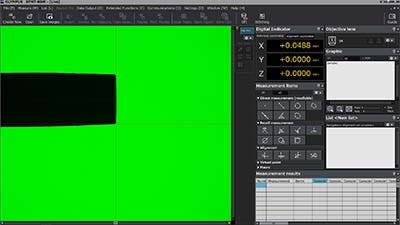

Connector tip diameter measurement screen:
When the measured part is irradiated with transmitted light, the shape is projected clearly, and the correct value can be measured.

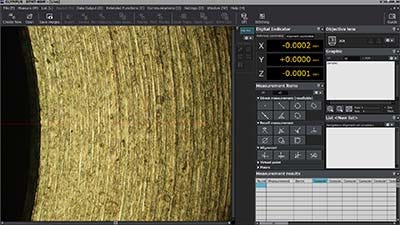

Optical fiber insertion slot appearance inspection screen:
By increasing the observation magnification, it is possible to accurately inspect the appearance of scratches, burrs, etc. on the product.
