Live Cell Imaging Silicone Immersion Objectives and the FV3000/ IXplore
Silicone Immersion Objectives

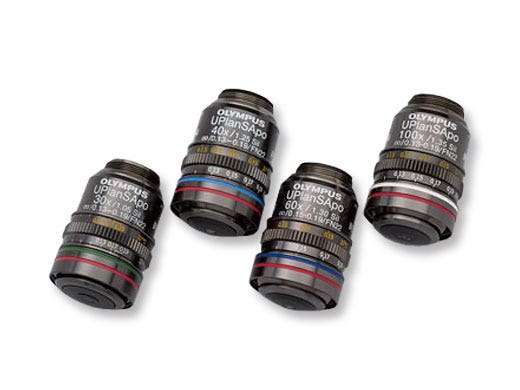

Silicone immersion objectives are optimized for live cell and live tissue imaging. With a refractive index similar to that of living tissue, silicone immersion objectives offer bright images of cleared tissue. And because silicone oil doesn’t dry out at 37 °C (98.6 °F), time−lapse observations are more reliable and less complex.

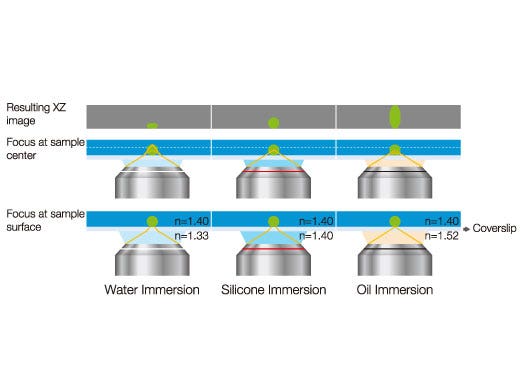

Effects of Refractive Index Mismatch on Sample Shape
Matching the refractive index of a sample and immersion media is very important to get accurate 3D images.

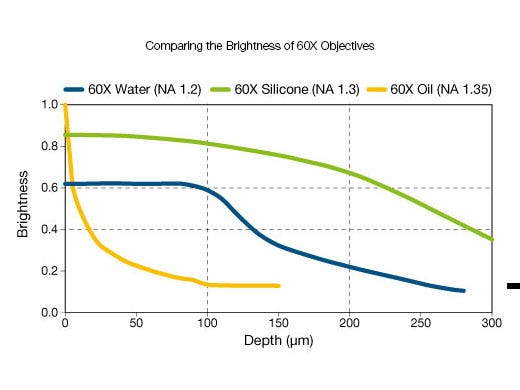

The Brightness of Water/Silicone/Oil 60X Objectives
Oil immersion objectives are the brightest at superficial depths while silicone immersion objectives are brighter than water and oil immersion objectives at all other focus depths.
The brightness of each objective is normalized to the 60X oil objective at the sample’s surface. The sample's refractive index is 1.38.
Related Videos
https://adobeassets.evidentscientific.com/content/dam/video/video/library/82h_observation_450.mp4
Long–Term, Time–Lapse Imaging of a Live Mouse Embryo (UPLSAPO60XS2)
Long-term, time-lapse images of a live mouse embryo captured using a silicone immersion objective (UPLSAPO60XS2).
The objective enables high‒resolution imaging with a numerical aperture (NA) of 1.30 and 3D imaging with a 0.3 mm working distance.
Image data courtesy of Kazuo Yamagata Ph.D., Faculty of Biology–Oriented Science and Technology, Kinki University Reference Stem: Cell Reports. 2014 Jun 3; 2 (6): 910–924.
Long–Term, Live–Cell Imaging of Arabidopsis Zygote Embryogenesis (UPLSAPO30XS)
The UPLSAPO30XS objective has an NA of 1.05 for brighter images with a higher resolution.
The video shows the process of embryogenesis from the early embryo (4–cell stage) to the late embryo recorded over 60 hours.
Image data courtesy of Daisuke Kurihara, Ph.D., Optical Technology Group, ERATO Higashiyama Live–Holonics Project, Nagoya University
Reference: Dev Cell. 2015 Jul 27; 34 (2): 242–51. doi: 10.1016/j.devcel.2015.06.008. Epub 2015 Jul 9.
Silicone Immersion Objectives Selection Guide
(mm)
*Maximum field number observable through eyepiece.
