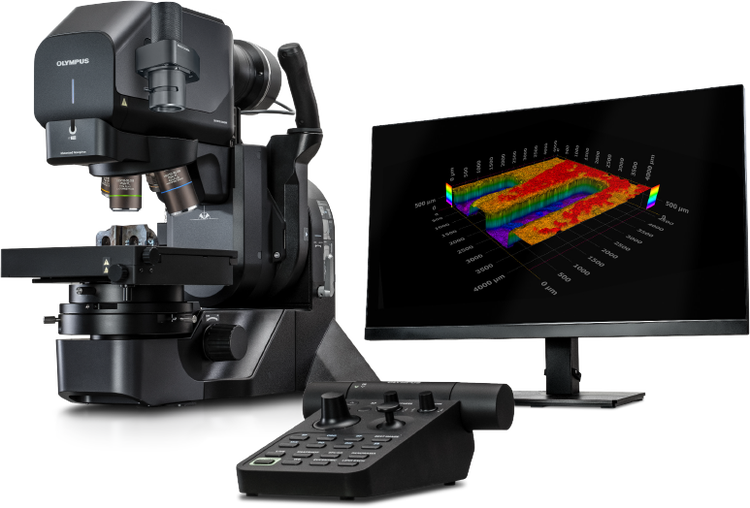

DSX2000 Digital Microscope
The DSX2000 fully motorized digital microscope series simplifies tasks, boosts productivity, and streamlines work for researchers and QC lab professionals with smart tools, all-in-one imaging, and a customizable interface. Empower your team to achieve fast, precise results and capture exceptional images beyond 4K resolution.
DSX2000 Digital Microscope
DSX2000 Digital Microscope

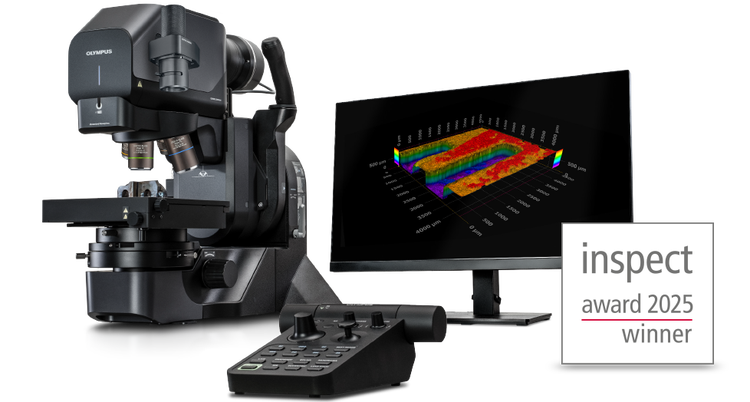

Precision Made Simple
The award-winning DSX2000 digital microscope series simplifies tasks, boosts productivity, and streamlines work for researchers and QC lab professionals. With smart tools, all-in-one imaging, and a customizable interface, the DSX2000 system adapts to your needs. Paired with PRECiV™ software, the DSX2000 microscope empowers your team to achieve fast, precise results and capture exceptional images beyond 4K resolution. An intuitive, seamless experience enables users of all skill levels to operate the system with ease and confidence.
Choose Your Model
The DSX2000 digital microscope series includes motorized, universal, or standard zoom head options so you can customize the system to your exact imaging and workflow needs. Whether your team needs full automation, advanced functionality, or just the basics, the DSX2000 series has you covered.

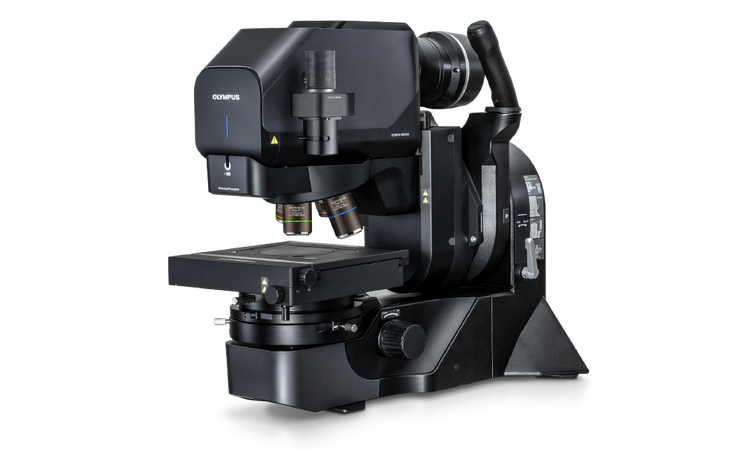

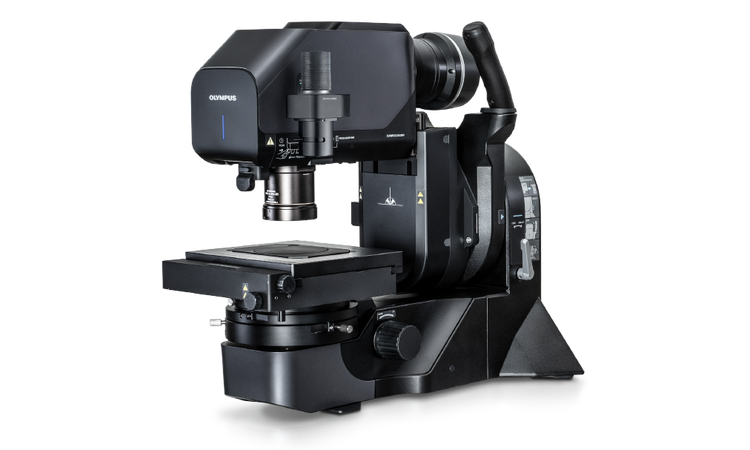

Fully Motorized DSX2000 MZH
Full motorization simplifies tasks and boosts productivity so your team can navigate challenges with ease. The motorized zoom head with an automatic revolving nosepiece supports up to four objective lenses for effortless magnification changes and seamless macro-to-micro inspections. This model is ideal for high-resolution observations and inspection applications requiring efficient go/no-go decisions.
Versatile All-in-One DSX2000 UZH/SZH
Our universal and standard zoom head models enable seamless macro-to-micro inspections with a single system. The sliding nosepiece supports up to two objective lenses for seamless magnification changes. These models offer the flexibility to use a wide variety of objective lens types, including super long working distance options, and to image your sample from a wide range of angles.
All-in-One Solution
Simplify Operations with an All-in-One Solution
By providing reliable results easily, the DSX2000 digital microscope series frees up valuable time to focus on the work that matters most. Get inspection results with minimal training or quick, accurate answers to your research questions.
See the Whole Picture
The DSX2000 microscope series offers a wide magnification range of 21X-7,300X, enabling you to complete macro and micro inspections with one system. With a lineup of 20 objective lenses, including super long working distance and high-resolution options, you can easily adapt your imaging to different samples and applications.

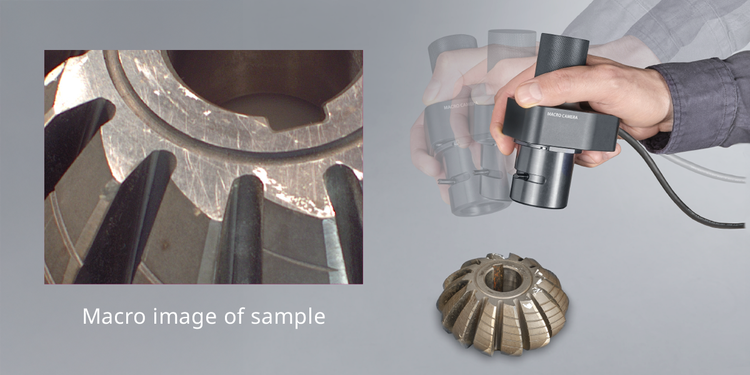

Fast, Flexible Macro Imaging
Quickly capture overview images of samples with the macro camera. This flexible accessory can be detached and held by hand to image large samples that cannot be placed on the stage. Switching to the macro camera view in the software is simple, making it easy to alternate between micro and macro imaging. Generate comprehensive reports faster with the required overview and magnified images.

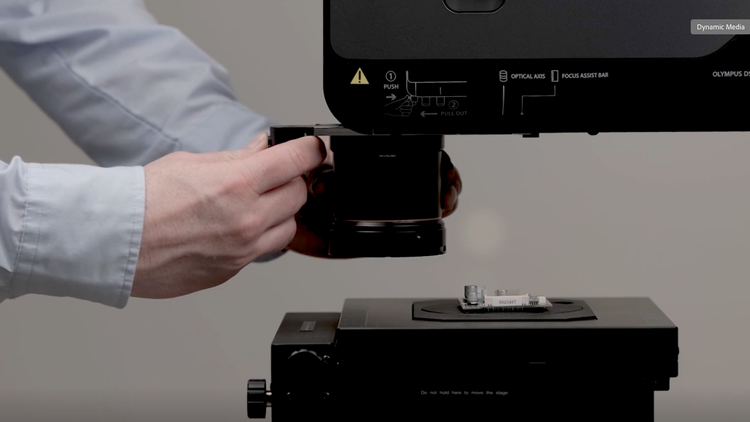

Switch Objectives Quickly and Easily
Quickly and easily change objectives on any DSX2000 model. The easy-to-replace lenses and adjustable settings in an ergonomic system let you work faster and maintain comfort.
Switch Automatically
For systems with a motorized zoom head, you can control the automatic revolving nosepiece from either the console or your computer to make effortless magnification changes.
Switch with a Slider
Systems with standard or universal zoom heads also offer seamless magnification changes via the sliding nosepiece, where two objective lenses can be attached at the same time. Switch the magnification just by sliding the lens for fast macro-to-micro imaging. This system makes it easy to change lens types, providing flexibility for various inspection needs.

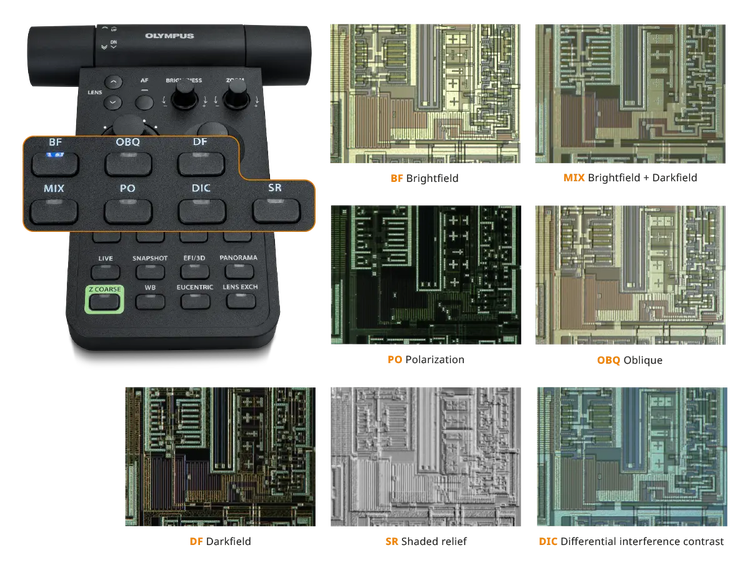

See What Matters with a Click
The DSX2000 microscope offers seven different observation methods at the click of a button. Find viewing conditions using brightfield (BF), oblique (OBQ), darkfield (DF), MIX (DF and BF), polarization (PO), differential interference contrast* (DIC), or our unique shaded relief (SR) method.
*Not available on the SZH model.

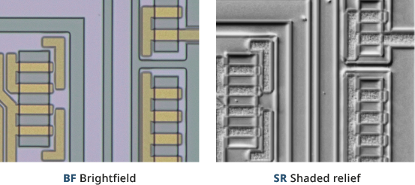

Reveal Defects in Real Time
Shaded relief observation reveals ultra-fine defects in real time, without post-processing delays. Move the stage and scan your sample seamlessly, viewing shaded relief images instantly for fast, thorough inspections.

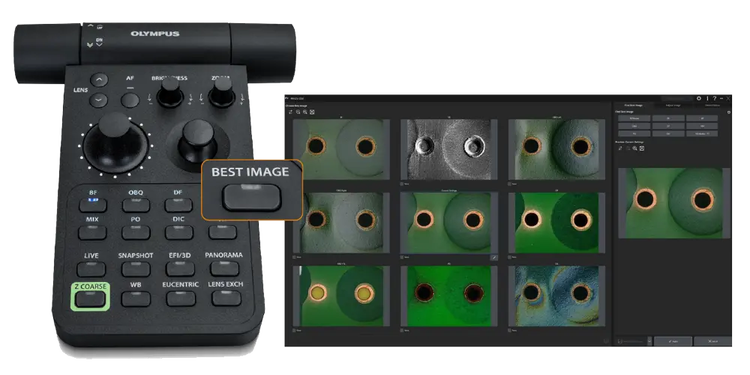

Find the Best Image, Fast
Best image function identifies the best imaging mode for revealing what needs to be seen with one click.
Left: plastic molded product captured using transmitted light with the SZX2-CPO polarization plate cartridge.
Right: fibers captured using transmitted light with the SZX2-CDF darkfield cartridge.
Lighting Tailored to Your Sample
Observe internal details in transparent, semitransparent, or thin samples with a variety of transmitted lighting and contrast options. Simply select cartridges according to the type and purpose of the sample.

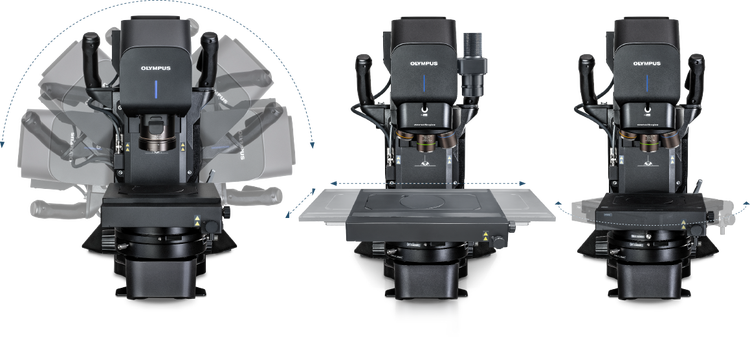

Adaptable Sample Positioning
The extended stage (up to 200 × 100 mm) accommodates multiple or large samples, while the tilting frame and rotating stage enable you to place your sample in the best observation conditions.
Smart Software
The Power to Work Smarter
Pair the DSX2000 microscope with PRECiV image analysis software to maximize efficiency. Customized workflows and AI capabilities on the DSX2000 digital microscope give you the power to work smarter, unlocking more efficient ways to perform routine inspections or conduct complex analyses.

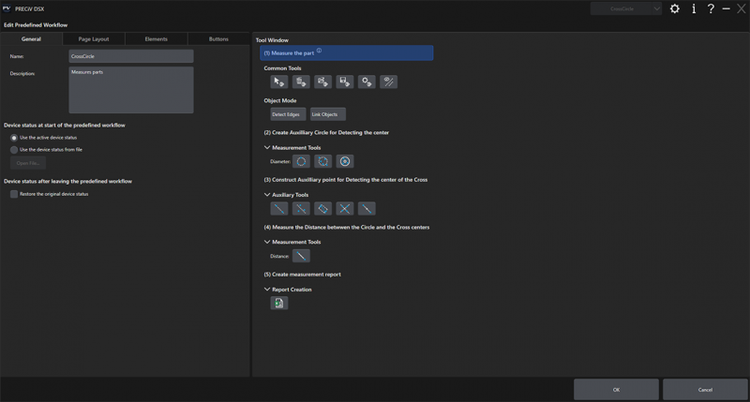

Customize Workflows for Faster Operations
EZ mode simplifies the interface with only essential functions. Custom workflows limit available buttons for consistency and ease of use while reducing the potential for errors.
1. Define your workflow
2. Arrange the icons
3. Activate the workflow

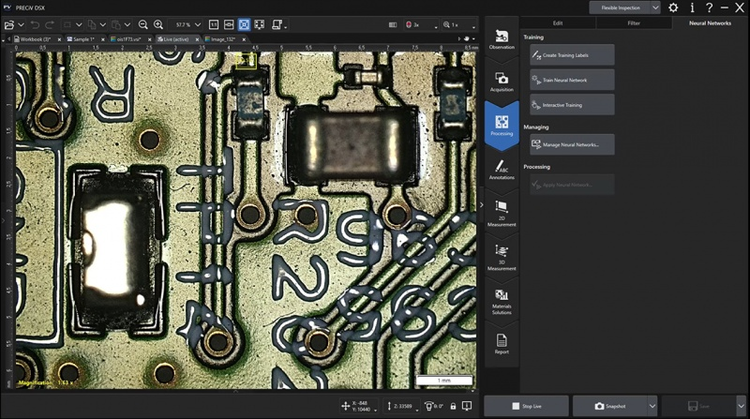

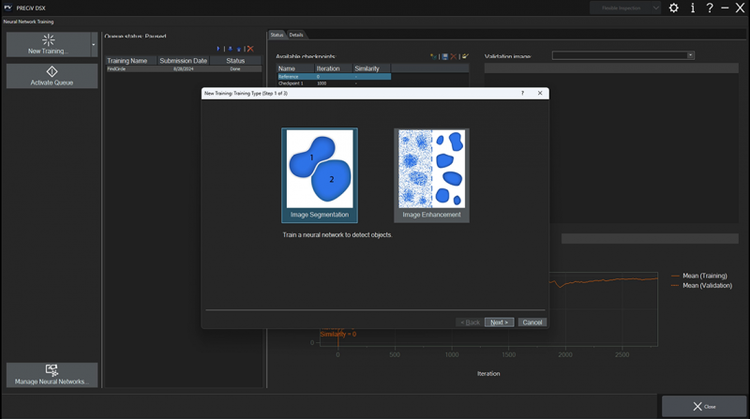

Unlock Efficiency with AI
PRECiV software equips the DSX2000 microscope with our unique Live AI. This powerful tool instantly reveals hidden details and highlights key features on live images without the need for additional processing. AI-assisted decision-making frees your experts from the need to double-check images.
1. Produce a live image
2. Train the neural network (5 minutes)
3. Apply the neural network to the live image
Simplify Tasks with Unified Software
PRECiV software operates the same way on all our industrial microscopes, creating a cohesive analysis environment across both digital (DSX series) and conventional microscopes (BX™ and SZX™ series). Access tools for 2D/3D measurements, image enhancement, macro recording, AI-assisted analysis, and more.

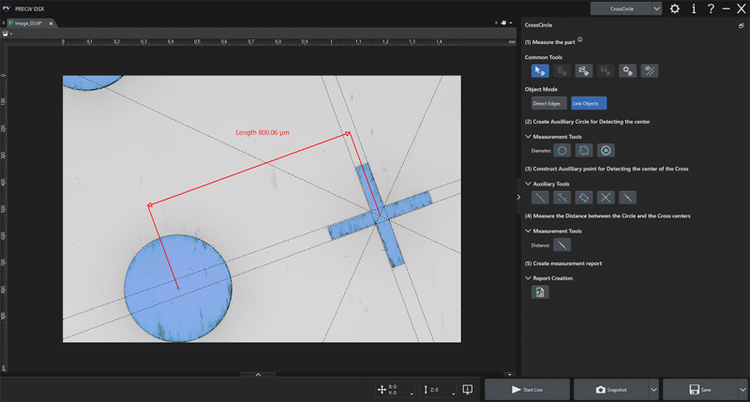

Compliant Measurements in a Few Clicks

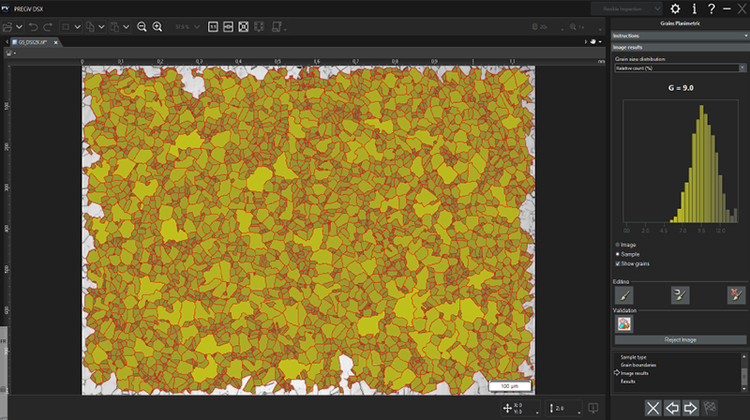

Simplify daily tasks for material analyses with standard-compliant automated workflows. Choose from options for grain sizing, cast iron analysis, phase analysis, non-metallic inclusion rating, and more.

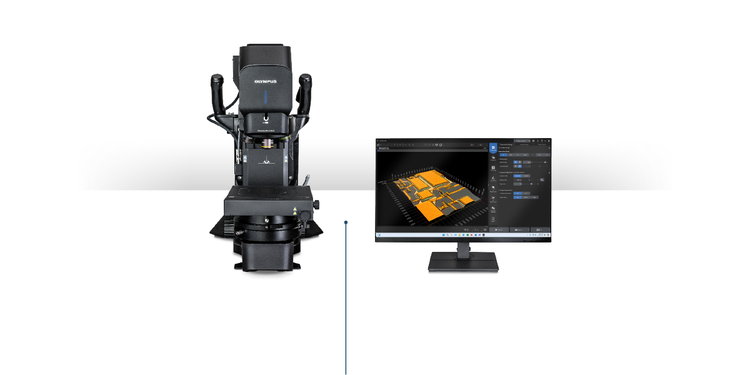

Seamless Network Integration
Easily connect the DSX2000 microscope to your company network for IT compliance and quick image sharing.

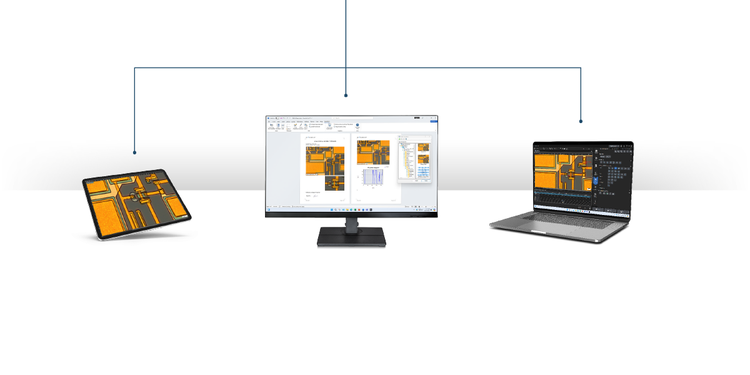

Maximize Throughput
Analyze images on any PC equipped with PRECiV software. This frees up the DSX2000 microscope for image acquisition, increasing workflow efficiency.
Create Compliant Reports Easily
Use the plug-in for Microsoft 365 to design your own reports in Microsoft Word, Excel, or PowerPoint.
Cleanliness Analysis
Simplify Your Technical Cleanliness
Cleanliness is critical in manufacturing. Micron-sized contaminants can cause failures, so today’s standards require clear insight into particle count, size, and characteristics. With PRECiV ADM* software, the DSX2000 delivers these particle insights in one easy-to-use platform. Compliant results are customized to company and industry standards, including ISO 16232 and VDA 19, in just one click.
*PRECiV ADM is available only on the MZH model.

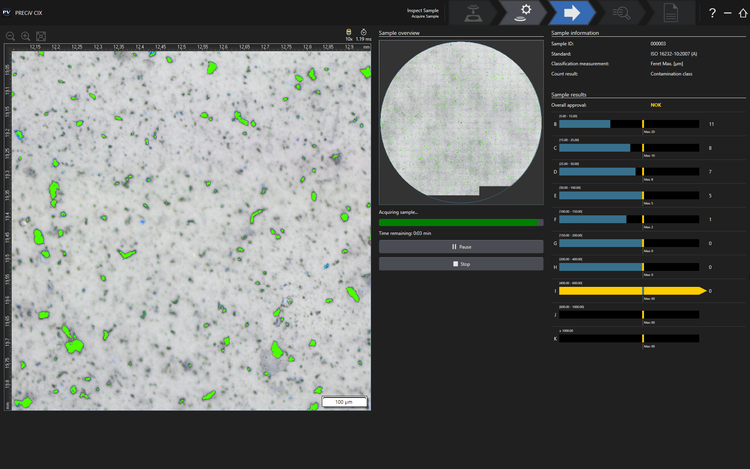

Guided Cleanliness Analysis Workflow
The DSX2000 is a turnkey solution designed to meet the needs of automated technical cleanliness inspection. Optimized imaging, precise detection, and guided steps deliver accurate, repeatable results while reducing manual effort and contamination risk.
Intuitive, easy-to-click workflow steps: Mount Sample → Edit Settings → Run Inspection → Review Results → Create Report.
Selecting a thumbnail automatically drives the system to this contaminant.

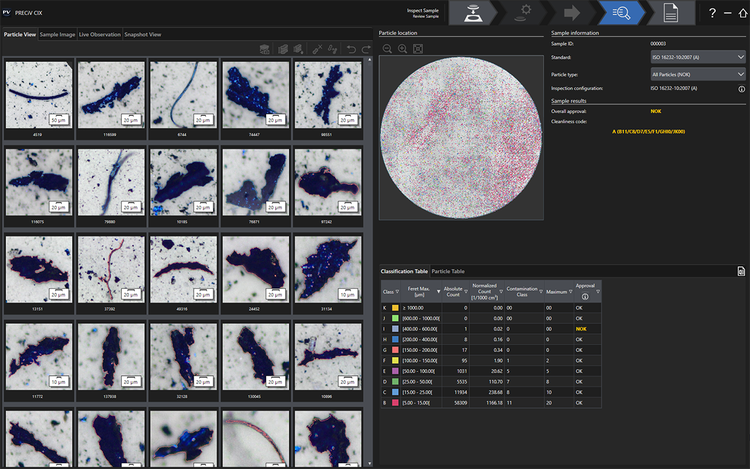

Review Particle Results with Confidence
Fast, intuitive particle review is supported by one-click reclassification and linked thumbnail images with measurements. Updates apply automatically across all views, delivering clear, consistent results with less effort.

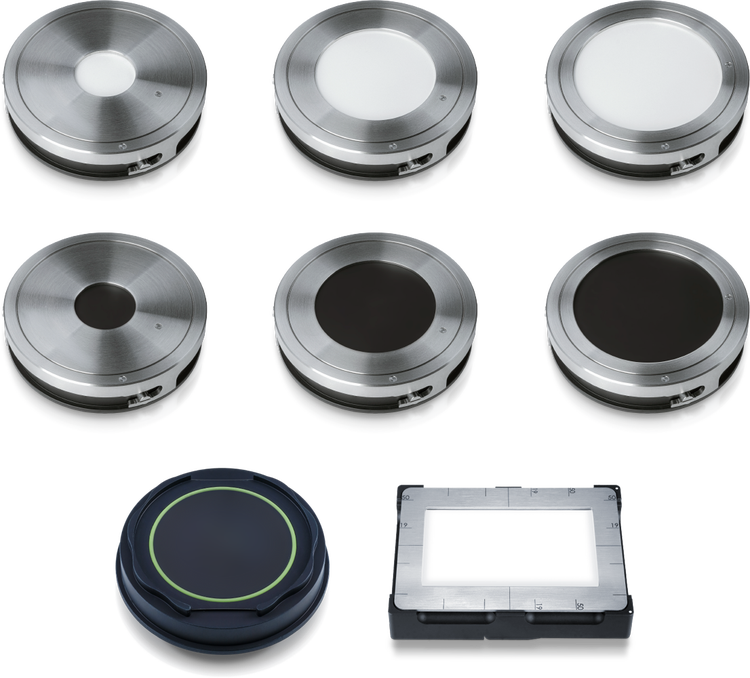

Versatility for Common Sampling Methods
A range of holders supports circular and rectangular inspection areas, including options for different filter sizes, tape lift samples, flat metallurgy surfaces, and particle traps. The software automatically recognizes the holder type and inspection area, helping ensure consistent results.
*Availability of the tape lift holder may vary by region.
Precise Imaging
Assurance in Your Images and Measurements
Be confident in your results knowing that the DSX2000 digital microscope produces exceptional images and precise measurements that meet the exacting demands of quality control, failure analysis, and R&D.

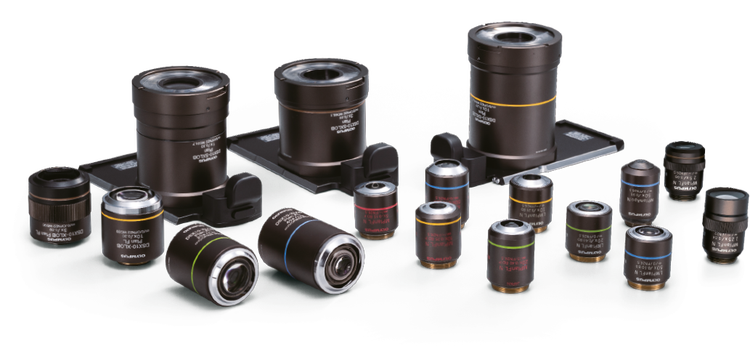

Flexible Optics
Building on a century of innovation, Evident has a rich legacy of expertise in precision optics. Our extensive line of dedicated objectives provides the wide magnification range (21X–7,300X) and working distance needed for inspections, whether you’re investigating the cause of a failure or doing a routine quality check.

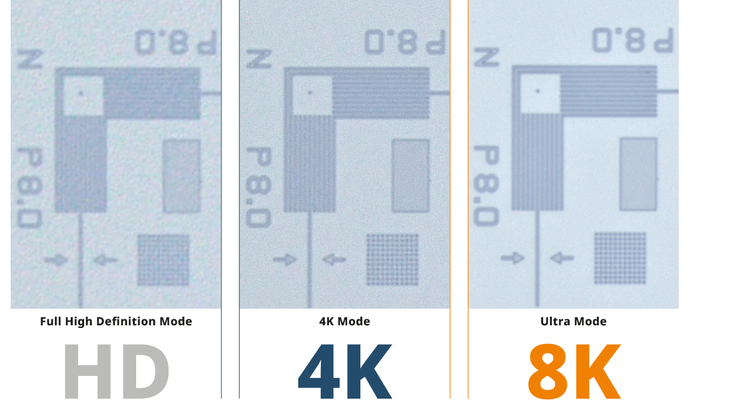

High-Resolution Imaging Beyond 4K
The DSX2000 microscope empowers inspections with image quality that surpasses standard 4K resolution*, delivering enhanced clarity and coverage across sample types—whether large, thin, thick, rough, reflective, or transparent. Pair the system with a 32-inch 4K monitor, for example, to further enhance sample details for observation and analysis.
* Resolution beyond 4K is not available on the SZH model.
Continuous Autofocus
The objective lens automatically moves up and down to match the unevenness of the object, providing a live image that is always in focus even when the observation location changes. By eliminating the need to adjust focus manually, the DSX2000 microscope helps your lab improve analysis and inspection efficiency.

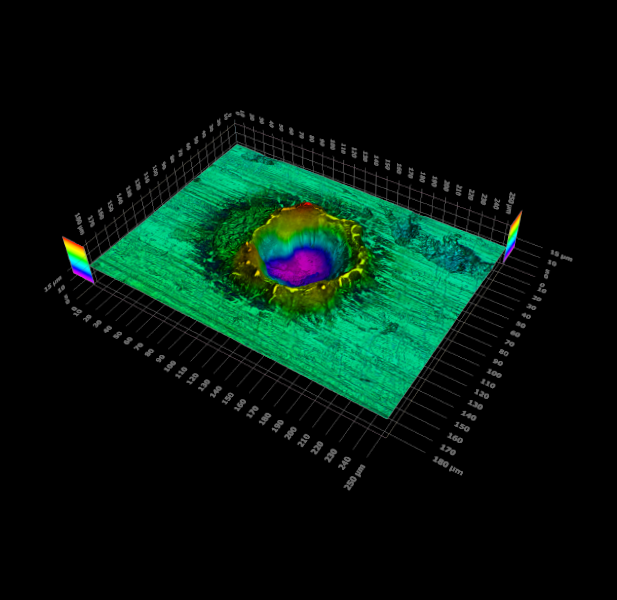

Advanced 3D Measurements
Get detailed insights into surface heights and features with precise 3D analysis for complex inspections.
Unlimited Image Size
Seamless stitching quickly creates large macro images, enabling analysis of large samples in less time. Create macro images as large as you want—the only limits are your hard drive space and stage travel range.

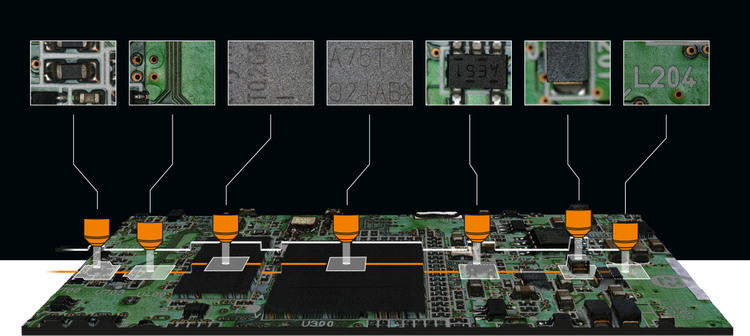

Save and Recall Observation Settings
Captured images automatically record their settings. Reuse conditions with one click for consistency and repeatability.

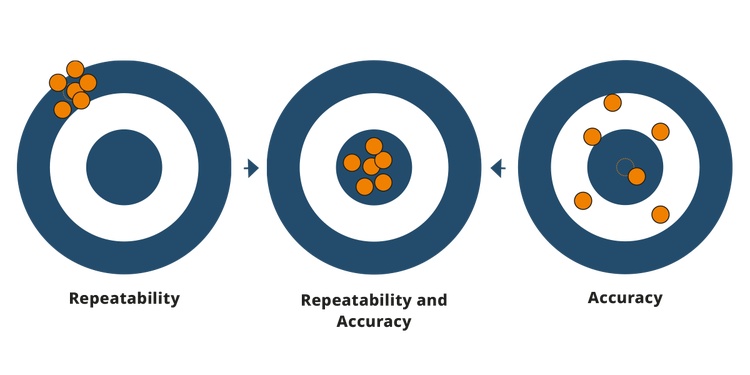

Guaranteed* Accuracy and Repeatability
Telecentric optics and traceable, time-stamped calibration by Evident technicians ensure precise measurements and easy alignment with metrology standards. Professional on-site calibration and service plans help keep your DSX2000 microscope compliant at predictable costs—especially with multi-year plans bundled at the best value when purchased with a new system.
*The guaranteed accuracy and repeatability apply only if the device has been calibrated according to the manufacturer's specifications and is in defect-free condition. Calibration must be performed by an Evident technician or an Evident-authorized specialist.
Specifications
DSX2000 Specifications
| Zoom head | Standard (DSX20-SZH) | Universal (DSX20-UZH) | Motorized (DSX20-MZH) | |||||
| Optical system | Optical system | Telecentric optical system | Telecentric optical system | Telecentric optical system | ||||
| Optical zoom ratio | From 1X to 10X | From 1X to 10X | From 1X to 10X | |||||
| Optical zoom magnification method | Motorized | Motorized | Motorized | |||||
| Calibration | Automatic | Automatic | Automatic | |||||
| Nosepiece | Manual sliding nosepiece | Manual sliding nosepiece | Motorized revolving nosepiece | |||||
| Number of objectives that can be attached | Up to 2 objectives | Up to 2 objectives | Up to 4 objectives | |||||
|
Accuracy and repeatability (X-Y plane) |
Accuracy *1 | ±3% | ±3% | ±3% | ||||
| Repeatability 3 σn-1 | 2% | 2% | 2% | |||||
| Repeatability (Z axis) *2 | Repeatability σn-1 | 1 μm | 1 μm | 1 μm | ||||
| Camera | Image sensor | 1.1-inch 12.37-megapixel color CMOS image sensor, global shutter | 1.1-inch 12.37-megapixel color CMOS image sensor, global shutter | 1.1-inch 12.37-megapixel color CMOS image sensor, global shutter | ||||
| Cooling | Peltier cooling | Peltier cooling | Peltier cooling | |||||
| Frame rate | 60 fps (maximum) | 60 fps (maximum) | 60 fps (maximum) | |||||
| Ultra (pixel shift mode) | Not available |
6000 × 6000 (1:1), 8192 × 6000 (4:3) |
6000 × 6000 (1:1), 8192 × 6000 (4:3) |
|||||
| Super high (3CMOS mode) | Not available |
3000 × 3000 (1:1), 4096 × 3000 (4:3) |
3000 × 3000 (1:1), 4096 × 3000 (4:3) |
|||||
| Super high |
3000 × 3000 (1:1), 4096 × 3000 (4:3) |
3000 × 3000 (1:1), 4096 × 3000 (4:3) |
3000 × 3000 (1:1), 4096 × 3000 (4:3) |
|||||
| 4K mode | 3840 × 2160 (16:9) | 3840 × 2160 (16:9) | 3840 × 2160 (16:9) | |||||
| High |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
|||||
| High (binning 2 × 2) |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
1500 × 1500 (1:1), 2048 × 1500 (4:3) |
|||||
| Full HD mode | 1920 × 1080 (16:9) | 1920 × 1080 (16:9) | 1920 × 1080 (16:9) | |||||
| Illumination | Color light source | LED | LED | LED | ||||
| Lifetime | 60,000 h (design value) | 60,000 h (design value) | 60,000 h (design value) | |||||
| Observation | BF (brightfield) | Available | Available | Available | ||||
| OBQ (oblique) | Available | Available | Available | |||||
| DF (darkfield) |
Available LED ring divided into four divisions |
Available LED ring divided into four divisions |
Available LED ring divided into four divisions |
|||||
| MIX (brightfield + darkfield) |
Available Simultaneous observation of BF + DF |
Available Simultaneous observation of BF + DF |
Available Simultaneous observation of BF + DF |
|||||
| PO (polarization) | Available | Available | Available | |||||
| DIC (differential interference contrast) | Not available | Available | Available | |||||
| SR (shaded relief) | Available | Available | Available | |||||
| Mechanical aperture for contrast settings | Available | Available | Available | |||||
| Mechanical aperture for depth of focus | Not available | Available | Available | |||||
| Focus | Focusing | Motorized | Motorized | Motorized | ||||
| Stroke | 101 mm (motorized) | 101 mm (motorized) | 75 mm (motorized) | |||||
| *1 Calibration by an Evident or a dealer service technician is necessary. To guarantee the accuracy of XY, calibration with a DSX-CALS-HR (calibration sample) is required. | ||||||||
| *2 When used with a 20X or higher objective. | ||||||||
| Objective lens | DSX10-SXLOB | DSX10-XLOB | UIS2 | |||||
| Objective lens | Maximum sample height | DSX20-UZH, DSX20-SZH | 50 mm | 115 mm | 145 mm | |||
| DSX20-MZH | 71 mm | 101 mm | ||||||
|
Maximum sample height (free-angle observation) |
50 mm | 50 mm | 50 mm | |||||
| Parfocal distance | 140 mm | 75 mm | 45 mm | |||||
| Total magnification*3 | 20.9X–1461X | 43.8X–5845X | 26.1X–7307X | |||||
| Actual FOV |
18182 × 13317 μm – 260 × 190 μm |
8658 × 6341 μm - 65 × 48 μm | 14546 × 10654 μm - 52 × 38 μm | |||||
| *3 On a 27-inch 4K monitor, scale setting: 175%, anti-vibration mode: off, fit to window mode. | ||||||||
| Stage | DSX20-TMTS | DSX20-RMTS | DSX20-LMTS | U-SIC4R | ||||
| Stage | XY stage: motorized/manual | Motorized | Motorized | Motorized | Manual | |||
| XY stroke | 100 × 100 mm |
Stroke priority mode: 100 mm × 100 mm Rotation priority mode: 50 mm × 50 mm |
200 × 100 mm | 100 × 105 mm | ||||
| Transmitted lighting | Integrated (PO, DF, BF, OBQ modes optional) | Not available | Not available | Not available | ||||
| Rotation angle | Not available |
Available Stroke priority mode: ±20° Rotation priority mode: ±90° |
Not available | Not available | ||||
| Display rotation angle | Not available | GUI | Not available | Not available | ||||
| Maximum load capacity | 5 kg (11 lb) | 5 kg (11 lb) | 5 kg (11 lb) | 1 kg (2.2 lb) | ||||
| Frame | DSX20-UF | DSX20-TF | ||||||
| Frame | Z-axis stroke | 50 mm (manual) | 50 mm (manual) | |||||
| Tilt observation | Not available | Available: ±90° | ||||||
| Tilt angle display | Not available | GUI | ||||||
| Tilt angle method | Not available | Manual, fix/release handle | ||||||
| Macro camera | ||||||||
| Macro camera | Image sensor | 1/2.5-inch color CMOS image sensor, rolling shutter | ||||||
| Image size | 1:1 display, 1944 × 1944 4:3 display, 1944 × 1458 Full HD display, 1920 ×1458 |
|||||||
| Size of the field of view (horizontal) | 81 mm to ∞ | |||||||
| Display | ||||||||
| Display | Screen size | 27 inch / 32 inch | ||||||
| Resolution |
Full HD: 1920 × 1080 4K: 3840 × 2160 |
|||||||
| System total | Upright frame system | Tilt frame system | ||||||
| System total | Weight (frame, head, motorized stage, display, and console) | 54.7 kg (120 lb) | 51.7 kg (113 lb) | |||||
| Power consumption | 100–120V / 220–240 V, 1.1/0 .54A, 50 Hz/60 Hz | 100–120V / 220–240 V, 1.1/0 .54A, 50 Hz/60 Hz | ||||||
| Software | ||||||||
| PRECiV DSX PRECiV ADM |
Included: device control, video recording, time-lapse imaging, large panorama acquisition, extended focus imaging, 3D image acquisition, Z-stack acquisition, position list navigation, best image function, extended 2D measurements, 3D measurements, reporting tools, neural network processing, macro recorder, technical cleanliness analysis (available only on the MZH model with PRECiV ADM) | |||||||
| Operating system | Windows 11-64 bit | |||||||
| Network connectivity | Compatible with most popular antiviruses, Windows security updates allowed, images can be saved directly to OneDrive. | |||||||
| Reporting application | Microsoft 365/Microsoft Office 365, Office 2024, Office 2021, Office 2019 | |||||||
| Optional software | 3D Analysis Application, Count and Measure, Neural Network Training, Materials Solutions (Grain Size, Cast Iron, Phase Analysis, Porosity, Particle Size Distribution, Non-Metallic Inclusions, Layer Thickness, Coating Thickness), Measurement Sequence | |||||||
| Customization |
Included: customizable user interface for predefined workflow creation Optional: wafer navigation, automated analysis on specific samples |
|||||||
DSX2000 Objective Lenses
| Objective lens model | Magnification on monitor | Working distance (mm) | NA | Field of view *1 (μm) | |
|
Super long working distance objective lenses Provides a long working distance between the lens and sample |
DSX10-SXLOB1X *2
|
20.9–146.1X | 51.7 | 0.03 | 18182 × 13317 μm - 2597 × 1902 μm |
|
DSX10-SXLOB3X *2
|
43.8–438.4X | 66.1 | 0.09 | 8658 × 6341 μm - 866 × 634 μm | |
|
DSX10-SXLOB10X *2
|
146.1–1,461X | 41.1 | 0.20 | 2597 × 1902 μm - 260 × 190 μm | |
|
High-resolution, long working distance objective lenses Delivers both high resolution and a long working distance |
DSX10-XLOB3X *2
|
43.8–438.4X | 30.0 | 0.09 | 8658 × 6341 μm - 866 × 634 μm |
|
DSX10-XLOB10X
|
146.1–1,461X | 30.0 | 0.30 | 2597 × 1902 μm - 260 × 190 μm | |
|
DSX10-XLOB20X
|
292.3–2,923X | 20.0 | 0.40 | 1299 × 951 μm - 130 × 95 μm | |
|
DSX10-XLOB40X
|
584.5–5,845X | 4.5 | 0.80 | 649 × 476 μm - 65 × 48 μm | |
|
High-performance, high NA objective lenses Delivers high performance at the nanoscale |
MPLFLN1.25X *4
|
26.1–182.7X | 3.5 | 0.04 | 14546 × 10654 μm - 2078 × 1522 μm |
|
MPLFLN2.5X *4
|
39.1–365.3X | 10.7 | 0.08 | 9697 × 7102 μm - 1039 × 761 μm | |
|
MPLFLN2.5XBD *5
|
39.1–365.3X | 8.7 | 0.08 | 9697 × 7102 μm - 1039 × 761 μm | |
|
MPLFLN5XBD
|
73.1–730.7X | 12.0 | 0.15 | 5195 × 3805 μm - 519 × 380 μm | |
|
MPLFLN10XBD
|
146.1–1,461X | 6.5 | 0.30 | 2597 × 1902 μm - 260 × 190 μm | |
|
MPLFLN20XBD
|
292.3–2,923X | 3.0 | 0.45 | 1299 × 951 μm - 130 × 95 μm | |
|
MPLFLN50XBD
|
730.7–7,307X | 1.0 | 0.80 | 519 × 380 μm - 52 × 38 μm | |
|
MPLAPON50X *3
|
730.7–7,307X | 0.35 | 0.95 | 519 × 380 μm - 52 × 38 μm | |
|
LMPLFLN10XBD
|
146.1–1,461X | 10.0 | 0.25 | 2597 × 1902 μm - 260 × 190 μm | |
|
LMPLFLN20XBD
|
292.3–2,923X | 12.0 | 0.40 | 1299 × 951 μm - 130 × 95 μm | |
|
LMPLFLN50XBD
|
730.7–7,307X | 10.6 | 0.50 | 519 × 380 μm - 52 × 38 μm | |
|
MXPLFLN20XBD
|
292.3–2,923X | 3.0 | 0.55 | 1299 × 951 μm - 130 × 95 μm | |
|
MXPLFLN50XBD
|
730.7–7,307X | 3.0 | 0.80 | 519 × 380 μm - 52 × 38 μm |
*1 Magnification and field of view are based on a 27-inch 4K monitor, scale setting: 175%, antivibration mode: off, fit to window mode, image aspect ratio: 4:3.
*2 The DSX10-SXLOB1X, 3X, 10X, and DSX10-XLOB3X do not support PO observation.
*3 The MPLAPON50X does not support DF, MIX, or SR observations.
*4 The MPLFLN1.25X and 2.5X do not support DF, MIX, PO, DIC, or SR.
*5 The MPLFLN2.5XBD does not support PO or DIC observations.
