PRECiV Advanced Imaging Analysis
PRECiV™ software puts you in control of your microscope so that you can perform repetitive, 2D/3D measurements and advanced image analysis during production, QC, and inspection operations. Designed for Evident’s digital and conventional microscopes, the software streamlines workflows with smart tools for imaging, measurement, and reporting.
An intuitive experience helps users efficiently move from image acquisition to report generation. With options from material analysis workflows to AI-powered image analysis, PRECiV software adapts to diverse inspection needs while supporting compliance with standards such as ASTM, ISO, and JIS.
PRECiV Imaging Microscopy Platform
PRECiV™ Imaging Microscopy Platform
Inspect. Measure. Analyze.
Easily perform repetitive 2D/3D measurements and advanced image analysis during production, quality control, and inspection operations.
- Unified interface with fast, efficient workflows expands what you can do with your microscope.
- Seamlessly control our conventional and digital microscopes, cameras, and accessories.
- Obtain results that comply with the latest industrial standards.
- Easily analyze complex images using AI technology.
- Broaden your microscope capabilities by adding Materials Solutions and other extras.
- Full network compatibility enables efficiency.
Scalable Solutions for Evolving Needs
PRECiV software is a unified, intelligent platform for controlling Evident’s full range of digital and conventional microscopes. Its modular design supports both system types and enables each department to choose the right software level, optimizing performance, efficiency, and investment.
Take advantage of the software’s powerful capabilities for automated optical inspection, AI-enhanced image analysis, and advanced 3D measurement. Custom solutions are also available to expand PRECiV software’s functionality to meet your unique needs.
For Conventional Microscopes
PRECiV Capture is our entry-level package for customers who want to acquire digital images and make basic 2D measurements, transforming their existing microscopes into digital workstations for applications like incoming goods inspection.
Ideal for customers in QA labs and inspection rooms with a strong focus on images, PRECiV Core balances cost and features, adding extended focus images and measurement export capabilities for an excellent value.
PRECiV Pro has the complete set of features and functions, making it the most powerful and versatile version of the software. The Pro version has the tools required for customers in QA/QC, failure analysis, and anyone who needs to produce analytical reports and measurements.
For Digital Microscopes
PRECiV DSX enables you to control our DSX series digital microscopes and their accessories. Get the most out of your DSX motorized system with the best image function, shaded relief illumination, Live HDR mode, and more.
With PRECiV ADM, the DSX2000 digital microscope delivers particle insights for technical cleanliness analysis in one easy-to-use platform. Compliant results are customized to company and industry standards, such as VDA and ISO.
Desktop Version
Use PRECiV software anywhere in your microscopy lab without the camera and image capture controls. PRECiV Desktop can be installed on all PCs connected to the network, letting you process data while freeing the image acquisition workstation for other users.
Intuitive Software Expands Your Microscope’s Capabilities
The PRECiV interface provides simple workflows while keeping the option for full functionality. Easily select between the predefined inspection in EZ mode for less experienced users and the flexible inspection mode for expert users. View the interface on an ultra-high-definition (UHD) monitor for an even deeper immersion into the microscope world. The software connection to your network lets the team immediately exchange data and information.
Intuitive and Collaborative
Easily access the software’s functions—such as observation, acquisition, measurement, and analysis—via large, clearly labeled buttons. Quickly capture high-quality images and perform precise 2D measurements and analysis on live and still images.
Minimal Training
For newer users, the advanced settings remain hidden, keeping the interface uncluttered. Experienced users can press the ‘more’ button to access all the features and functions. You can customize the home screen to quickly access the functions you use most often.
Guided Workflows

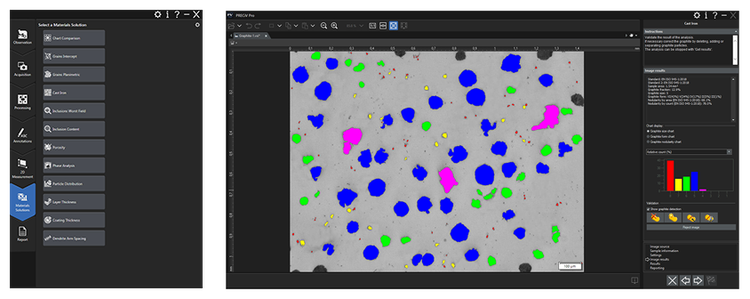

PRECiV software’s Materials Solutions have dedicated workflows that enable users to conduct measurements that comply with international standards and directly export standardized and customizable reports.
Versatile Software to Control Your Microscope and Analyze Images
PRECiV software is a comprehensive imaging and measurement solution for your microscopy lab. Instead of switching between one software program to control your microscope or its motorized components and one for image analysis, PRECiV enables you to seamlessly do both using the same software. PRECiV software can control all our digital and conventional industrial microscopes, their coded functions, our motorized nosepieces, and our digital microscope cameras via the same interface.
Conventional Microscopes
PRECiV Capture, Core, and Pro work seamlessly with our manual and semi-motorized microscope systems and microscope cameras as well as accessories that enable a range of imaging conditions, including brightfield, darkfield, polarization, and anti-halation.
Designed for Digital Microscopes
PRECiV DSX controls our DSX series digital microscopes, enabling faster failure analysis. This combination of hardware and software streamlines your inspection workflow with fast macro-to-micro viewing, multiple observation methods at the push of a button, a large selection of lenses that are easy to change, and much more. You can easily display and analyze data captured using PRECiV DSX and optional add-ons designed for specialized applications.
Repetitive 2D/3D Measurements and Analysis
PRECiV software enables users in production, quality control, and inspection to make precise, repetitive 2D/3D measurements and complex image analysis to obtain results that comply with the latest industrial standards.
Interactive Measurements

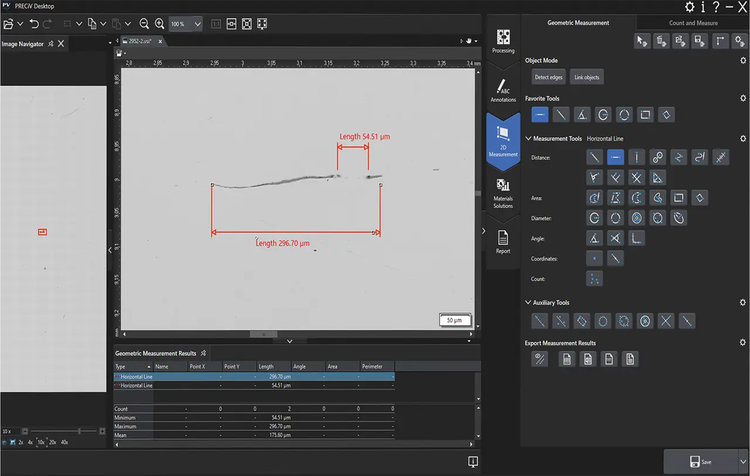

PRECiV software enables precise, repetitive 2D/3D measurements and analysis on a live or recorded image. The software gives you the tools to make complex geometric measurements to meet your production and inspection challenges.

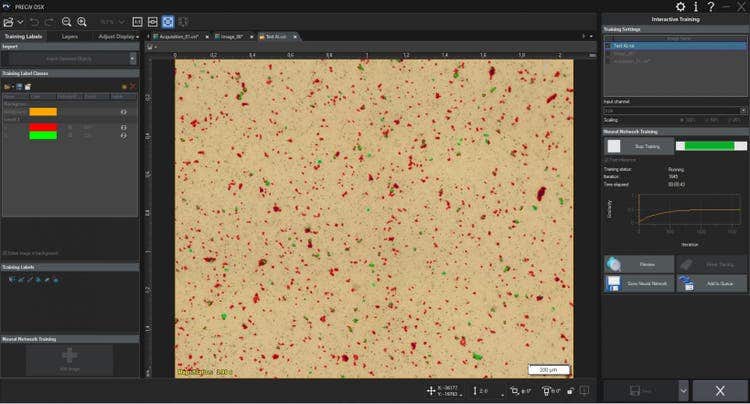

TruAI Deep-Learning Technology
With the exception of Capture, all PRECiV packages can be used with optional TruAI technology to quickly and easily analyze complex images. Artificial neural networks can be used for image segmentation, enabling the AI to separate features in a sample that cannot be handled by purely analytical solutions.

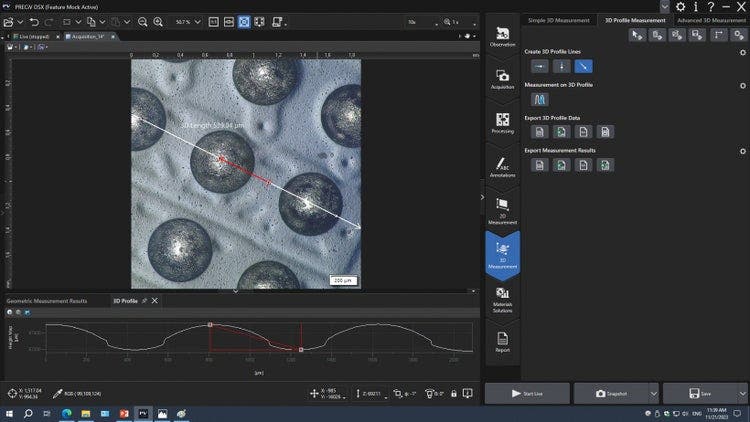

3D Roughness Analysis
PRECiV packages support 3D line profile measurements, advanced 3D measurements, and surface roughness analysis of 3D images acquired with our DSX series digital microscopes using our 3D analysis application. The image is automatically transferred from PRECiV DSX to the 3D analysis application.
PRECiV Optional Modules—Customize the Software to Your Needs
PRECiV optional modules integrate directly into the software, enabling you to customize it with measurement and analysis solutions tailored to your application and needs, such as metallography and motorization.
Metallography

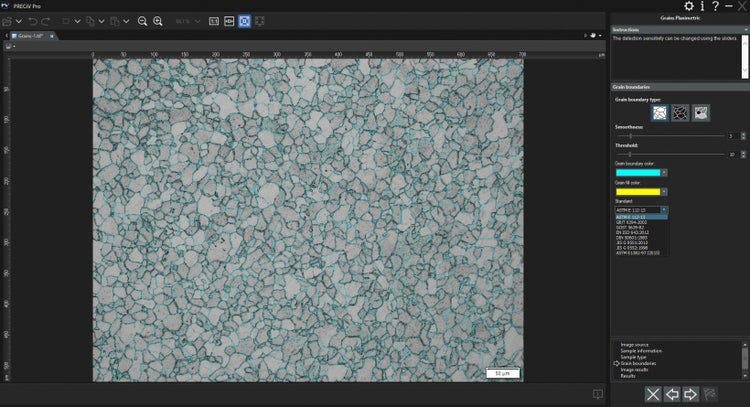

For metallographers and materials scientists, PRECiV integrates simple guided workflows for all daily tasks requiring reports according to most international standards, including ISO, ASTM, and JIS (Grain Size, Cast Iron, Non-Metallic Inclusions, Dendrite Arm Spacing).

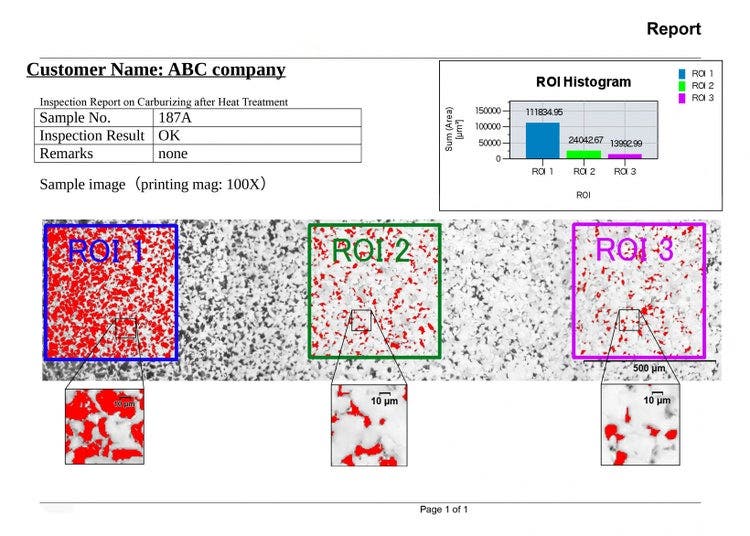

Image Analysis

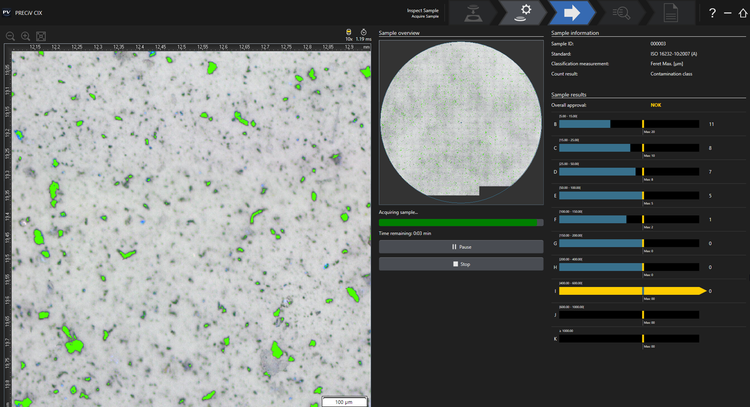

Quantitative results are what really count. Optional PRECiV modules for 3D roughness analysis, detecting objects and measuring size distribution, phase analysis, and neural network training help ensure that results are available more quickly, as well as improving reproducibility and security.
Motorization and Customized Software
PRECiV offers optional modules that enable you to control industrial and materials science manual and semi-automated microscopes and motorized X, Y, Z devices. A dedicated interface enables experienced users to efficiently control a motorized stage and focus drive to acquire time-lapse images, videos, or 3D stacks. Dedicated software solutions also support X, Y, Z motorized stages with applications like macro to micro, navigate on wafer, and measuring using the stage.
5 Advantages of PRECiV Software Over Conventional Imaging Platforms
01 Simple
- Simple-to-use imaging and measurement software
- Precise, repeatable 3D measurements
- Modern interface with the most used functions always visible
- Hide advanced functions to stay on task
02 Modular and Versatile
- Works with a wide range of imaging conditions using Evident and third-party products
- Control all our Evident conventional manual, semiautomated, and digital microscopes
- Control all our Evident digital microscope cameras
- Many software solutions updated to the latest standards
- 3D profile measurement and 3D analysis, including 3D roughness analysis
03 Safe
- Meets the latest standards in cybersecurity
- Share data over your local network or Office 365 cloud
- Digital solutions for sharing methods
04 Efficient AI
- Optional Materials Solutions with dedicated workflows—most neural networks supported
- Simple macro recorder for repetitive inspections
- Live AI functionality
- Includes advanced neural network training
05 Semiautomatic Inspection
- User-friendly functions and interface improve efficiency
- Integration of DSX series digital microscopes
- Supports third-party motorized hardware (motorized stages and focus drives)
- Motorization support for Materials Solution workflows
PRECiV™ Capture
Entry-Level Package with Core Features
PRECiV™ Capture is our entry-level package for customers who want to acquire digital images and make basic 2D measurements, transforming their existing microscopes into digital workstations for applications like incoming goods inspection.
Designed for Conventional Microscopy
PRECiV Capture is used with our manual and semi-motorized microscope systems and microscope cameras as well as accessories that enable a range of imaging conditions, including brightfield, darkfield, polarization, and anti-halation.
When you install PRECiV Capture, all the necessary drivers are also installed. This makes it easy to change which products you’re using.
Supported Microscope Frames
| Conventional | Stereo | |||
|
|
|
|
|
Supported Cameras
True-to-life images are important for reproducible and high-quality image measurements. Excellent spatial resolution combined with a high pixel count exploit the full optical resolution of the objectives and enable small structures and details within the samples to be imaged, even with low magnification objectives. High-resolution images acquired with PRECiV Capture enable users to make observations exclusively on screen without using the eyepieces, turning the system into a digital microscope. PRECiV Capture software supports a long list of digital cameras.
PRECiV Capture supports our extensive range of digital cameras that can be adapted to our conventional industrial microscope frames. Auto exposure, auto white balance, and focus indicator functions simplify image acquisition. You can adapt the camera mode and resolution to the imaging conditions (monochrome or high color fidelity) and use a focus-aid to capture sharp images. Use the software with multiple screens for enhanced image clarity and sharing.
| Outstanding Performance | Best Lateral Resolution | High-Quality Inspections with 4K | High-Quality Images | Monochrome Images | Excellent Cost Performance | ||

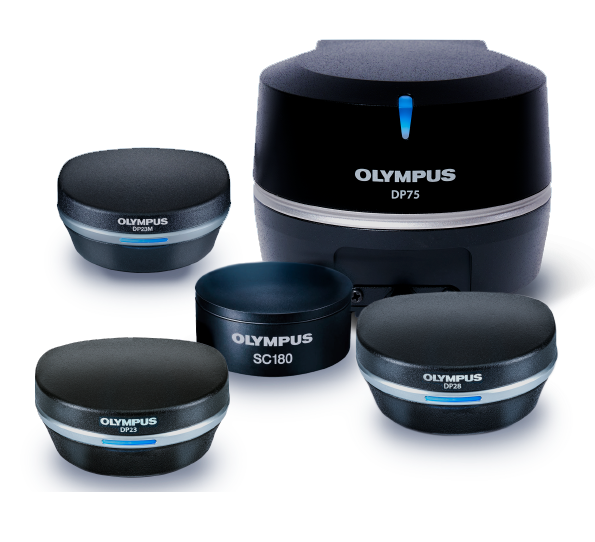

| DP75 | SC180 | DP28 | DP23 | DP23M | LC35 | ||
| Image Sensor | 1.1 inch Color CMOS |
1/2.3 inch Color CMOS |
1 inch Color CMOS |
1/1.8 inch Color CMOS |
1/1.8 inch Monochrome CMOS |
0.5 inch Color CMOS |
|
| Pixel Density (megapixels) | 12–49 | 18.1 | 8.9 | 6.4 | 6.4 | 3.5 | |
| Pixel Size (µm) | 3.45 × 3.45 | 1.25 × 1.25 | 3.45 × 3.45 | 2.4 × 2.4 | 2.4 × 2.4 | 2.64 × 2.64 | |
| Frame Rate (fps) | 60–22 | 59–10.5 | 64–32 | 60–45 | 60–45 | 40–19 | |
| Connection | USB 3.1. Gen 2 | USB 3.0 | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | |
| Windows 10/11—64-bit | Y | Y | Y | Y | Y | Y | |
| Special Features | Switchable IR-cut filter | Focus peaking, Smart image averaging | Global shutter | Rolling shutter | Rolling shutter | Rolling shutter | |
|
ADC* *Analog-to-digital converter; the actual bit depth of the camera depends on the software used. |
10-bit | 12-bit | 10-bit | 10-bit | 10-bit | 10-bit | |
| Observation | Bright conditions (e.g., brightfield) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Low-light conditions (e.g., darkfield, polarized light, DIC observation) | ✓ | ✓ | ✓ | ✓ | ✓ | - | |
| Very dark light conditions (e.g., fluorescence) | ✓ | - | - | - | ✓ | - | |
| IR | ✓ Up to 1000 nm |
- | - | - | ✓ Up to 1000 nm |
- | |
| Measurement/Analysis | Find minute differences at low magnification | ✓ | ✓ | ✓ | - | - | - |
| High-accuracy measurement/analysis | ✓ | ✓ | ✓ | ✓ | - | - | |
| Thresholding analysis (B/W mode) | ✓ | - | ✓ | ✓ | ✓ | - | |
Reveal More with Infrared Imaging
Infrared (IR) imaging is a fundamental tool for quality control and R&D. IR mode enables nondestructive inspection through silicon layers of packaged products during the back-end stage of fabrication.
PRECiV Capture supports:
- Cameras that are sensitive to the IR and shortwave infrared (SWIR) wavelength (900–1700 nm)
- Up to 60 frames per second (fps) with our compatible cameras for clear, smooth observation on your monitor

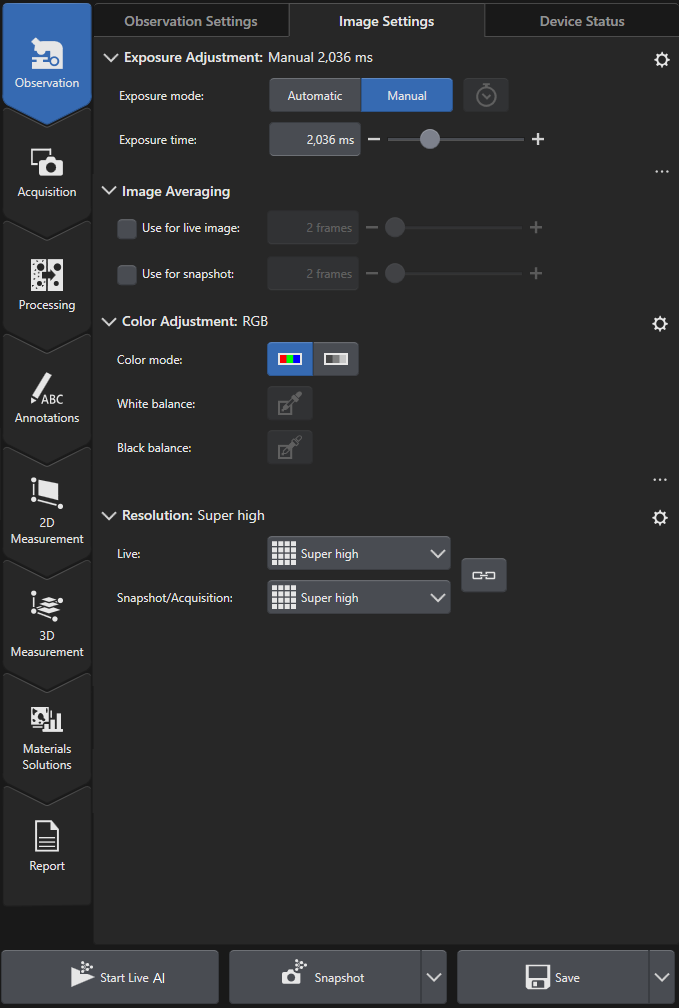

Real-Time Image Acquisition
All PRECiV packages come with digital live processing technology that enable you to, for example, zoom in on a live image to proof details or make interactive measurements.

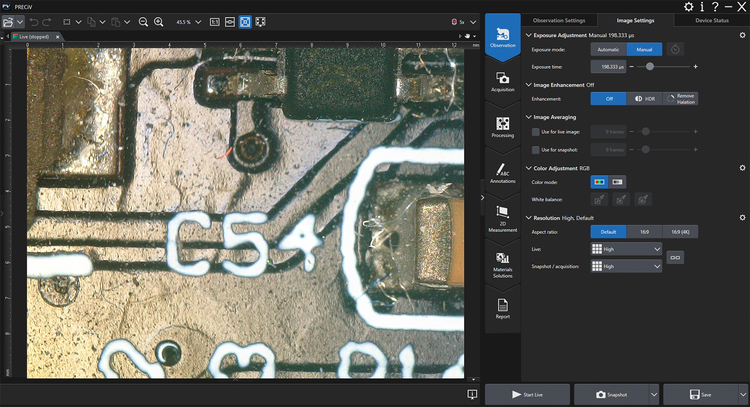

Acquiring high-quality images is easy as the software’s automatic exposure control, live histogram display, and over-exposure indicator helps ensure that the entire dynamic range of the camera is used while minimizing blooming or glare artifacts. The focus indicator enables you to select a region of interest and bring it into focus. The digital zoom—operated with the mouse wheel—enables you to quickly check the live image window to be sure the camera has captured the desired details—all before you actually acquire and save the image. As a result, images are produced with maximum fidelity and reproducibility, independent of the user.
Live Image Functions
PRECiV Capture software’s live image functions, like live overlay and live zoom, enable you to interact with the automatically calibrated live image and perform various annotations.
Powerful Imaging Tools
During live observation or post-acquisition image analysis, PRECiV Capture offers several image-enhancing tools that advance your inspection capabilities and increase your probability of detection. PRECV Capture supports:
- Brightfield
- Darkfield
- Polarization
- Differential interference contrast (DIC)
All imaging filters can also be applied on 4K and larger images.
Robust color rendering and resolution provide the high-quality images required for industrial applications. PRECiV Capture also has convenient tools that enable you to optimize the live image, including live high dynamic range (HDR), anti-glare, a digital reticle, and a focus aid.

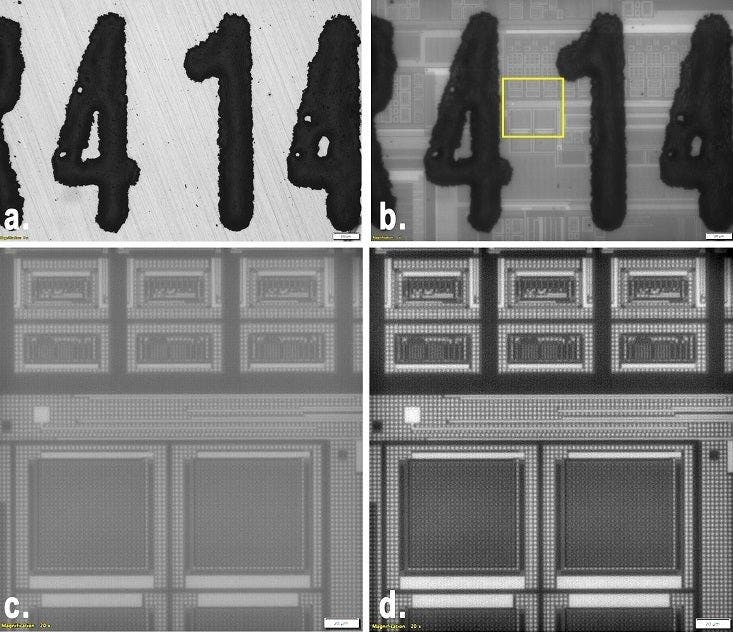

Enhanced Contrast
High dynamic range (HDR) imaging improves contrast in difficult conditions (very bright areas and very dark areas in the same image). All cameras supported by PRECiV software can be used in this mode, and dedicated cameras have an available live mode.

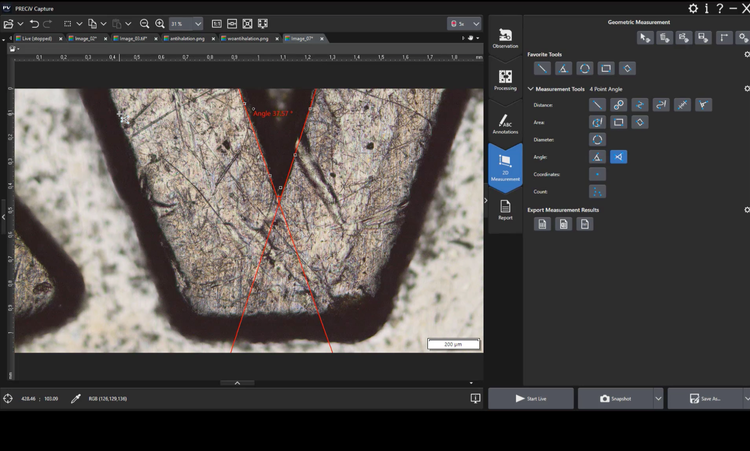

Basic Measurements

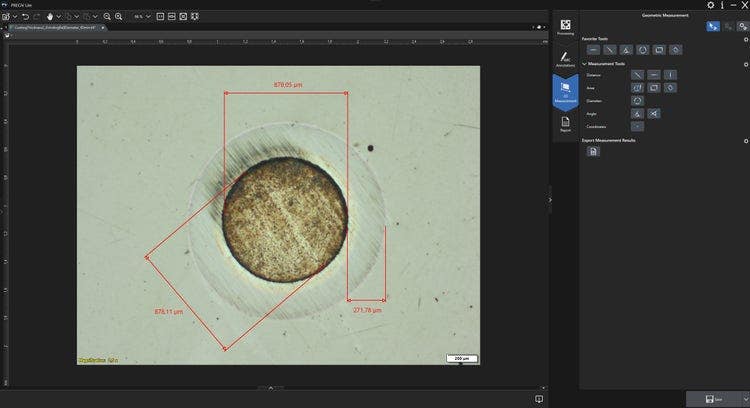

PRECiV Capture software enables precise, repetitive two-dimensional interactive measurements on a live or recorded image through a combination of a simple user interface and powerful functions. Supported measurements include distance, angles, rectangles, circles, ellipses, polygons, circle-to-circle distance, angle ruler, and line ruler. Measurement results can be easily compiled in a workbook.
PRECiV Core
Focused on Image Quality
PRECiV™ Core is ideal for customers in QA labs and inspection rooms with a strong focus on images. PRECiV Core balances cost and features, adding extended focus images and measurement export capabilities for an excellent value.
Designed for Conventional Microscopy
PRECiV Core works with our manual and semi-motorized microscope systems, microscope cameras, and accessories that enable a range of imaging conditions, including brightfield, darkfield, polarization, and anti-halation.
When you install PRECiV Core and any optional modules, all the necessary drivers are also installed. This makes it easy to change which products you’re using.
Supported Microscope Frames
PRECiV Core supports:
| Conventional | Stereo | |||
|
|
|
|
|
|
Supported Cameras
True-to-life images are important for reproducible and high-quality image measurements. Excellent spatial resolution combined with a high pixel count exploit the full optical resolution of the objectives and enable small structures and details within the samples to be imaged, even with low magnification objectives. High-resolution images acquired with PRECiV Core enable users to make observations exclusively on screen without using the eyepieces, turning your system into a digital microscope. PRECiV Core package supports a long list of digital cameras.
PRECiV Core supports our extensive range of digital cameras that can be adapted to our conventional industrial microscope frames. Auto exposure, auto white balance, and focus indicator functions simplify image acquisition. You can adapt the camera mode and resolution to the imaging conditions (monochrome or high color fidelity) and use a focus-aid to capture sharp images. Use the software with multiple screens for enhanced image clarity and sharing.
| Outstanding Performance | Best Lateral Resolution | High-Quality Inspections with 4K | High-Quality Images | Monochrome Images | Excellent Cost Performance | For Infrared (IR) Observation | ||
| DP75 | SC180 | DP28 | DP23 | DP23M | LC35 | HAMAMATSU C12741-03 | ||
| Image Sensor | 1.1 inch Color CMOS |
1/2.3 inch Color CMOS |
1 inch Color CMOS |
1/1.8 inch Color CMOS |
1/1.8 inch Monochrome CMOS |
0.5 inch Color CMOS |
2/3 inch Monochrome InGaAs |
|
| Pixel Density (megapixels) | 12–49 | 18.1 | 8.9 | 6.4 | 6.4 | 3.5 | 640 × 512 | |
| Pixel Size (µm) | 3.45 × 3.45 | 1.25 × 1.25 | 3.45 × 3.45 | 2.4 × 2.4 | 2.4 × 2.4 | 2.64 × 2.64 | 20 × 20 | |
| Frame Rate (fps) | 60–22 | 59–10.5 | 64–32 | 60–45 | 60–45 | 40–19 | 60 | |
| Connection | USB 3.1. Gen 2 | USB 3.0 | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.0 | |
| Windows 10/11—64-bit | Y | Y | Y | Y | Y | Y | Y | |
| Special Features | Switchable IR-cut filter | Focus peaking, Smart image averaging | Global shutter | Rolling shutter | Rolling shutter | Rolling shutter | Peltier cooled | |
|
ADC* *Analog-to-digital converter; the actual bit depth of the camera depends on the software used. |
10-bit | 12-bit | 10-bit | 10-bit | 10-bit | 10-bit | 14-bit | |
| Observation | Bright conditions (e.g., brightfield) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | - |
| Low-light conditions (e.g., darkfield, polarized light, DIC observation) | ✓ | ✓ | ✓ | ✓ | ✓ | - | - | |
| Very dark light conditions (e.g., fluorescence) | ✓ | - | - | - | ✓ | - | - | |
| IR | ✓ Up to 1000 nm |
- | - | - | ✓ Up to 1000 nm |
- | ✓ | |
| Measurement/Analysis | Find minute differences at low magnification | ✓ | ✓ | ✓ | - | - | - | - |
| High-accuracy measurement/analysis | ✓ | ✓ | ✓ | ✓ | - | - | - | |
| Thresholding analysis (B/W mode) | ✓ | - | ✓ | ✓ | ✓ | - | ✓ | |

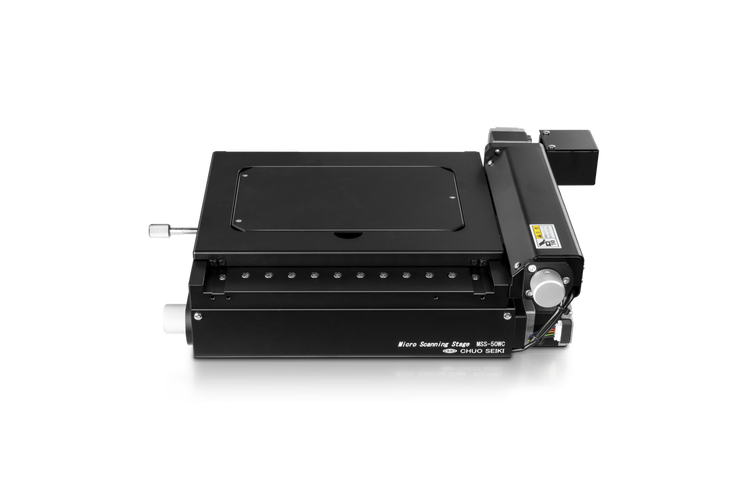

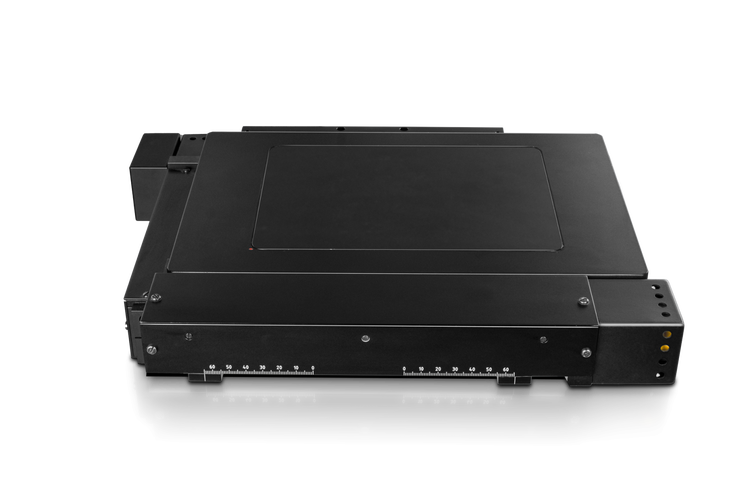

Supported Motorized Stages
Using the optional motorization module, PRECiV Core software can control several third-party X, Y motorized stages and third-party motorized Z focus drives for advanced image acquisition.
| CHUOSEIKI | LUDL | MÄRZHÄUSER | PRIOR | |
| Electronics | QT-ADM3 [RS-232] |
MAC6000 [RS-232 or USB*] |
TANGO [RS-232 or USB*, PCI-e] |
PROSCAN 3 [RS-232 or USB*] |
| BX3M X,Y Stage | MSS-50C-OB 50 × 50 mm MSS-50WC-OB 100 × 50 mm |
96S100 100 × 75 mm (+adapter) |
SCAN 75 × 50 mm SCAN 130 × 85 mm SCAN 225 × 76 mm |
H101B× 114 × 75 mm |
| MX63 / MX63L X,Y Stage | MSS-50C 150 × 150 mm MSS-300C 300 × 300 mm |
99S103-6-LE 204 × 204 mm (+adapter) 99S105-6-LE 305 × 305 mm (+adapter) |
SCAN 200 × 20 mm SCAN 300 × 300 mm |
H105 154 × 154 mm H112 302 × 302 mm |
| GX53 X,Y Stage | 965106-O3-LE 120 × 100 mm |
SCAN IM 114 × 70 mm | H117 114 × 75 mm | |
| Motorized Focus Drive | MSS-FM1 | 96A404 | MFD-2 (BX3M only) MFD |
PS3H122R |
*Virtual COM port (driver needs to be installed, supplied on the PRECiV setup disk)

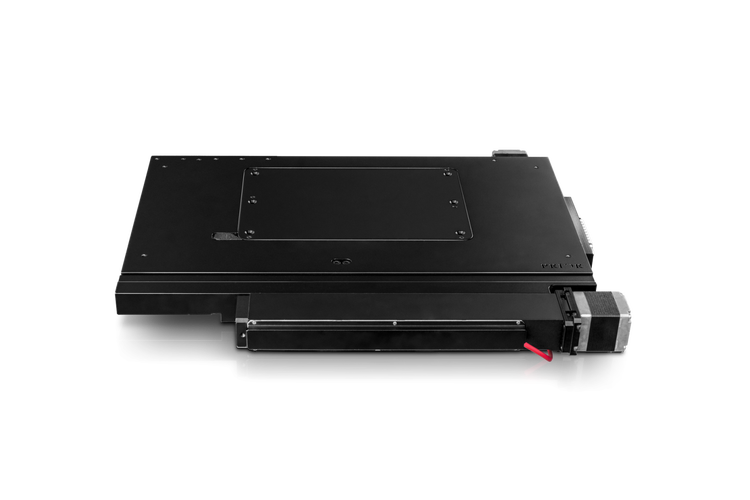

Customized Software Solutions for X, Y, Z Motorized Stages
Specially developed customized software solutions expand the X, Y, Z motorization.
- Macro to micro: Detect structures from an overview image and transform their outline into a scan area for acquisition at higher magnification and further processing.

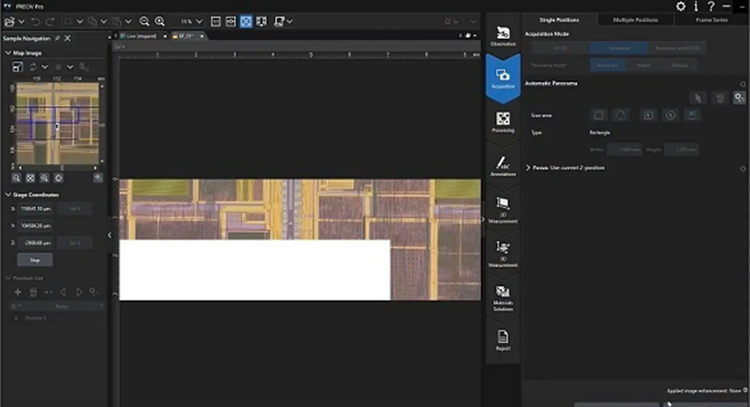

- Navigate on wafer: Define points of interest on a wafer and navigate to various points for image acquisition. Reposition the sample, apply three-point alignment, and navigate using the row and column index on wafers with dies.
- Measuring with stage: The coordinates from a motorized or coded stage are read to set the start and end points of an individual length measurement. The result of the 2D measurement includes the X, Y, Z positions.
Real-Time Image Acquisition
Acquiring high-quality images is easy as the software’s automatic exposure control, live histogram display, and the over-exposure indicator helps ensure that the entire dynamic range of the camera is used while minimizing blooming or glare artifacts. The focus indicator enables you to select a region of interest and bring it into focus. The digital zoom—operated with the mouse wheel—enables you to quickly check the live image window to be sure the camera has captured the desired details—all before you actually acquire and save the image. As a result, images are produced with maximum fidelity and reproducibility, independent of the user.
Powerful Imaging Tools
During live observation or post-acquisition image analysis, PRECiV Core offers several image-enhancing tools that advance your inspection capabilities and increase your probability of detection. PRECiV Core supports:
- Brightfield
- Darkfield
- Polarization
- Differential interference contrast (DIC)
- MIX (brightfield and darkfield)
All imaging filters can also be applied on 4K and larger images.
Robust color rendering and resolution provide the high-quality images required for industrial applications. PRECiV Core also has convenient tools that enable you to optimize the live image, including live high dynamic range (HDR), anti-glare, a digital reticle, and a focus aid.
Enhanced Contrast
High dynamic range (HDR) imaging improves contrast in difficult conditions (very bright areas and very dark areas in the same image). All cameras supported by PRECiV software can be used in this mode, and dedicated cameras have an available live mode.

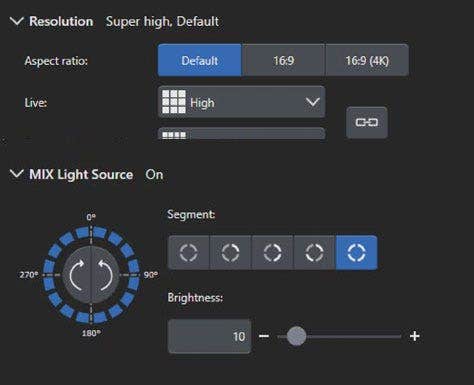

MIX Observation
PRECiV Core supports MIX observation. This technique combines directional darkfield illumination, which uses a circular LED to illuminate one or more quadrants at a given time, and brightfield illumination, fluorescence, or polarization, enabling users to highlight defects and differentiate raised surfaces from depressions that are normally difficult to see with conventional microscopes. MIX observation helps reduce a sample’s halation and is useful for visualizing a sample’s surface texture.
Conventional: brightfield shines the light straight down on the sample while traditional darkfield highlights scratches and imperfections on a flat surface by illuminating the sample from the side of the objective.
Conventional: brightfield shines the light straight down on the sample while traditional darkfield highlights scratches and imperfections on a flat surface by illuminating the sample from the side of the objective.
Advanced: MIX is a combination of brightfield and directional darkfield from a ring of LEDs; the LEDs can be adjusted to select which direction to illuminate from
Keep Everything in Focus with Manual and Instant EFI Modes
When analyzing thick samples, PRECiV Core features instant extended focus imaging (instant EFI) technology that enables you to obtain fully in-focus images by serially acquiring multiple images at different focal planes with manual devices. Starting with a simple mouse click, simply focus through the sharpness levels of your sample from top to bottom (or vice versa), and the program takes a series of snapshots and calculates one sharp image. The result can be viewed in real time during the acquisition process.
Basic Measurements
PRECiV Core software enables precise, repetitive two-dimensional interactive measurements on a live or recorded image through a combination of a simple user interface and powerful functions. Supported measurements include distance, angles, rectangles, circles, ellipses, polygons, circle-to-circle distance, angle ruler, and line ruler,. Measurement results can be easily compiled in a workbook and exported to Microsoft Excel.
Automate Repetitive Tasks with Macros
Macros (succession of simple operations) can be recorded and applied on single images or on series of multiple images automatically. Use the macro recorder to record and play macros easily.
Enhance your Microscopy Experience Using AI
PRECiV software with TruAI deep-learning technology offers image analysis beyond classical algorithms. You can apply a trained neural network to your samples for higher reproducibility and more robust analysis. Choose between semantic or instance segmentation methods for improved neural network training, enabling you to tackle difficult applications in just one step.
Live AI
Live AI* is a powerful tool for everyday use. It displays detected features directly on the live image using an overlay. This lets you easily screen the sample for any wanted or unwanted blobs without altering the image itself. Live AI can also be used to improve the image quality, such as removing unwanted scratches, for enhanced analysis. As an option, PRECiV TruAI technology can also count the defects it identifies on the live image as well.**
*Using the optional neural network training module.
**Using the optional Count and Measure or dedicated Materials Solutions (Phase Analysis, Particle Distribution, Porosity).
Neural Network Integration (AI)
PRECiV software’s AI can be used on a PC even when it is offline.* The training is performed on the supplied dataset, and the resulting quality of the AI analysis depends on the images provided for the training.
- Ideal solution for demanding applications requiring complex image analysis
- Use trained neural networks for image segmentation in Count and Measure and selected Materials Solutions
- Use trained neural networks to create a probability map for image feature discrimination
- Train neural networks using semantic (focusing on phase detection) or instance (focusing on object counting) segmentation methods
- Simple interactive training interface for quick training of the neural network when a small number of objects needs to be detected
- Remove unwanted scratches or texture on the observed live image without altering the original data
*PRECiV AI technology does not use generative AI. PRECiV AI is independent from the network and can be used on a PC that is disconnected.
PRECiV Pro
Robust Measurement and Reporting
PRECiV™ Pro has the complete set of features and functions, making it the most powerful and versatile version of the software. The Pro version has the tools required for customers in QA/QC, failure analysis, and anyone who needs to produce analytical reports and measurements to validate a sample or production lot.
Designed for Conventional Microscopy
PRECiV Pro works with our manual and semi-motorized microscope systems, microscope cameras, and accessories that enable a range of imaging conditions, including brightfield, darkfield, polarization, and anti-halation.
When you install PRECiV Pro and any optional modules, all the necessary drivers are also installed. This makes it easy to change which products you’re using.
Supported Microscope Frames
PRECiV Pro supports:
| Conventional | Stereo | |||
|
|
|
|
|
|
Supported Cameras
True-to-life images are important for reproducible and high-quality image measurements. Excellent spatial resolution combined with a high pixel count exploit the full optical resolution of the objectives and enable small structures and details within the samples to be imaged, even with low magnification objectives. High-resolution images acquired with PRECiV Pro enable users to make observations exclusively on screen without using the eyepieces, turning your system into a digital microscope. PRECiV Pro package supports a long list of digital cameras.
PRECiV Pro supports our extensive range of digital cameras that can be adapted to our conventional industrial microscope frames. Auto exposure, auto white balance, and focus indicator functions simplify image acquisition. You can adapt the camera mode and resolution to the imaging conditions (monochrome or high color fidelity) and use a focus-aid to capture sharp images. Use the software with multiple screens for enhanced image clarity and sharing.
| Outstanding Performance | Best Lateral Resolution | High-Quality Inspections with 4K | High-Quality Images | Monochrome Images | Excellent Cost Performance | For Infrared (IR) Observation | ||
| DP75 | SC180 | DP28 | DP23 | DP23M | LC35 | HAMAMATSU C12741-03 | ||
| Image Sensor | 1.1 inch Color CMOS |
1/2.3 inch Color CMOS |
1 inch Color CMOS |
1/1.8 inch Color CMOS |
1/1.8 inch Monochrome CMOS |
0.5 inch Color CMOS |
2/3 inch Monochrome InGaAs |
|
| Pixel Density (megapixels) | 12-49 | 18.1 | 8.9 | 6.4 | 6.4 | 3.5 | 640 × 512 | |
| Pixel Size (µm) | 3.45 × 3.45 | 1.25 × 1.25 | 3.45 × 3.45 | 2.4 × 2.4 | 2.4 × 2.4 | 2.64 × 2.64 | 20 × 20 | |
| Frame Rate (fps) | 60–22 | 59–10.5 | 64–32 | 60–45 | 60–45 | 40–19 | 60 | |
| Connection | USB 3.1. Gen 2 | USB 3.0 | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.1 Type-C | USB 3.0 | |
| Windows 10/11—64-bit | Y | Y | Y | Y | Y | Y | Y | |
| Special Features | Switchable IR-cut filter | Focus peaking, Smart image averaging | Global shutter | Rolling shutter | Rolling shutter | Rolling shutter | Peltier cooled | |
| ADC* *Analog-to-digital converter; the actual bit depth of the camera depends on the software used. |
10-bit | 12-bit | 10-bit | 10-bit | 10-bit | 10-bit | 14-bit | |
| Observation | Bright conditions (e.g., brightfield) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | - |
| Low-light conditions (e.g., darkfield, polarized light, DIC observation) | ✓ | ✓ | ✓ | ✓ | ✓ | - | - | |
| Very dark light conditions (e.g., fluorescence) | ✓ | - | - | - | ✓ | - | - | |
| IR | ✓ Up to 1000 nm |
- | - | - | ✓ Up to 1000 nm |
- | ✓ | |
| Measurement/Analysis | Find minute differences at low magnification | ✓ | ✓ | ✓ | - | - | - | - |
| High-accuracy measurement/analysis | ✓ | ✓ | ✓ | ✓ | - | - | - | |
| Thresholding analysis (B/W mode) | ✓ | - | ✓ | ✓ | ✓ | - | ✓ | |
Supported Motorized Stages
Using the optional motorization module, PRECiV Pro software can control several third-party X, Y motorized stages and third-party motorized Z focus drives for advanced image acquisition.
| CHUOSEIKI | LUDL | MÄRZHÄUSER | PRIOR | |
| Electronics | QT-ADM3 [RS-232] |
MAC6000 [RS-232 or USB*] |
TANGO [RS-232 or USB*, PCI-e] |
PROSCAN 3 [RS-232 or USB*] |
| BX3M X,Y Stage | MSS-50C-OB 50 × 50 mm MSS-50WC-OB 100 × 50 mm |
96S100 100 × 75 mm (+adapter) |
SCAN 75 x 50 SCAN 130 × 85 SCAN 225 × 76 |
H101BX 114 × 75 mm |
| MX63 / MX63L X,Y Stage | MSS-50C 150 × 150 mm MSS-300C 300 × 300 mm |
99S103-6-LE 204 x 204 mm (+adapter) 99S105-6-LE 305 x 305 mm (+adapter) |
SCAN 200 x 200 SCAN 300 x 300 |
H105 154 × 154 mm H112 302 × 302 mm |
| GX53 X,Y Stage | 965106-O3-LE 120 × 100 mm |
SCAN IM 114 × 70 | H117 114 × 75 mm | |
| Motorized Focus Drive | MSS-FM1 | 96A404 | MFD-2 (BX3M only) MFD |
PS3H122R |
*Virtual COM port (driver needs to be installed, supplied on the PRECiV setup disk)
Customized Software Solutions for X, Y, Z Motorized Stages
Specially developed customized software solutions expand the X, Y, Z motorization.
- Macro to micro: Detect structures from an overview image and transform their outline into a scan area for acquisition at higher magnification and further processing.
- Navigate on wafer: Define points of interest on a wafer and navigate to various points for image acquisition. Reposition the sample, apply three-point alignment, and navigate using the row and column index on wafers with dies.
- Measuring with stage: The coordinates from a motorized or coded stage are read to set the start and end points of an individual length measurement. The result of the 2D measurement includes the X, Y, Z positions.
Real-Time Image Acquisition
All PRECiV packages come with digital live processing technology that enable you to, for example, zoom in on a live image to proof details or make interactive measurements.
Acquiring high-quality images is easy as the software’s automatic exposure control, live histogram display, and the over-exposure indicator helps ensure that the entire dynamic range of the camera is used while minimizing blooming or glare artifacts. The focus indicator enables you to select a region of interest and bring it into focus. The digital zoom—operated with the mouse wheel—enables you to quickly check the live image window to be sure the camera has captured the desired details—all before you actually acquire and save the image. As a result, images are produced with maximum fidelity and reproducibility, independent of the user.
Video Recording and Time-Lapse Imaging
You can easily record videos or use the time-lapse acquisition mode to acquire and process time-lapse series.
Powerful Imaging Tools
During live observation or post-acquisition image analysis, PRECiV Pro offers several image-enhancing tools that advance your inspection capabilities and increase your probability of detection. PRECiV Pro supports:
- Brightfield
- Darkfield
- Polarization
- Differential interference contrast (DIC)
- MIX (brightfield and darkfield)
All imaging filters can also be applied on 4K and larger images.
Robust color rendering and resolution provide the high-quality images required for industrial applications. PRECiV Pro also has convenient tools that enable you to optimize the live image, including live high dynamic range (HDR), anti-glare, a digital reticle, and a focus aid.
Enhanced Contrast
High dynamic range (HDR) imaging improves contrast in difficult conditions (very bright areas and very dark areas in the same image). All cameras supported by PRECiV Pro can be used in this mode, and dedicated cameras have an available live mode.
MIX Observation
PRECiV Pro supports MIX observation. This technique combines directional darkfield illumination, which uses a circular LED to illuminate one or more quadrants at a given time, and brightfield illumination, fluorescence, or polarization, enabling users to highlight defects and differentiate raised surfaces from depressions that are normally difficult to see with conventional microscopes. MIX observation helps reduce a sample’s halation and is useful for visualizing a sample’s surface texture.
Conventional: brightfield shines the light straight down on the sample while traditional darkfield highlights scratches and imperfections on a flat surface by illuminating the sample from the side of the objective.
Conventional: brightfield shines the light straight down on the sample while traditional darkfield highlights scratches and imperfections on a flat surface by illuminating the sample from the side of the objective.
Advanced: MIX is a combination of brightfield and directional darkfield from a ring of LEDs; the LEDs can be adjusted to select which direction to illuminate from
Acquire Combined Panorama and EFI Images
The extended focus imaging (EFI) function enables you to obtain fully in-focus images by serially acquiring multiple images at different focal planes with manual and motorized devices. In manual mode, the panorama function enables you to acquire images larger than the microscope’s field of view by moving the stage across the sample manually or using an automated stage. Using PRECiV Pro software, you can now combine the instant EFI and panorama functions—even for manual microscope stages—while keeping both hands on the microscope. A colored frame indicator shows the quality of each image being stitched together, while a split screen shows the live image and stitched image side by side. With motorized devices, the acquisition of such combined panorama and EFI images runs completely automatically.*
*Requires the optional Motorization or 3D Acquisition modules.
Easily access panorama mode to automatically or manually acquire panoramic images
EFI enables you to quickly acquire all-in-focus images manually or automatically
Combine the panorama and EFI functions to obtain large, fully in focus images
Advanced Interactive Measurements
PRECiV Pro enables precise, repetitive two-dimensional measurements on a live or recorded image through a combination of a simple user interface and powerful functions like auto edge detection, which makes it easy to reliably measure the distance between points. Other helpful measurement features include:
- Edge-detected circles
- Magic wand for automatic area detection
- Auxiliary lines to easily make complex geometric measurements
- The ability to link objects to connect existing measurements
Measurement results can be compiled in a workbook and easily exported to Excel.
Automate Repetitive Tasks with Macros
Macros (succession of simple operations) can be recorded and applied on single images or on series of multiple images automatically. Use the macro recorder to record and play macros easily.
Enhance your Microscopy Experience Using AI
PRECiV software with TruAI deep-learning technology offers image analysis beyond classical algorithms. You can apply a trained neural network to your samples for higher reproducibility and more robust analysis. Choose between semantic or instance segmentation methods for improved neural network training, enabling you to tackle difficult applications in just one step.
Live AI
Live AI* is a powerful tool for everyday use. It displays detected features directly on the live image using an overlay. This lets you easily screen the sample for any wanted or unwanted blobs without altering the image itself. Live AI can also be used to improve the image quality, such as removing unwanted scratches, for enhanced analysis. As an option, PRECiV TruAI technology can also count the defects it identifies on the live image as well.**
*Using the optional neural network training module.
**Using the optional Count and Measure or dedicated Materials Solutions (Phase Analysis, Particle Distribution, Porosity).
Neural Network Integration (AI)
PRECiV software’s AI can be used on a PC even when it is offline.* The training is performed on the supplied dataset, and the resulting quality of the AI analysis depends on the images provided for the training.
- Ideal solution for demanding applications requiring complex image analysis
- Use trained neural networks for image segmentation in Count and Measure and selected Materials Solutions
- Use trained neural networks to create a probability map for image feature discrimination
- Train neural networks using semantic (focusing on phase detection) or instance (focusing on object counting) segmentation methods
- Simple interactive training interface for quick training of the neural network when a small number of objects needs to be detected
- Remove unwanted scratches or texture on the observed live image without altering the original data
*PRECiV AI technology does not use generative AI. PRECiV AI is independent from the network and can be used on a PC that is disconnected.
Professional report that summarizes particle count data, including image details using digital zooming
Efficient Report Creation
Creating a report often takes longer than capturing the image and taking the measurements. PRECiV Pro provides intuitive report creation to repeatedly produce smart and sophisticated reports based on predefined and customized templates. Editing is simple, and reports can be exported to Microsoft Word, Excel, or PowerPoint.
PRECiV DSX
PRECiV™ DSX for Digital Microscopes
PRECiV DSX enables you to control our DSX series digital microscopes, including DSX2000 and DSX1000 systems. The software streamlines your inspection workflow with control of macro-to-micro observation, multiple observation methods at the push of a button, and easy objective lens changes.
Supports Your Modular Microscope Setup
PRECiV DSX supports all DSX series digital microscope models and associated accessories.
Supported Hardware
- Configurations with the tilting and upright frames
- Universal, standard, and motorized zoom heads
- DSX consoles
- A variety of motorized stages
Supported Objective Lenses
PRECiV DSX supports a lineup of up to 20 objective lenses for DSX series digital microscopes, including super long working distance and high numerical aperture options.
Best Image Observation
With a single click, PRECiV DSX can instantly switch between all available observation conditions (brightfield, oblique, darkfield, polarization, MIX illumination, differential interference contrast (DIC), and shaded relief), guiding you to the best image possible for the sample under analysis.
Shaded Relief Observation
PRECiV DSX works with our unique shaded relief observation method on the DSX2000 microscope. Use this method to reveal ultra-fine, hard-to-see defects in real time, without post-processing delays. Move the stage and scan your sample seamlessly, viewing shaded relief images instantly for fast, thorough inspections.
Requires Minimal Training
By following a predefined inspection in EZ mode, everyone on the team can perform an efficient microscopy analysis with minimal training. The PRECiV DSX interface also offers full control to expert users in the flexible inspection mode for more advanced analyses.
Advanced Interactive Measurements
PRECiV DSX enables precise, repetitive two-dimensional measurements on a live or recorded image through a combination of a simple user interface and powerful functions like auto edge detection, which makes it easy to reliably measure the distance between points. Other helpful measurement features include:
- Edge-detected circles
- Magic wand for automatic area detection
- Auxiliary lines to easily make complex geometric measurements
- The ability to link objects to connect existing measurements
Simple and Advanced 3D Measurements
Simple 3D measurements (line profile) are available in PRECiV DSX on all images with height information. For advanced measurements (surface roughness, volume measurement), PRECiV DSX can export images directly to the 3D analysis application for further processing and analysis.
Simple 3D measurements (line profile) are available in PRECiV software on all images with height information.
For advanced measurements (surface roughness, film thickness, and volume measurement) PRECiV software can export images directly to the 3D analysis application.
Acquire Combined Panorama and EFI Images
The extended focus imaging (EFI) function enables you to obtain fully in-focus images by serially acquiring multiple images at different focal planes with manual and motorized devices. The panorama function enables you to acquire images larger than the microscope’s field of view. With PRECiV DSX you can calculate EFI and panorama images offline based on previously acquired images.
Enhance your Microscopy Experience Using AI
PRECiV software with TruAI deep-learning technology offers image analysis beyond classical algorithms. You can apply a trained neural network to your samples for higher reproducibility and more robust analysis. Choose between semantic or instance segmentation methods for improved neural network training, enabling you to tackle difficult applications in just one step.
Live AI
Live AI* is a powerful tool for everyday use. It displays detected features directly on the live image using an overlay. This lets you easily screen the sample for any wanted or unwanted blobs without altering the image itself. Live AI can also be used to improve the image quality, such as removing unwanted scratches, for enhanced analysis. As an option, PRECiV TruAI technology can also count the defects it identifies on the live image as well.**
*Using the optional neural network training module.
**Using the optional Count and Measure or dedicated Materials Solutions (Phase Analysis, Particle Distribution, Porosity).
Neural Network Integration (AI)
PRECiV software’s AI can be used on a PC even when it is offline.* The training is performed on the supplied dataset, and the resulting quality of the AI analysis depends on the images provided for the training.
- Ideal solution for demanding applications requiring complex image analysis
- Use trained neural networks for image segmentation in Count and Measure and selected Materials Solutions
- Use trained neural networks to create a probability map for image feature discrimination
- Train neural networks using semantic (focusing on phase detection) or instance (focusing on object counting) segmentation methods
- Simple interactive training interface for quick training of the neural network when a small number of objects needs to be detected
- Remove unwanted scratches or texture on the observed live image without altering the original data
*PRECiV AI technology does not use generative AI. PRECiV AI is independent from the network and can be used on a PC that is disconnected.
PRECiV ADM
Simplify Your Technical Cleanliness
Technical cleanliness is critical in manufacturing. With PRECiV ADM* software, the DSX2000 digital microscope delivers clear insight into particle count, size, and characteristics in one easy-to-use platform. Compliant results are customized to company and industry standards, including ISO 16232 and VDA 19, in just one click.
*PRECiV ADM is available only on the MZH model.
Intuitive Guidance
- Dedicated workflows minimize user action and provide reliable data, independent of the operator and experience level
- User-friendly tools make it easy to revise inspection data
- Step-by-step guidance boosts productivity and shortens inspection time
- User rights management restricts functions to minimize human errors
- Touch screen support with large buttons that are easy to click
- All data are saved automatically and can be easily exported and shared
Efficient Data Evaluation
Revise inspection data with easy-to-use tools that support company and international standards for cleanliness inspection. Clear representation of all relevant results saves time.
- Organized arrangement of images and data for efficient data review
- Various selectable views for immediate particle identification
- Particle locations and thumbnails are linked to the live images
- Easy reclassification, review, revision, and recalculation of inspection data
- Live display of the overall cleanliness code, particles, and classification tables
- Trend analysis to identify potential measurement deviations over time
- Display the complete inspection data in one view
Compliant Report Creation
One-click reporting meets the requirements and methodologies in international standards. Report customization (such as including particle morphology), makes it easy to meet company standards.
- Generate professional reports with predefined, compliant templates
- Easily adapt templates and reports to meet industry and company regulations
- Supports various output formats, including Microsoft Word and PDF
- Report file sizes are optimized for easy results sharing
- Long-term data storage so you can justify a decision years later
Versatility for Common Sampling Methods
PRECiV ADM supports both circular and rectangular inspection areas to suit different sampling methods in technical cleanliness standards.
- Sample holder options for different filter sizes, tape lift samples, flat metallurgy surfaces, and particle traps
- Software automatically recognizes the holder type and inspection area, helping ensure consistent results
Top and middle: circular sample holders with white and black backgrounds for filter membranes with diameters of 25 mm, 47 mm, and 55 mm. Bottom left: circular sample holder for particle traps. Bottom right: rectangular sample holder for tape lift sampling.*
*Availability of the tape lift holder may vary by region.
PRECiV Desktop
Robust Measurement and Reporting
PRECiV™ Desktop software is made for customers who want to post-process their data independent from the microscope with all the available measurement and analysis capabilities, but without the camera and image capture controls.
Image Processing (Matrix Filters and Color and Contrast Adjustments)
If you need to process your images, PRECiV Desktop offers many tools such as edge detection filters, smoothing filters, and sharpening filters as well as intensity and contrast adjustments, shading correction and background subtraction, dynamic contrast enhancement, and morphological filters.
Advanced Interactive Measurements
PRECiV Desktop enables precise, repetitive two-dimensional measurements on recorded images through a combination of a simple user interface and powerful functions like auto edge detection, which makes it easy to reliably measure the distance between points. Other helpful measurement features include:
- Edge-detected circles
- Magic wand for automatic area detection
- Auxiliary lines to easily make complex geometric measurements
- The ability to link objects to connect existing measurements
Measurement results can be compiled in a workbook and easily exported to Excel.
Automate Repetitive Tasks with Macros
Macros (succession of simple operations) can be recorded and applied on single images or on series of multiple images automatically. Use the macro recorder to record and play macros easily.
3D Solution
Measurements of 3D profiles and surface roughness are also available in PRECiV software. The basic 3D solution extracts the 3D profile from any 3D image acquired with EFI, any 3D Z-stack, or any file containing height information. Working with all microscopes, this powerful method evaluates the surface condition of the sample.
For advanced 3D measurements, it is possible to connect your acquired images with the expert 3D analysis application for all roughness measurement techniques on the profile or areal level. PRECiV software can export data using the OIR file format for better compatibility with systems such as our LEXT™ series laser confocal microscopes.
Simple 3D measurements (line profile) are available in PRECiV software on all images with height information.
For advanced measurements (surface roughness, film thickness, and volume measurement) PRECiV software can export images directly to the 3D analysis application.
Enhance your Microscopy Experience Using AI
PRECiV software with TruAI deep-learning technology offers image analysis beyond classical algorithms. You can apply a trained neural network to your samples for higher reproducibility and more robust analysis. Choose between semantic or instance segmentation methods for improved neural network training, enabling you to tackle difficult applications in just one step.
Neural Network Integration (AI)
PRECiV software’s AI can be used on a PC even when it is offline.* The training is performed on the supplied dataset, and the resulting quality of the AI analysis depends on the images provided for the training.
- Ideal solution for demanding applications requiring complex image analysis
- Use trained neural networks for image segmentation in Count and Measure and selected Materials Solutions
- Use trained neural networks to create a probability map for image feature discrimination
- Train neural networks using semantic (focusing on phase detection) or instance (focusing on object counting) segmentation methods
- Simple interactive training interface for quick training of the neural network when a small number of objects needs to be detected
- Remove unwanted scratches or texture on the observed live image without altering the original data
*PRECiV AI technology does not use generative AI. PRECiV AI is independent from the network and can be used on a PC that is disconnected.
Professional report that summarizes particle count data, including image details using digital zooming
Efficient Report Creation
Creating a report often takes longer than capturing the image and taking the measurements. PRECiV Desktop provides intuitive report creation to repeatedly produce smart and sophisticated reports based on predefined and customized templates. Editing is simple, and reports can be exported to Microsoft Word, Excel, or PowerPoint.
Specifications
PRECiV™ Version 3.1 Specifications
●: Standard Feature; ○: Optional Feature; — Not available
| Capture | Core | Pro | DSX | ADM | CIX | Desktop | |
| Image Acquisition | |||||||
| Basic image acquisition from Evident cameras, including autocalibration | ● | ● | ● | — | — | — | — |
| Extended image acquisition, including HDR, Live HDR (with the DP74 and DP75) and position navigator | ● | ● | ● | — | — | — | — |
| Halation removal using the MIX slider (microscope) or LED ring light (stereo microscope) | — | ● | ● | ● | ● | — | — |
| Best image function (all modes, SR, BF, OBQ, DF, MIX, PO, DIC) | — | — | — | ● | ● | — | — |
| VIdeo recording | ● | ● | ● | ● | ● | ○ | — |
| Time-lapse acquisition | — | ○ | ● | ● | ● | — | — |
| Extended focal image (EFI) using manual or instant mode | — | ● | ● | ● | ● | ○ | — |
| Large-size image acquisition (panorama) using manual or instant mode | — | ○ | ● | ● | ● | ○ | — |
| Combined EFI and panorama using manual mode | — | ○ | ● | ● | ● | ○ | — |
| Automatic EFI using motorized devices, including quick scan mode | — | ○ | ○ | ● | ● | ○ | — |
| Automatic panorama using motorized devices | — | ○ | ○ | ● | ● | ○ | — |
| Sample navigation and position list management using motorized devices | — | ○ | ○ | ● | ● | ○ | — |
| Combination of automatic EFI and panorama using motorized devices | — | ○ | ○ | ● | ● | ○ | — |
| Continuous autofocus*1 | — | — | — | ● | ● | — | — |
| Imaging and Customization Tools | |||||||
| User interface with functions grouped by purpose | ● | ● | ● | ● | ● | ○ | ● |
| Overlay information layer (scale bar, crosshair, digital reticle) | ● | ● | ● | ● | ● | ○ | ● |
| On-screen magnification | ● | ● | ● | ● | ● | ○ | — |
| Macro Manager | — | ● | ● | ● | ● | ○ | ● |
| Static annotations | ● | ● | ● | ● | ● | ○ | ● |
| Live zoom | ● | ● | ● | ● | ● | ○ | — |
| Measurements/Image Analysis | |||||||
| Basic interactive measurements (horizontal line, vertical line, arbitrary line, polyline, 3-point circle, rectangle, rotated rectangle, 3-point angle, 4-point angle, perpendicular line, parallel line distance, polygon area, XY distance, distance between two crosslines, circle-to-circle distance, linear ruler, point coordinates) | ● | ● | ● | ● | ● | ○ | ● |
| 3D line profile measurement and simple 3D measurements | — | ○ | ○ | ● | ● | ○ | ● |
| 3D analysis applications: 3D line profile measurements, advanced 3D measurements, and surface roughness analysis of 3D images | — | ○ | ○ | ○ | ○ | ○ | ○ |
| 2D line profile measurements | — | ○ | ● | ● | ● | ○ | ● |
| Advanced interactive measurement, including auto-edge detection and auxiliary lines (angle ruler, 2-point circle, rotated ellipse, closed polygon, magic wand, interpolated polygon, multiple perpendicular lines, asymmetry lines, throat thickness) | — | ○ | ● | ● | ● | ○ | ● |
| Neural network labeling | — | ● | ● | ● | ● | ○ | ● |
| Live AI | — | ● | ● | ● | ● | ○ | ● |
| Offline EFI, offline panorama | — | ○ | ○ | ● | ● | ○ | ● |
| Image enhancement filters (edge detection filters, smoothing filters, and sharpening filters), intensity and contrast adjustment, shading correction and background subtraction, dynamic contrast enhancement, morphological filters | — | ● | ● | ● | ● | ○ | ● |
| Technical cleanliness analysis | — | — | — | — | ● | ● | — |
| Reporting | |||||||
| Data export to an Evident workbook | ● | ● | ● | ● | ● | ○ | ● |
| Data export to Microsoft Excel | — | ● | ● | ● | ● | ● | ● |
| Report and presentation creation in Microsoft 365/Microsoft Office 365 (32-bit/64-bit), Office 2021 (32-bit/64-bit), and Office 2019 (32-bit/64-bit) | — | ○ | ● | ● | ● | ○ | ● |
| Device Support*2 | |||||||
| Evident microscopes*3 and Evident cameras*4 | ● | ● | ● | — | — | — | — |
| SZX2-ZMS zoom magnification sensor for SZX7, SZX10, and SZX16 stereo microscopes | ● | ● | ● | — | — | — | — |
| Third-party X,Y motorized stages (Ludl, Prior, Märzhäuser, Chuo Seiki)*5 | — | ○ | ○ | — | — | — | — |
| Third-party X,Y motorized focus drives (Ludl, Prior, Märzhäuser, Chuo Seiki)*5 | — | ○ | ○ | — | — | — | — |
| Third-party SWIR camera | — | ○ | ○ | — | — | — | — |
| DSX2000/DSX1000 system, console, and macro camera | — | — | — | ● | ● | — | — |
| Optional Add-Ons | |||||||
| Motorization | — | ○ | ○ | ● | ● | — | — |
| 3D Acquisition | — | ○ | ○ | ● | ● | — | — |
| Count and Measure | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Grain Sizing | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Non-Metallic Inclusions | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Cast Iron | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Layer Thickness | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Measurement Sequence | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Porosity | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Particle Distribution | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Coating Thickness | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Phase Analysis | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Neural Network Training | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Dendrite Arm Spacing | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Chart comparison on select standards for grain size, graphite evaluation, non-metallic inclusions, and hard metals | — | ○ | ○ | ○ | ○ | ○ | ○ |
| Customized software solutions | — | ○ | ○ | ○ | ○ | ○ | ○ |
*1 DSX2000 only.
*2 Please contact Evident for supported device information.
*3 Supports BX41M-LED, BX51, BX51M, BX53M, GX41, GX51, GX53, GX71, MX51, MX63, MX63L, SZ61, SZX7, SZX9, SZX10, SZX12, SZX16, BX3M-CB, BX3M-CBFM, BXFM, DSX1000, and DSX2000.
*4 Supports the LC30, LC35, DP22, DP23, DP23M, DP27, DP28, DP73, DP73 WDR, DP74, DP75, SC30, SC50, SC100, SC180, and UC90 microscope cameras.
*5 Supports Chuo Seiki: QT-ADM3, MSS-50C-OB, MSS-50WC-OB, MSS-150C, MSS-399C, MSSS-FM1; Ludl: MAC6000, 96S100, 96S109-LE, 96S103-6-LE, 96S106-O3-LE, 96A404; Märzhäuser: TANGO, SCAN 75x50, SCAN130x85, SCAN 225x76, SCAN 200x200, SCAN 300x300, MFD-2; Prior: ProScan 3, ES111, H101F, H105, H112, H117, PS3H122R.
PC Requirements for PRECiV Capture/Core/Pro/Desktop v. 3.1
Min. 50 GB for saving images and data
Special requirements to the memory for certain functionality:
Training of neural networks: 32 GB RAM
3D analysis application: 32 GB RAM
1920 × 1080 (Full HD)
3840 × 2160 (4K), 27/32 in. (150% display scaling)
Special requirements to the graphics board for certain functionality
PC Requirements for PRECiV DSX v. 3.1
Min. 50 GB for saving images and data
Special requirements to the memory for certain functionality:
Training of neural networks: 32 GB RAM
3D analysis application: 32 GB RAM
1920 × 1080 (Full HD)
3840 × 2160 (4k), 27/32 in. (150% display scaling)
64-bit graphics board equivalent to a NVIDIA Quadro P620 / T600 / T400 / T1000 / A400 / A1000 with a minimum of 4 GB RAM
Special requirements to the graphics board for certain functionality:
• Training of neural networks: NVIDIA graphics board compatible with CUDA 11, 8 GB RAM
Resources
Insights
Videos
PRECiV License Activation
PRECiV License Deactivation
PRECiV Installation
https://adobeassets.evidentscientific.com/content/dam/mis/preciv/media/video/PRECiV_2.2_fv.mp4
Introducing PRECiV v2.2
https://adobeassets.evidentscientific.com/content/dam/mis/preciv/media/video/PRECiV_DSX_2.2.1_fv.mp4
Introducing PRECiV DSX v2.2.1
Harnessing Operational Excellence: Advanced Imaging and Measurement for Quality Control and Inspection with PRECiV™ Software
PRECiV™ Customized Solution: Navigate on Wafer
PRECiV™ Tutorial: Automated EFI Image Acquisition
https://adobeassets.evidentscientific.com/content/dam/video/videolibrary/videos/EFI_Panorama_fv.mp4
