BXFM Focus Mount

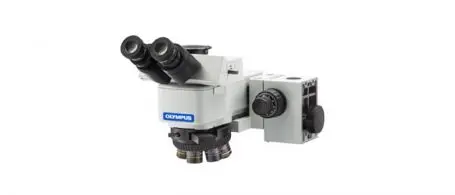

The BXFM is our most versatile focus mount which accepts numerous optical and lighting components. The ability to utilize high performance vertical illuminators provides the utmost optical versatility for numerous applications. The focus mount can be easily adapted to an optical bench, plain stand, or integrated into your system due to its compact design and convenient mounting surface.
Overview
The BXFM is our most versatile focus mount which accepts numerous optical and lighting components. The ability to utilize high performance vertical illuminators provides the utmost optical versatility for numerous applications. The focus mount can be easily adapted to an optical bench, plain stand, or integrated into your system due to its compact design and convenient mounting surface.
Clear Observation Images with UIS2 Objective Lens
Excellent Image Clarity and Superb Resolution with UIS2 Optics
Example Observation Images
Brightfield
Darkfield
DIC
Fluorescence
Diverse Lineup Allows Selections According to the Purpose
Click here for details about UIS2 objective lenses
Meeting Inspection Needs with Speed and Efficiency
Motorized Revolving Nosepiece
A high speed motorized revolving nosepiece provides instant switchover from one objective to another while decreasing potential sample contamination from an operator. Controlled via a handswitch or PC
Motorized Revolving Nosepieces
Quick Rotation of Objectives
Centering Revolving Nosepiece
The built in centering adjustment of the quintuple or sextuple revolving nosepiece ensures the center of an image will not deviate with the change of objectives.
U-P5BDRE
U-P6RE
Illumination Systems
Olympus offers a wide choice of external light sources to meet your inspection needs. Choose from standard halogen, mercury, or Xenon.
Lamp House Options
Light Sources
Recording and Storage of Digital Images
Olympus is passionate about photography and digital imaging. Our cameras for microscopy continue to deliver breakthrough technology and reliable performance to meet the diverse range of industrial applications. Choose from a wide variety of models which attach to microscopes via a c-mount thread and are fully controlled using the Olympus imaging software.
Click here for the Olympus lineup of digital cameras
Click here for the Olympus lineup of software solutions
Specifications
System Industrial Microscope BXFM Specifications
| Optical System | UIS2 Optical System (Infinity-corrected) | ||
| Microscope Frame | Observation Method | BF/DF/DIC/KPO*/FL | |
| Reflected/Transmitted | Reflected | ||
| Illuminator | Reflected Illuminator for BF/DF (BF/DF/DIC/KPO*) Universal Reflected Illuminator (BF/DF/DIC/KPO*/FL) |
||
| Illumination System | Reflected Light | 100 W Halogen/100 W Mercury/75 W Xenon/Fiber Light Guide | |
| Transmitted Light | - | ||
| Focus | Motorized/Manual | Manual | |
| Stroke | 30 mm | ||
| Resolution/Fine Adjustment Sensitivity | Fine Stroke per Rotation 0.2 mm | ||
| Maximum Specimen Height | - | ||
| Revolving Nosepiece | Motorized Type | Sextuple for BF/DIC Quintuple for BF/DF/DIC Centerable Quintuple for BF/DF/DIC Sextuple for BF/DF/DIC |
|
| Manual Type | Quintuple for BF Sextuple for BF/DIC Centerable Sextuple for BF/DIC Septipule for BF/DIC Quintuple for BF/DF Quintuple for BF/DF/DIC Centerable Quintuple for BF/DF/DIC Sextuple for BF/DF/DIC |
||
| Stage | Stroke | - | |
| Observation Tube | Widefield (Field Number 22) | Inverted Image | Binocular/Trinocular/Tilting Binocular Observation Tube/Tube lens unit |
| Erect Image | Trinocular/Tilting Binocular Observation Tube/Tube lens unit | ||
| Super Wide Field (Field Number 26.5) | Inverted Image | Trinocular Observation Tube/Tube lens unit | |
| Erect Image | Trinocular/Tilting Trinocular Observation Tube/Tube lens unit | ||
| Option Unit | IR Unit | ||
| Dimensions | 248(W)x587(D)x249(H)mm (in Standard Combination) | ||
| Weight | 9 kg (in Standard Combination) | ||
| Remark | *Simple Polarized Light Observation |
