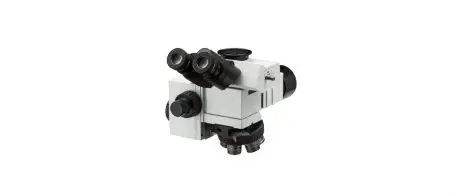

BXFM-S
The BXFM-S is a cost-effective, space-saving focus mount for brightfield microscopy. The focus mount can be used for optical bench, plain stand, or system integration due to its compact design and convenient mounting surface. Accepts a variety of objectives having standard or long working distances.
Overview
The BXFM-S is a cost-effective, space-saving focus mount for brightfield microscopy. The focus mount can be used for optical bench, plain stand, or system integration due to its compact design and convenient mounting surface. Accepts a variety of objectives having standard or long working distances.
Clear Observation Images with UIS2 Objective Lens
Excellent image clarity and superb resolution with UIS2 Optics
UIS2 optics delivers bright, sharp, high-resolution images suitable for all observation methods. Designed with specific wave front aberration controls and specialty coatings for color fidelity UIS2 components ensure images are true in form and details satisfactorily resolved (The BXFM-S works with brightfield and differential interference contrast only.)
Brightfield
DIC
Click here for details about UIS2 objective lenses
Meeting Inspection Needs with Speed and Efficiency
Motorized Revolving Nosepiece
A high speed motorized revolving nosepiece provides instant switchover from one objective to another while decreasing potential sample contamination from an operator . Controlled via a handswitch or PC
Motorized Revolving Nosepiece
Quick Rotation of Objectives
Centering Revolving Nosepiece
U-P6RE
Illumination Systems
Olympus offers a wide choice of external light sources to meet your inspection needs. Choose from standard halogen, mercury, Xenon, or fiber optic systems.
Lamp House Options
Light Sources
Recording and Storage of Digital Images
Olympus is passionate about photography and digital imaging. Our cameras for microscopy continue to deliver breakthrough technology and reliable performance to meet the diverse range of industrial applications. Choose from a wide variety of models which attach to microscopes via a c-mount thread and are fully controlled using the Olympus imaging software.
Click here for the Olympus lineup of digital cameras
Click here for the Olympus lineup of software solutions
Specifications
System Industrial Microscope BXFM-S Specifications
| Optical System | UIS2 Optical System (Infinity-corrected) | ||
| Microscope Frame | Observation Method | BF/DIC/KPO* | |
| Reflected/Transmitted | Reflected | ||
| Illuminator | Compact Reflected Illuminator for BF(BF/DIC/KPO*) | ||
| Illumination System | Reflected Light | 100 W Halogen/Fiber Light Guide | |
| Transmitted Light | - | ||
| Focus | Motorized/Manual | Manual | |
| Stroke | 30 mm | ||
| Resolution/Fine Adjustment Sensitivity | Fine Stroke per Rotation 0.2 mm | ||
| Maximum Specimen Height | - | ||
| Revolving Nosepiece | Motorized Type | Sextuple for BF/DIC | |
| Manual Type | Quintuple for BF Sextuple for BF/DIC Centerable Sextuple for BF/DIC Septipule for BF/DIC |
||
| Stage | Stroke | - | |
| Observation Tube | Widefield (Field Number 22) | Inverted Image | Binocular/Trinocular/Tilting Binocular Observation Tube/Tube lens unit |
| Erect Image | Trinocular/Tilting Binocular Observation Tube/Tube lens unit | ||
| Super Wide Field (Field Number 26.5) | Inverted Image | Trinocular Observation Tube/Tube lens unit | |
| Erect Image | Trinocular/Tilting Trinocular Observation Tube/Tube lens unit | ||
| Option Unit | IR Unit | ||
| Dimensions | 394(W)x334(D)x276(H)mm (in Standard Combination) | ||
| Weight | 6.2 kg (in Standard Combination) | ||
| Remark | *Simple Polarized Light Observation |
