[Important] Preventive Inspection Sheet for Illumination Devices
Study the instruction manual as well before inspection.
- We recommend performing "Preventive Inspections" periodically (every time you replace lamps and at least once every 6 months).
- The table below identifies the check items to be observed. Put (X) if not applicable or (✓) if applicable.
- If there are any check marks (✓) noted, immediately stop use of the product and seek service or replacement for the illumination device(s) for prevention.
- If you detect an abnormality other than that listed below with your illumination device or other Evident product, request inspection from your Evident distributor.
If you have any questions, please contact the following.
| Check items | Check results (Date) |
| 1. More than 8 years have passed since original purchase of the illumination device, or the total using time exceeds 20,000 hours of use. | |
| 2. Lamp does not light sometimes even though the main switch is turned ON. (Only when using the halogen bulb) | |
| 3. Dirt or substances are attached around the main switch. | |
| 4. The light flickers if you move a lamp cable*1 or illumination devices. | |
| 5. Lamp cable*1 is unusually hot to the touch. | |
| 6. Burning or smoke odor. | |
| 7. The light still flickers even though the lamp is replaced (Only when using the halogen bulb) | |
| 8. Signs of deformation, backlash, or looseness, etc. when you assemble/disassemble the illumination device. (I.e. it is hard to open/ close the lid during lamp-replacement.) | |
| 9. Lamp connection terminals*2 have become discolored or tarnished, or the colors of the right and left terminals*3 are different. (Only when using the halogen bulb) | |
| 10. Lamp cables*1 or wiring parts have become deformed, cracked or tarnished in any way. | |
| 11. Frequent repairs to similar devices put into use at the same time as the unit being checked. |
* If the spaces are not enough for check, copy this sheet.
*1 Discharge burners: Mercury burner / Xenon burner / Metal halide burner
*2 Example of a lamp cable. (Other models may not be shown here.)
Americas
Patrick McGlone
Director, OSSA Technical Services
Evident(formerly Olympus Scientific Solutions Americas)
3500 Corporate Parkway
Center Valley, PA 18034
Tel: (1) 484-896-5255
Director, OSSA Technical Services
Evident(formerly Olympus Scientific Solutions Americas)
3500 Corporate Parkway
Center Valley, PA 18034
Tel: (1) 484-896-5255
Europe
Middle East
Africa
Middle East
Africa
People's Republic of China
EVIDENT (China) Co.,LTD.Shanghai Branch
10F,K.W Center,1010 Huaihai Rd (M),Xuhui District,
Shanghai,200031,China
Scientific Solutions Business Division
Quality & Regulatory Affairs Dept.
Tel: (86)21-5170-6024
Fax:(86)21-5170-6236
E-mail: Changyi.Li@evidentscientific.com
10F,K.W Center,1010 Huaihai Rd (M),Xuhui District,
Shanghai,200031,China
Scientific Solutions Business Division
Quality & Regulatory Affairs Dept.
Tel: (86)21-5170-6024
Fax:(86)21-5170-6236
E-mail: Changyi.Li@evidentscientific.com
Japan
Other Asia,Oceania
Please contact your nearest sales representative for Evident microscopes.

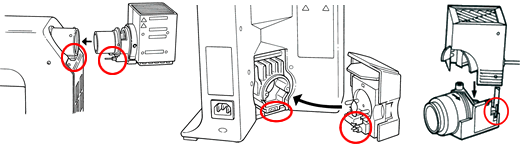

*3 Example of connection terminals. (Other models may not be shown here.)

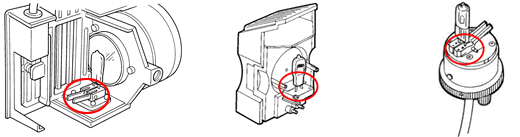

*4 Example of a lamp installation terminal. (Other models may not be shown here.)
