Hematology

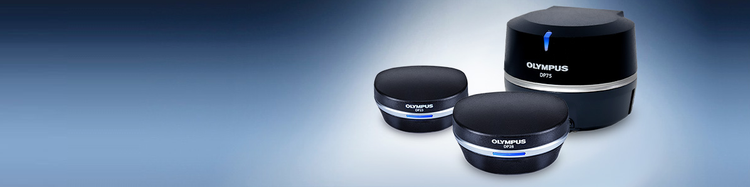

DP75

DP28

DP23

Pixel size (μm)

3.45 x 3.45 µm

3.45 x 3.45 µm

2.4 × 2.4 μm

Number of pixels (MP)

49.1

8.9

6.4

Image Sensor

1.1 inch 12.37 megapixel color CMOS image sensor, global shutter

1 in. color CMOS

1/1.8 inch Color CMOS

Frame rate (fps)

at max resolution

*1 Max. 22 fps at 4096 × 3000 (Full Resolution)
Max. 22 fps at 2048 × 1500 (2 × 2)
Max. 44 fps at 2048 × 1500 (1 × 1)
Max. 60 fps at 1920 × 1080 (1 × 1, Full HD)

Max.32 fps at 4104 × 2174 (Full Resolution)
Max.33 fps at 3840 × 2160 (4K)
Max.33 fps at 2168 × 2168 (Square)
Max.64 fps at 1920 × 1080 (Full HD) *1

Max.45 fps at 3088 × 2076 (Full Resolution)
Max.58 fps at 2072 × 2072 (Square)
Max.60 fps at 1920 × 1080 (Full HD) *1

Connector

USB 3.1 Gen2 (Type-A)

USB 3.1 Gen1 *2

USB 3.1 Gen1 *2

Color

• Color

• Color

• Color

観察方法 ?

明視野観察

蛍光観察

近赤外蛍光観察

明視野観察

蛍光観察

明視野観察

蛍光観察

Remark

※1 フレームレートは、お使いのPC、モニターの解像度、および／またはソフ トウェアの条件に応じて減少することがあります。
※6 USB3.1 Gen1（5Gbps）でもご使用いただけますが、フレームレート性能が低下します。

Focus Peaking manual focus assist
OSIA - Olympus Smart Image Averaging (active noise reduction)
*USB 3.1 Gen1 is compatible with USB 3.0

Focus Peaking manual focus assist
OSIA - Olympus Smart Image Averaging (active noise reduction)
​*USB 3.1 Gen1 is compatible with USB 3.0

見積もりのお申し込み

DP75

DP28

DP23

Observation Method

Flourescence

Fluorescence

Cameras must have good sensitivity and low noise because strong excitation light can damage the sample. Although the signal yield is determined by simple physics (i.e., sensitivity × number of photons), some cameras, like the DP74, have a dedicated feature to shorten and simplify the fluorescence imaging process.

Brightfield

Brightfield

Accurate color reproduction is essential. Since modern microscope illumination is very bright, it’s rare to struggle with noise in brightfield images.

Phase Contrast/DIC

Phase Contrast/DIC

For phase contrast or differential interference contrast (DIC), the DP22 and DP27 have a color mode dedicated to imaging cultured cells.

Polarization

Polarization

Many cameras designed for brightfield observation also work well for polarization due to their accurate color reproduction, such as the DP27 and SC50.

Darkfield

Darkfield

Darkfield is the second darkest microscope observation method, so cameras with high sensitivity and low noise are essential. Many of our cameras, including the DP74, UC90, and SC50, feature special noise reduction image processing for excellent darkfield images.
