SZX7 Stereo Microscope
The SZX7 stereo microscope’s Galilean optical system offers excellent image quality, especially when using a digital microscope camera. The microscope is suited for a wide range of imaging applications in life science, materials science, production, and QC inspection, offering high color fidelity optics, a 7:1 zoom ratio, and a universal LED stand.
SZX7 Stereo Microscope
The SZX7 stereo microscope features a 7:1 zoom ratio, includes built-in electrostatic discharge protection, and uses an advanced Galilean optical system for brilliant, highly resolved images. Ergonomic features include easily accessible microscope controls and adjustable observation tubes for comfortable viewing at an affordable price.
Experience Optical Excellence

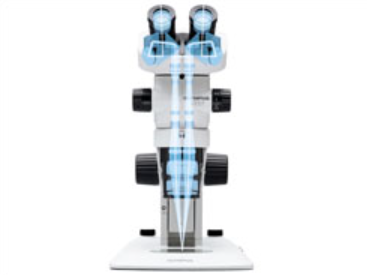

Galilean Optical System Diagram
Galilean Optical System
The Galilean optical system (0.8x–5.6x zoom range) combines with the improved coatings and large numerical aperture in our distortion-free objective lens series to provide an optimal image for your sample at any appropriate magnification.

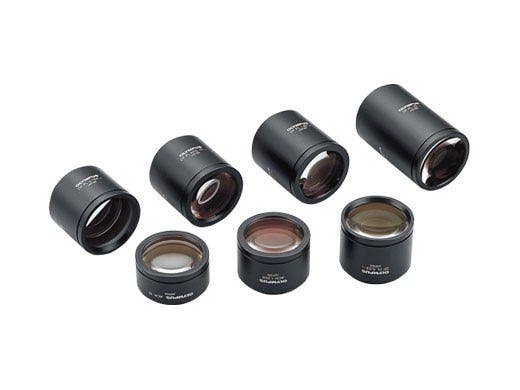

Lineup of Objective Lenses
Choose from Eight Interchangeable Objectives
DFPL2X / DPFL1.5X / DFPL0.75X / DFPL0.5X
The DFPL series accurately reproduces sample shapes with outstanding color fidelity.
DFPLAPO1.25X / DFPLAPO1X-4
Apochromatically corrected to achieve a high degree of performance. Excellent resolving power, contrast, and image flatness with minimal distortion.
SZX-ACH1.25X / SZX-ACH1X
Well-balanced objectives that combine high resolving power with a long working distance.
Versatile Illumination Solutions
LED Illumination: Combined Reflected and Transmitted Light Stand
Ultra-thin LED stands are energy efficient and provide long-lasting illumination.
LED Illumination Stand
Space-Saving Illuminator
This specially designed fiber optic light source can mount directly onto the stand for a clean and tidy workspace. Available with single or double interlock and ring light guides, this system provides bright and long-lasting illumination.
Dual Interlock Light Guide Illuminator
LED Illumination Stand
Coaxial Reflected Illumination System
Used with the dual flexible light guide, this illuminator provides bright, even lighting without the need for centering adjustments to the lamp.
Coaxial Reflected Light Illuminator
LED Illumination Stand
White LED Illuminator System
Our long-lasting ring light illuminator with minimal thermal effect and high brightness is ideal for homogeneous lighting.
White LED Ring Light
*This model may vary by geographic region.
LED Illumination Stand
Ergonomics
Work Comfortably and Productively
Ergonomic Instruments Enable Natural Posture, Reduced Stress, and Increased Productivity
The ergonomic long tilting trinocular provides an optimized work position by bringing the microscope closer to the user, while the extendable eyepoint adjuster provides flexibility for users of different heights. The SZX2 series’ ergonomic instruments reduce stress during observation by providing the most comfortable position for each user, increasing work efficiency.
Ergonomic Design Based on 3D CAD Analysis
The microscope body and stand feature precisely curved contours developed through careful 3D computer aided design (CAD) analysis. Key ergonomic features help reduce fatigue during periods of long observation and feel smooth and comfortable to the touch.
Convenient Front-Access Operation
The most frequently used knobs and switches are easily accessible to maximize operator comfort and reduce back strain.
Precise Recall of Specific Magnification Settings
Many inspection tasks require using the same zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function. The zoom knob stopper enables the user to accurately choose their desired magnification, and the setting in use is clearly displayed on the front control panel.
Eyepieces That Reduce Fatigue and Exclude Dust
The eyepieces feature a pupillary aberration control mechanism, keeping the image visible even if the operator’s eyes move. This lessens operator fatigue during long observations. The unique eyepiece mounting design excludes dust particles and keeps the eyepiece firmly in place, enabling clear images and an ergonomic eyepiece position.
Electrostatic Discharge (ESD) Safe Design
All microscope bodies and accessories are ESD-safe and can discharge static electricity from 1000 V down to 100 V in less than 0.2 seconds, helping to protect the equipment and prevent sample damage.
Digital Imaging and Documentation
Universal Stand and Digital Imaging
Combination of SZ2-ST
Curved ultra-slim stand with contoured base plates provides easy sample access while reducing stress and strain on your hands and arms.
For inspecting or assembling large samples, Evident offers a variety of adjustable and ESD safe boom stands. Large platform stands are also available and, if required, can accommodate 400 mm and 600 mm auxiliary posts.
SZ2-STU2: The arm's angle and length can freely be adjusted.
SZ2-STU3: The stand is clamped on the side of a desk for assembly and inspection lines.
Combination of SZ2-STU2
Combination of SZ2-STU3
Record and Store Digital Images
Evident offers a full line of digital cameras that adapt to the SZX7. They are available as a standalone or PC-controllable system. Software packages vary from simple image capture to measurement, report generation, and database archiving.
> See Digital Cameras
> See Life Science Software
> See Materials Science Software
All-in-Focus Imaging Made Simple
Reconstructing an all-in-focus image is simple in our software. Manually acquire images from the Live EFI (extended focus imaging) function to obtain fully focused views of thick, rough, or uneven samples.
- cellSens™ software: Capture sharp images of thick biological specimens, such as insects, plants, or tissue samples.
- PRECiV™ software: Acquire sharp images of wire bonding, electronic part defects, and large parts with rough surfaces.
Flexible Workflows from QC Inspection to Failure Analysis
PRECiV software offers a flexible workflow solution for QC inspection, materials analysis, and failure analysis. Pair it with the SZX7 and a digital camera to seamlessly acquire images, process them, and make 2D measurements. Advanced imaging and analysis functions include panoramic views, extended focus images, and particle analysis.
Zoom into Efficiency
To speed up QC inspection or failure analysis work, combine the SZX7 with our SZX2-ZMS zoom magnification sensor. It automatically records the zoom magnification in your PRECiV software, enabling the correct 2D geometric measurements without the need to manually enter the magnification. From imaging to reporting, all dimensions are under control. Now you can zoom in and measure the details faster, adding confidence and efficiency to your inspections.
Specifications
| Optical System | Galilean Optical System | ||||
| Total Magnification | 4.0x–336x*1 | ||||
| Zoom Body | Zoom Ratio | 7 (0.8x–5.6x) | |||
| Zoom Magnification Sensor |
Optional SZX2-ZMS records the zoom magnification in PRECiV v. 2.2.1 or later Output connector: USB 2.0: USB Type-C® USB cable: USB 2.0: USB Type-A to USB Type-C; cable length: 2 m (6.56 ft) Weight: 0.4 kg (0.9 lb) |
||||
| AS | Option | ||||
| Observation Tube | Binocular/trinocular/tilting trinocular observation tube | ||||
| Extendable Eyepoint Adjuster | SZX2-EEPA | ||||
| Focus | Stand | ||||
| Objective Lens | Type | NA | WD | Total Magnification*2 *3 | Field Diameter of View (mm)*2 *3 |
| 0.5X | Plan achromat | 0.05 | 171 | 4x–28x | Ø55–Ø7.9 |
| 0.75X | Plan achromat | 0.075 | 116 | 6x–42x | Ø36.7–Ø5.2 |
| 1X | Plan apochromat | 0.1 | 81 | 8x–56x | Ø27.5–Ø3.9 |
| Achromat | 0.1 | 90 | 8x–56x | Ø27.5–Ø3.9 | |
| 1.25X | Plan apochromat | 0.125 | 60 | 10x–70x | Ø22–Ø3.1 |
| Achromat | 0.125 | 68 | 10x–70x | Ø22–Ø3.1 | |
| 1.5X | Plan achromat | 0.15 | 45.5 | 12x–84x | Ø18.3–Ø2.6 |
| 2X | Plan achromat | 0.2 | 33.5 | 16x–112x | Ø13.8–Ø2.0 |
| Dimensions (W × D × H) | 194 mm × 253 mm × 403 mm (7.64 in. × 9.96 in. × 15.87 in.) | ||||
| Weight | 4.5 kg (9.9 lb) in the standard configuration | ||||
| Remark |
*1 Total magnification range possible by combining an objective lens and eyepiece *2 When using a 10X eyepiece *3 SZX2-LTTR: intermediate magnification is 1.25X |
||||
