Headlamp Lens Waviness Measurement Using a Laser Microscope

Headlamp

Application

The laws of individual countries define the areas that automotive headlamps can and cannot illuminate. For this reason, headlamp lenses must provide a high level of accuracy in the distribution of light.
Accurate measurement of the waviness of the inside lens surface can verify if the proper light distribution has been achieved.

The Olympus solution

Measurement using the Olympus LEXT OLS5000 3D laser scanning confocal microscope

Features of the product

(1) The OLS5000 microscope measures the state of waviness by using a plane. Color images, laser images, and 3D profile data can all be obtained at the same time, expanding the range of analysis.

(2) Using the stitching mode, wide-area data can be easily obtained.

Images

Waviness measurement for an area of 2,120 × 1,196 µm

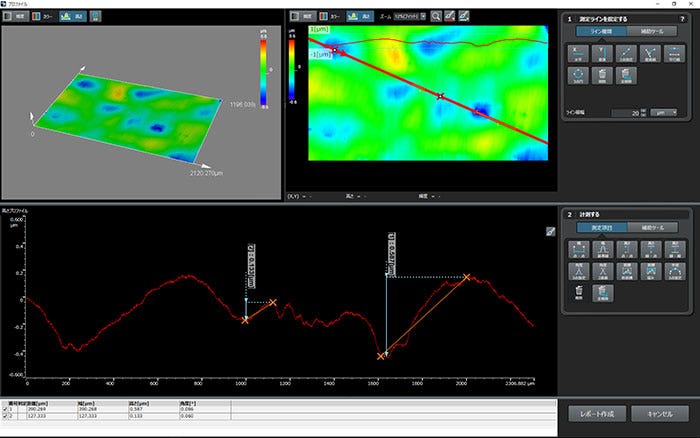

Profile measurement for an area of 2,120 × 1,196 µm
